Charging System: Testing and Inspection

Diode Check:

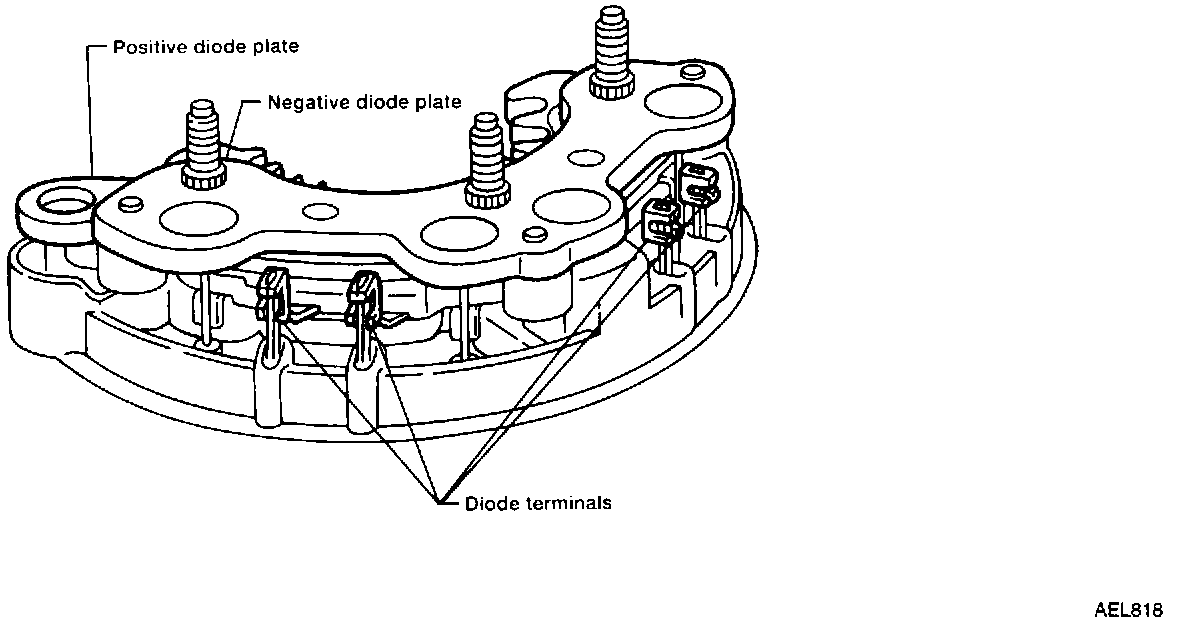

Main Diodes
^ In order to check diodes, they must be unsoldered from the Stator.

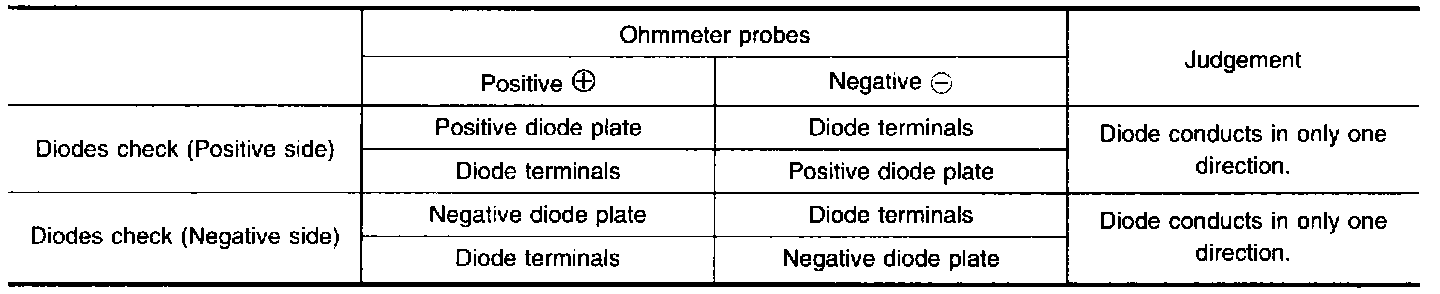

^ Use an Ohmmeter to check condition of diodes as indicated in chart.
^ If any of the test results are not satisfactory, replace diode assembly.
