LR180-741H

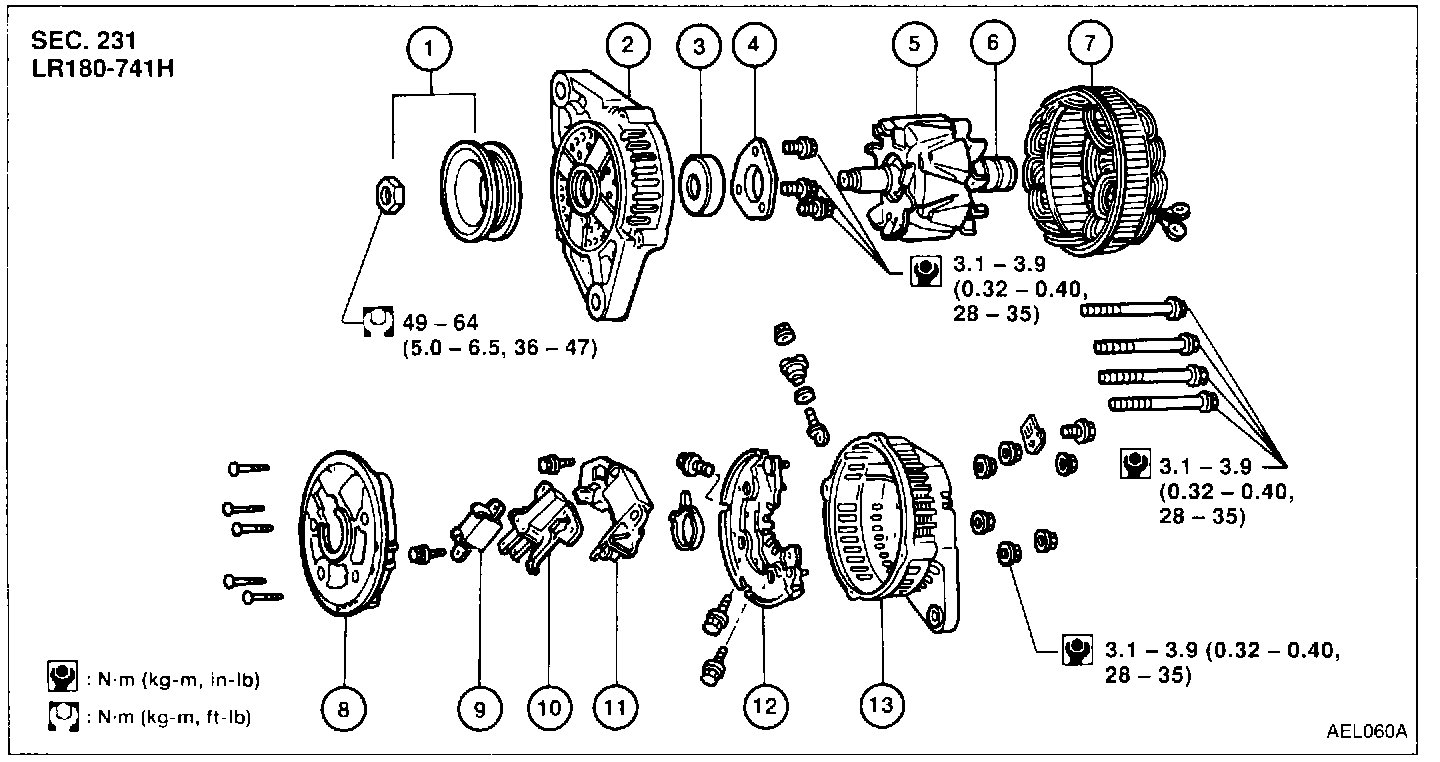

Generator Exploded View LR180-741H:

1 Pulley assembly
2 Front cover
3 Front bearing
4 Retainer
5 Rotor
6 Slip ring
7 Stator
8 Fan guide
9 Condenser
10 Brush assembly
11 IC regulator assembly
12 Diode assembly
13 Rear cover
