Specific Gravity Check

Specific Gravity Check:

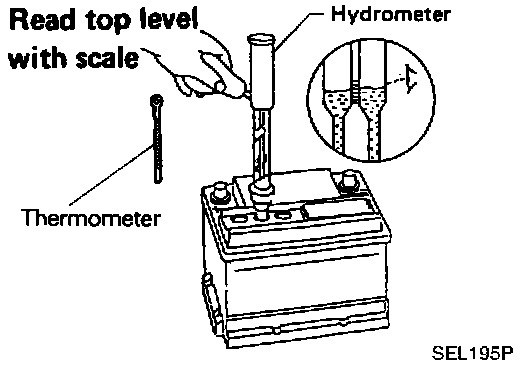

^ Read hydrometer and thermometer readings at eye level.

Specific Gravity Check:

^ When electrolyte level is too low tilt battery case for easy measurement.

Hydrometer Temperature Correction:

Hydrometer Temperature Correction:

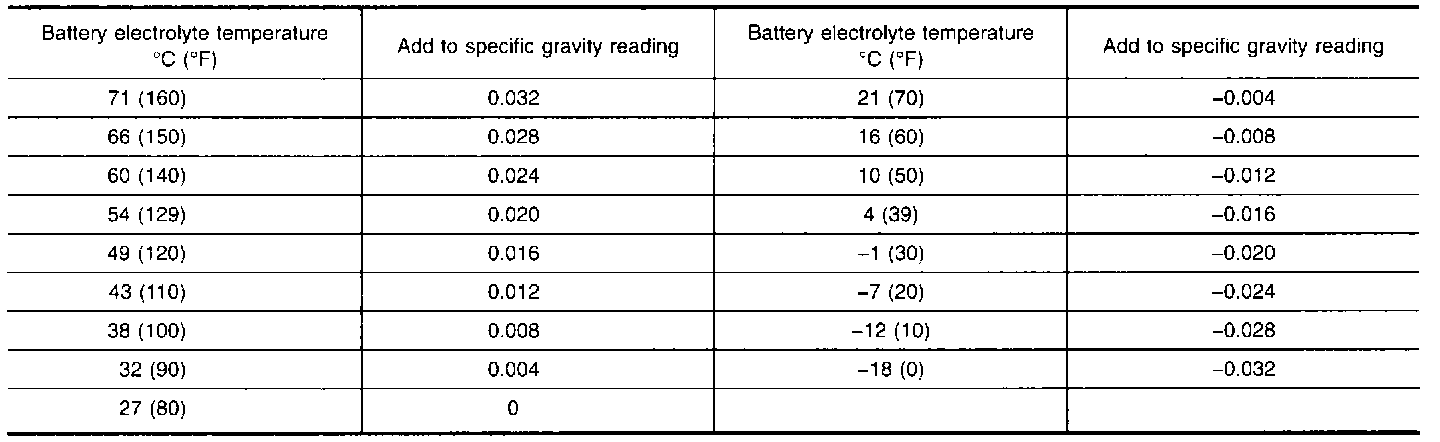

^ Use the chart to correct your hydrometer reading according to electrolyte temperature.
HYDROMETER TEMPERATURE CORRECTION

Specific Gravity Check:

SPECIFIC GRAVITY CHECK
