Procedure 7



DIAGNOSTIC PROCEDURE 7 with CONSULT)

Inspecting SRS intermittent problem by using CONSULT - Diagnosis mode

1. Turn ignition switch "OFF".

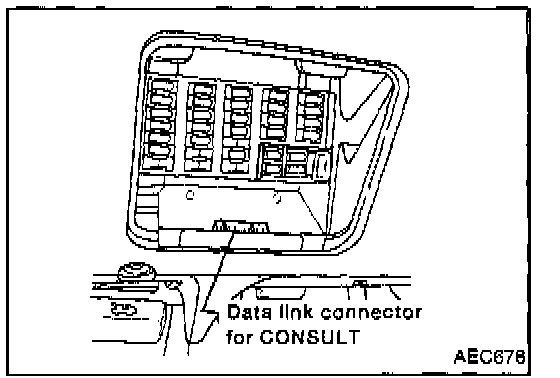

2. Connect "CONSULT" to Data link connector.

3. Turn ignition switch "ON".

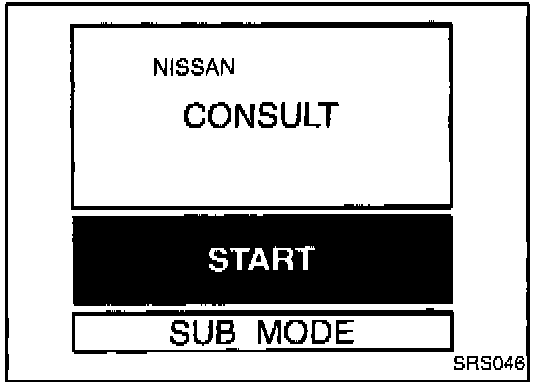

4. Touch "START".

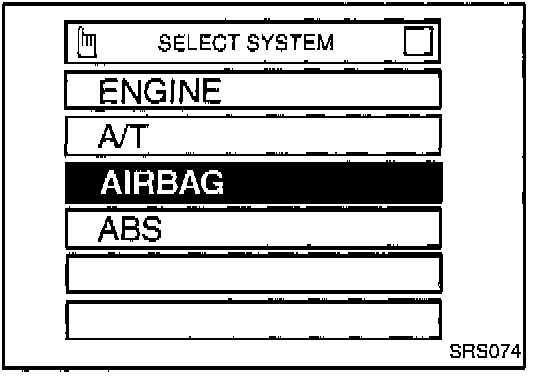

5. Touch "AIRBAG".

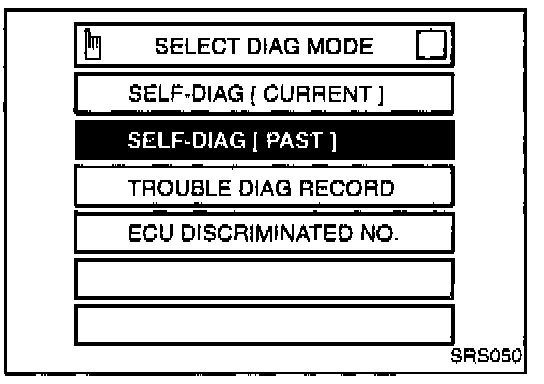

6. Touch "SELF-DIAG [PAST]".

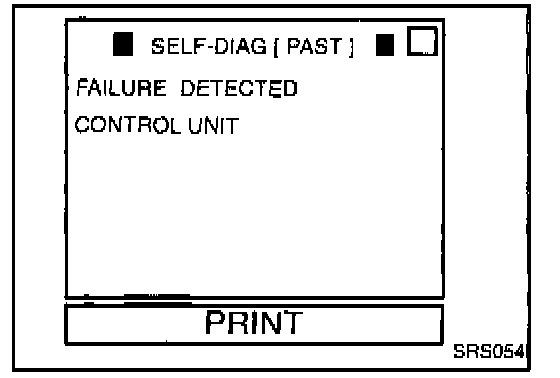

7. If diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step 10.

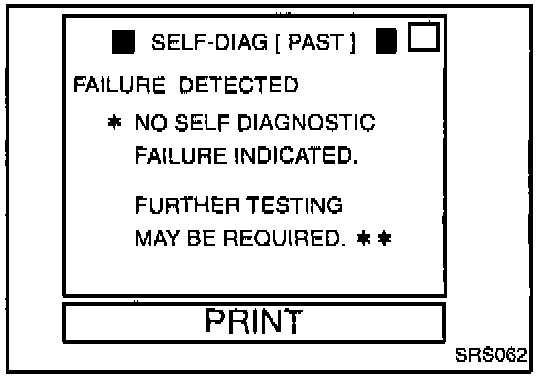

If no self-diagnostic failure is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".

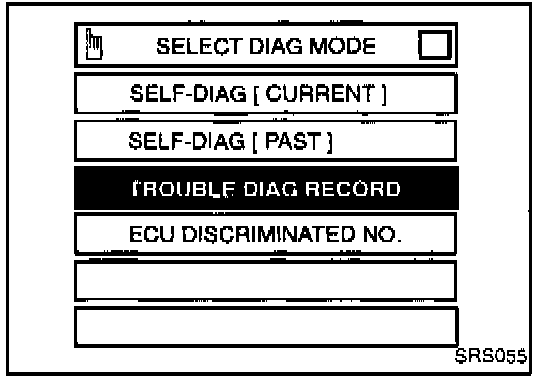

8. Touch "TROUBLE DIAG RECORD".

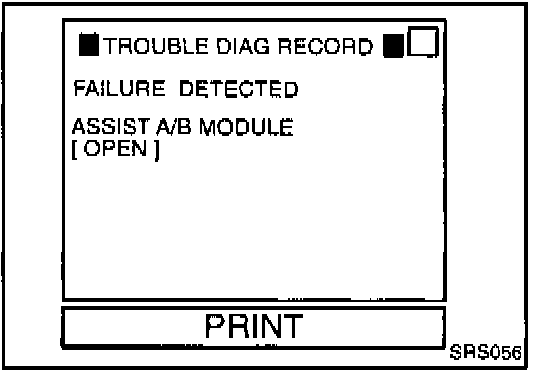

9. Diagnostic code is displayed on "TROUBLE DIAG RECORD".






10. Touch "PRINT".

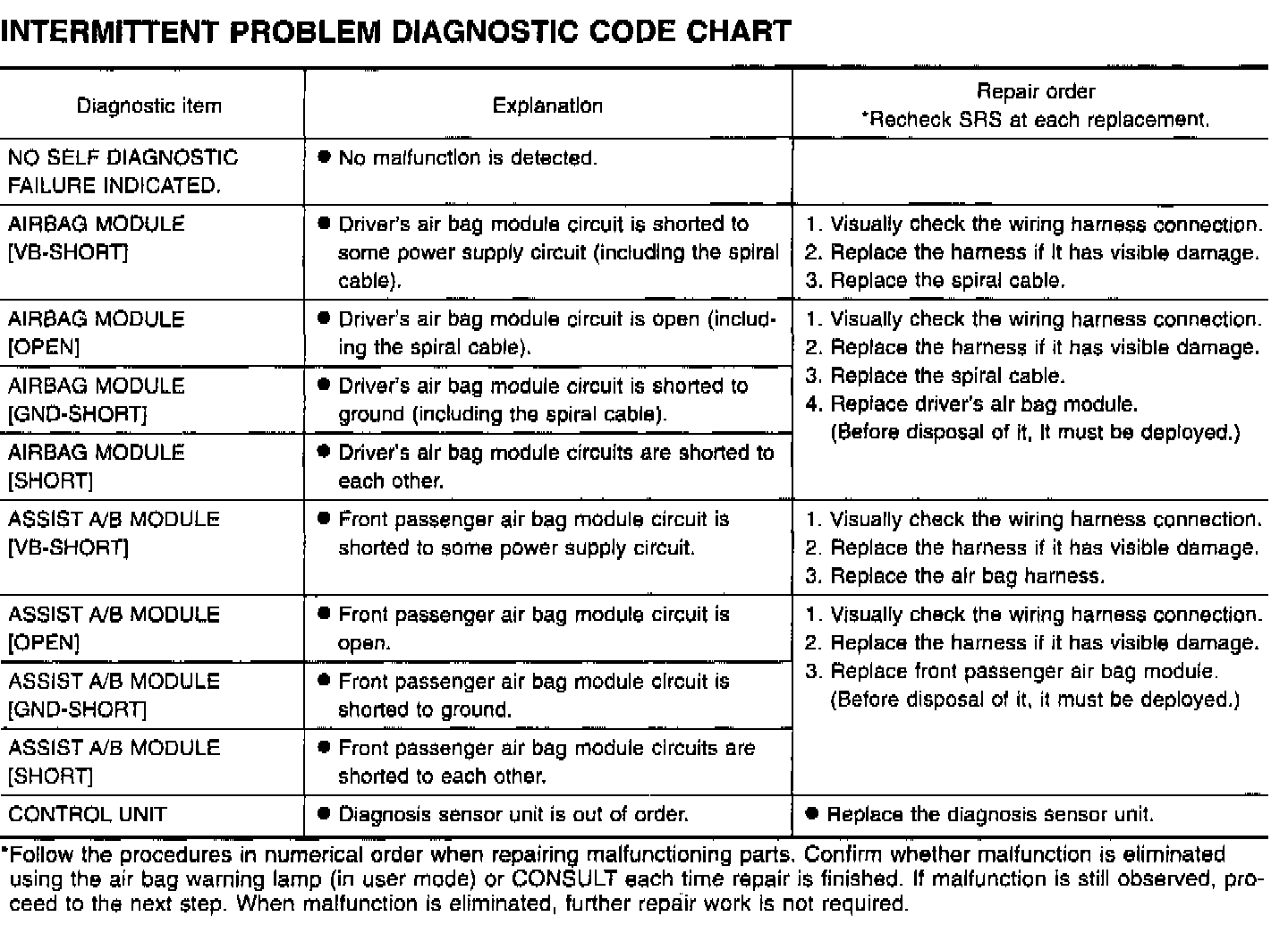

11. Compare diagnostic codes to the INTERMITTENT PROBLEM DIAGNOSTIC CODE CHART.

12. Touch "BACK" key of CONSULT until SELECT SYSTEM MODE appears, then turn off CONSULT.

13. Turn ignition switch "OFF", then disconnect CONSULT and both battery cables.

14. Repair the system as outlined by the "Repair order" in Intermittent Problem Diagnostic Code Chart, that corresponds to the problem code.
