Procedure 5

DIAGNOSTIC PR6CEDURE 5 (without CONSULT)

Final checking after repairing SRS by using "AIR BAG" warning lamp - Diagnosis mode and User mode

1. After repairing SRS connect both battery cables.





2. Open driver's door.
3. Turn ignition switch from "OFF" to "ON".

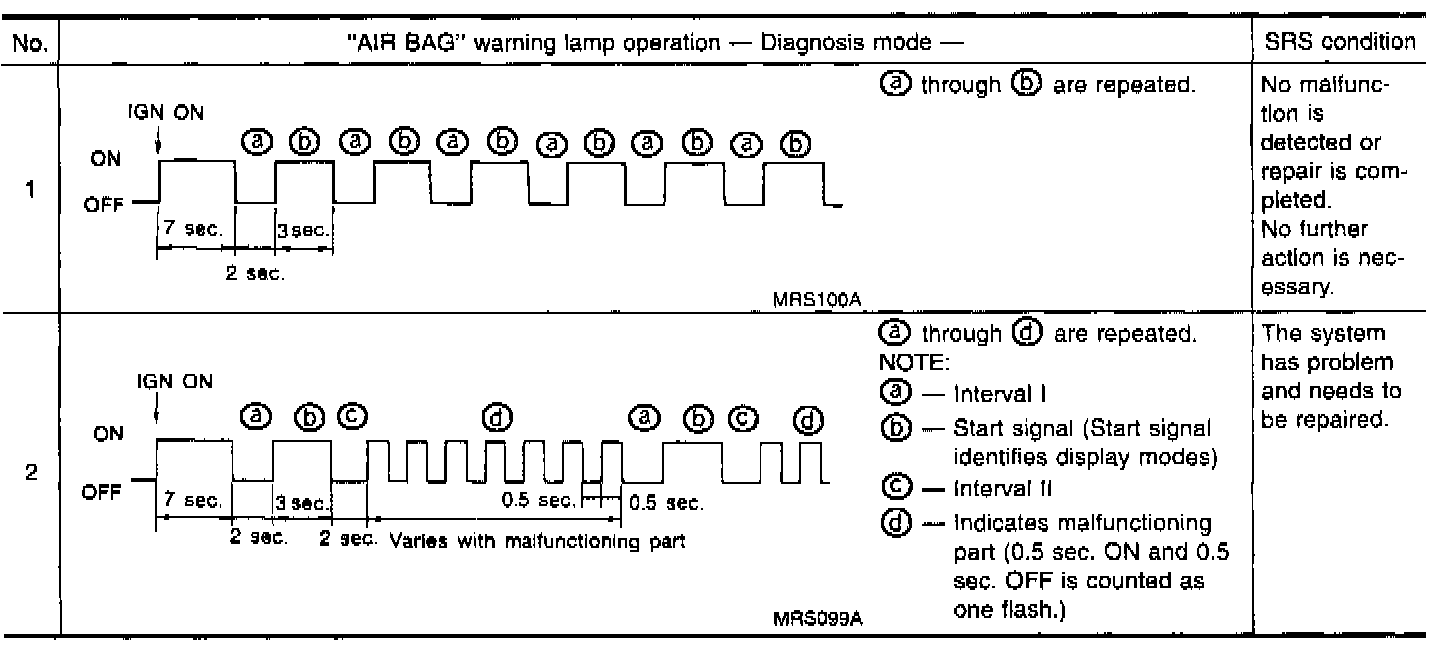

4. "AIR BAG" warning lamp operates in diagnostic mode as follows:





5. If "AIR BAG" warning lamp operates as shown in No.1 in the chart above, turn ignition switch "OFF" to reset from Diagnosis mode to User mode. If "AIR BAG" warning lamp operates as in No.2 in chart above, the malfunctioning part is not repaired completely, or another malfunctioning part is detected. Repair malfunctioning part completely.

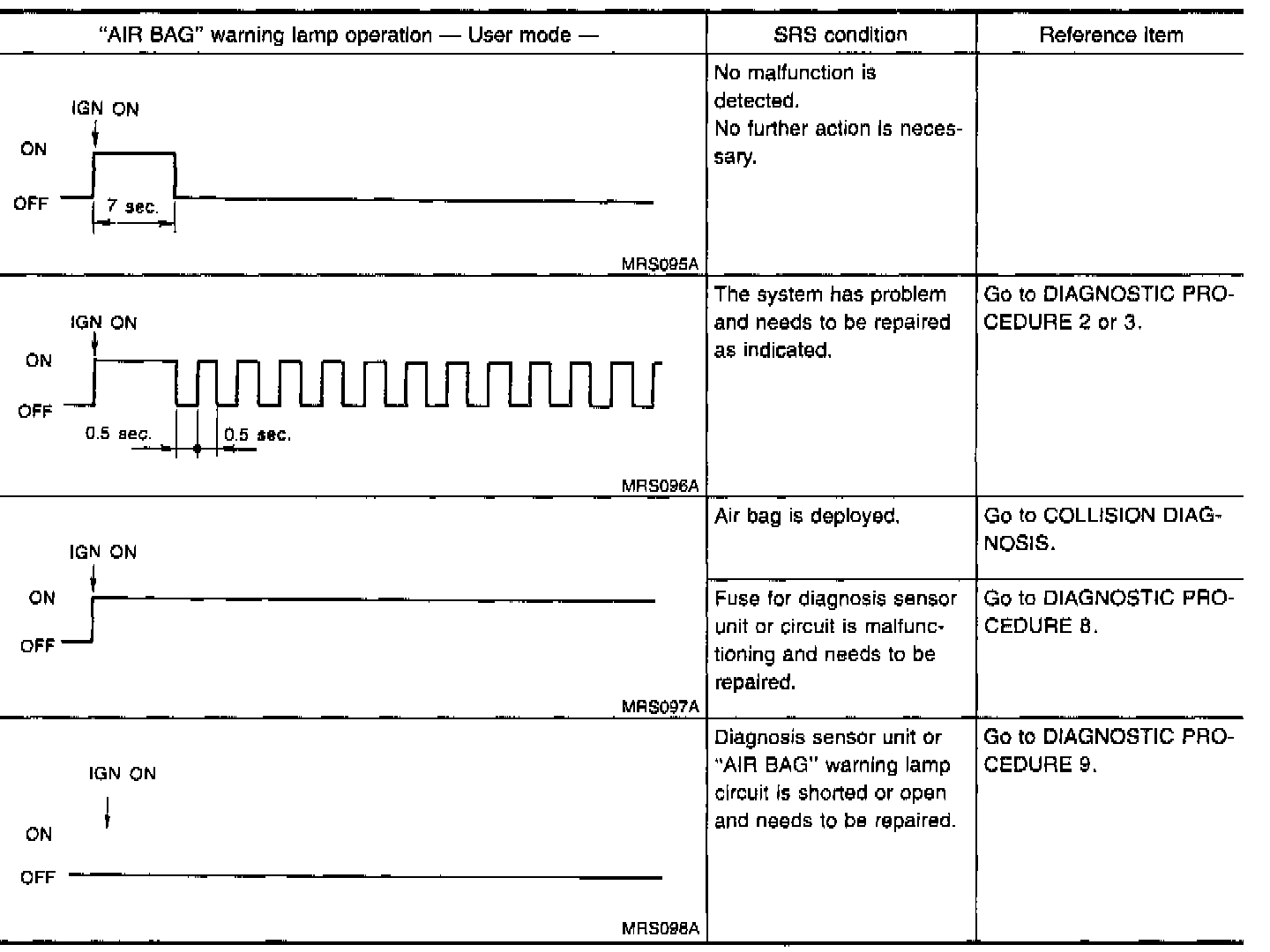

6. "AIR BAG" warning lamp operates in User mode. Compare "AIR BAG" warning lamp operation 10 the chart below.

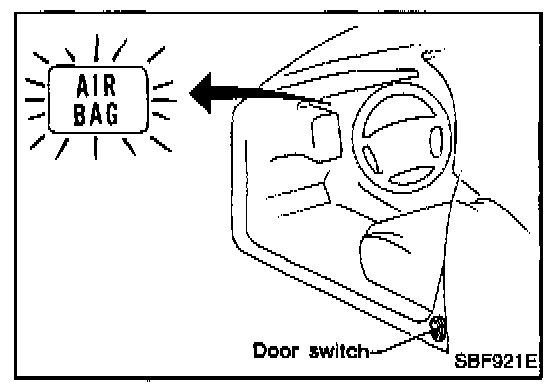

NOTE: Turn ignition switch from "OFF" to "ON", and press driver's door switch at least 5 times within 7 seconds after turning ignition switch "ON". SRS is now in User mode.
