Procedure 2

DIAGNOSTIC PROCEDURE 2 (with CONSULT)

Inspecting SRS malfunctioning parts by using CONSULT - Diagnosis mode
1. Turn ignition switch "OFF".

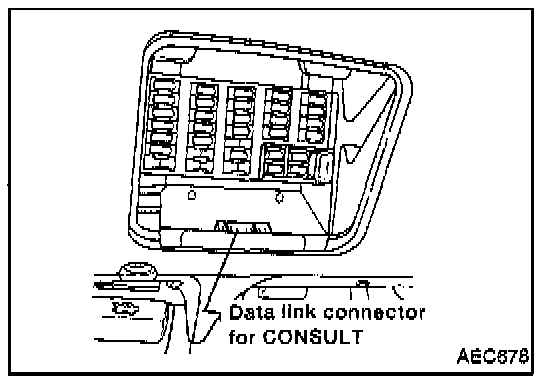

2. Connect "CONSULT" to Data link connector.
3. Turn ignition switch "ON".

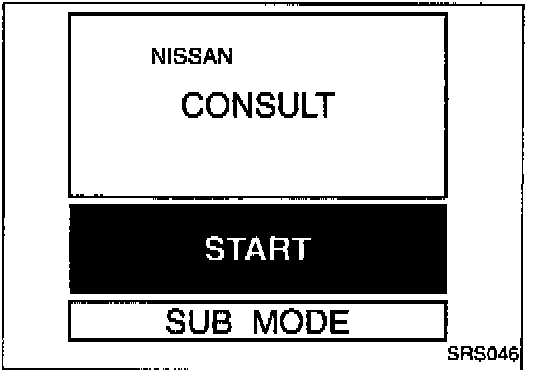

4. Touch "START".

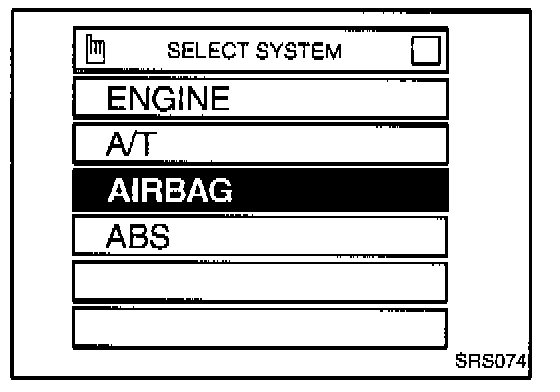

5. Touch "AIRBAG".

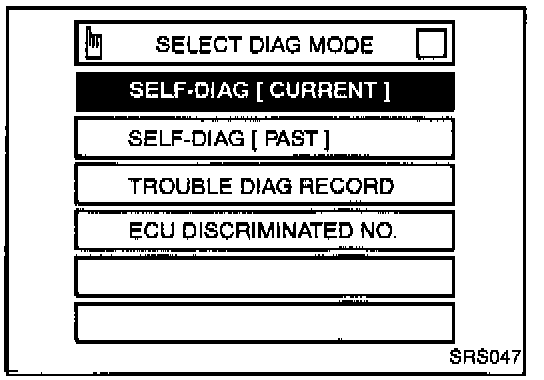

6. Touch "SELF-DIAG [CURRENT]".

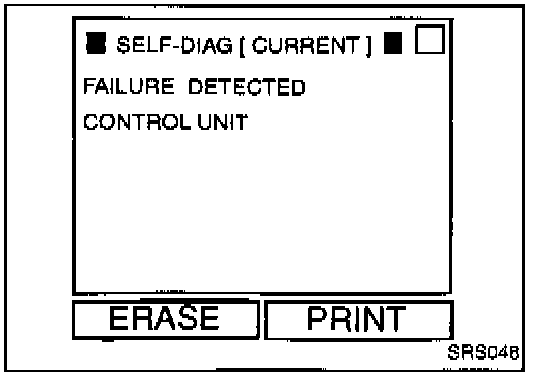

7. Diagnostic codes are displayed on "SELF-DIAG [CURRENT]".

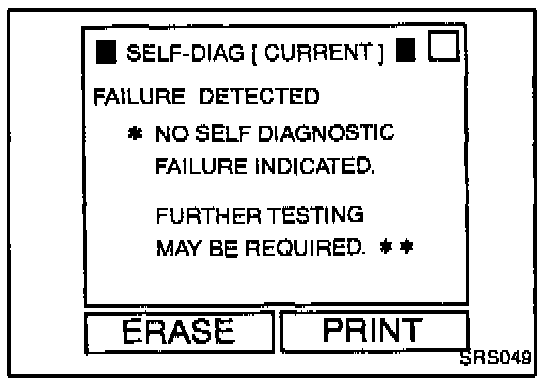

If no self-diagnostic failure is detected on "SELF-DIAG [CURRENT]" but malfunction is indicated by the "AIR BAG" warning lamp, go to DIAGNOSTIC PROCEDURE 6 Procedure 6





8. Touch "PRINT".
9. Compare diagnostic codes to the CONSULT DIAGNOSTIC CODE CHART.
10. Touch "BACK" key of CONSULT until SELECT SYSTEM MODE appears, then turn off CONSULT
11. Turn ignition switch "OFF", then disconnect CONSULT and both battery cables.
12. Repair the system as outlined by the "Repair order" in CONSULT DIAGNOSTIC CODE CHART that corresponds to the problem code.
13. After repairing the system, go to DIAGNOSTIC PROCEDURE 4 Procedure 4
