Procedure 1

DIAGNOSTIC PROCEDURE 1 (without CONSULT)

Checking SRS operation by using "AIR BAG" warning lamp - User mode

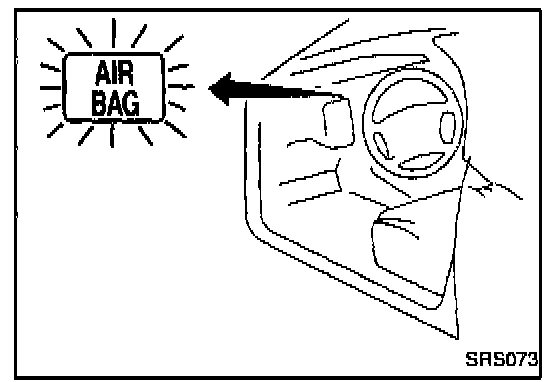

1. After turning ignition switch from "OFF" to "ON", "AIR BAG" warning lamp operates.

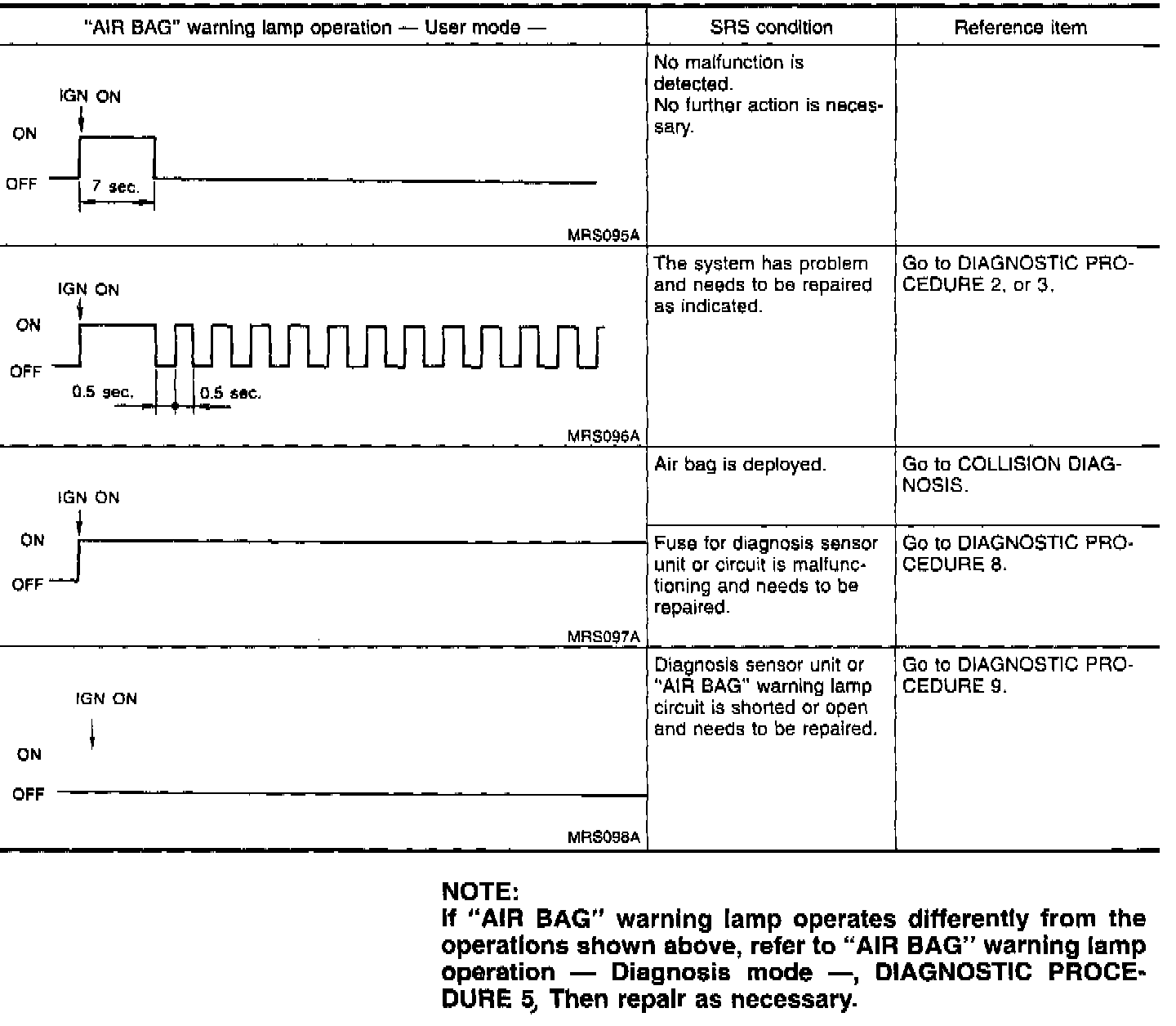

2. Compare "AIR BAG" warning lamp operation to the chart below





NOTE: If "AIR BAG" warning lamp operates differently from the operations shown above, refer to "AIR BAG" warning lamp operation - Diagnosis mode -, DIAGNOSTIC PROCEDURE 5 and repair as necessary Procedure 5
