Home >> Nissan-Datsun >> 1996 >> 200SX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Speedometer Module >> Diagrams >> Electrical Diagrams >> Without Tachometer

Without Tachometer

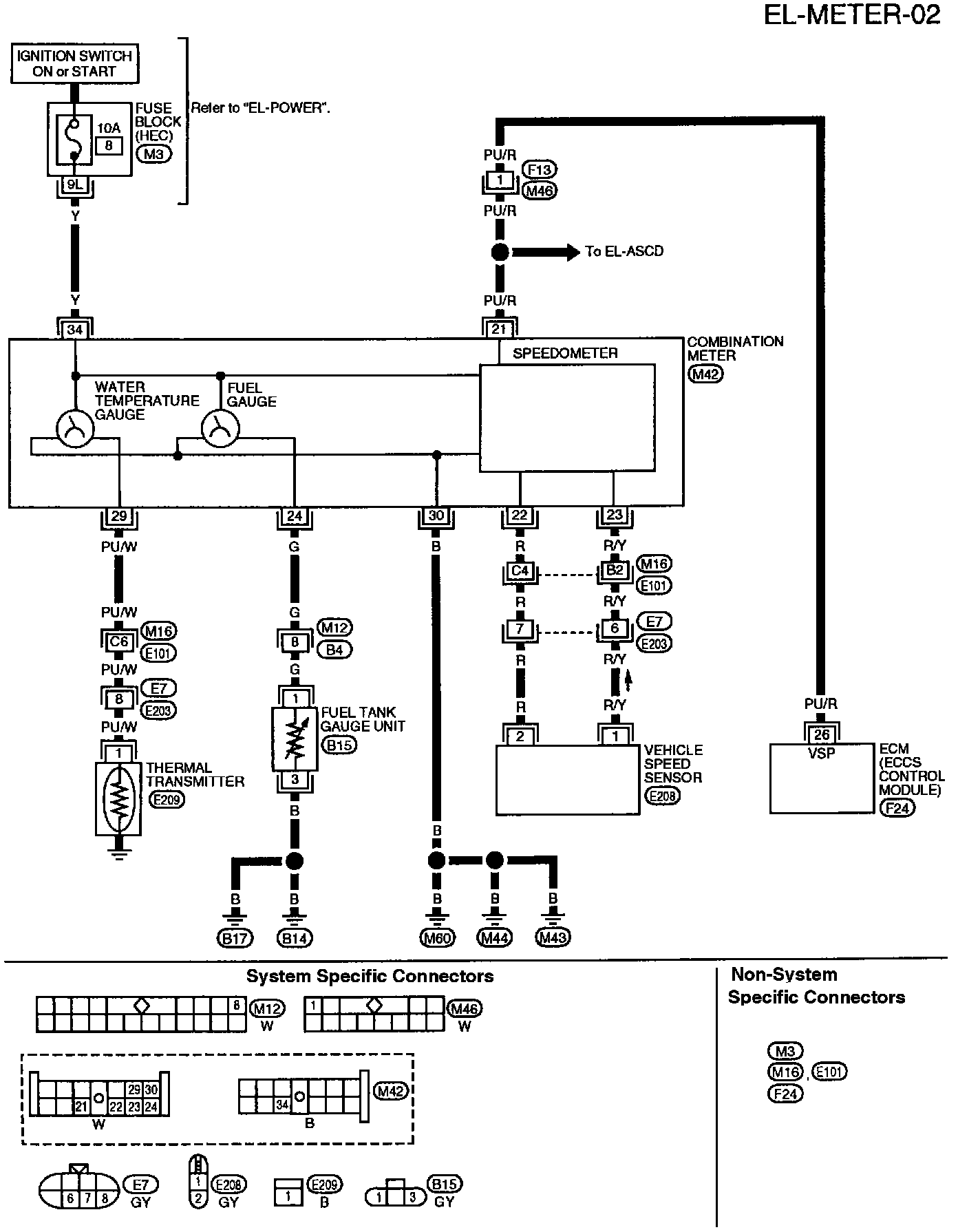

EL-METER-02 Speedometer, Tachometer, Temp. And Fuel Gauges:
