Ignition Control Module: Locations

Main Harness (Part 1 Of 2):

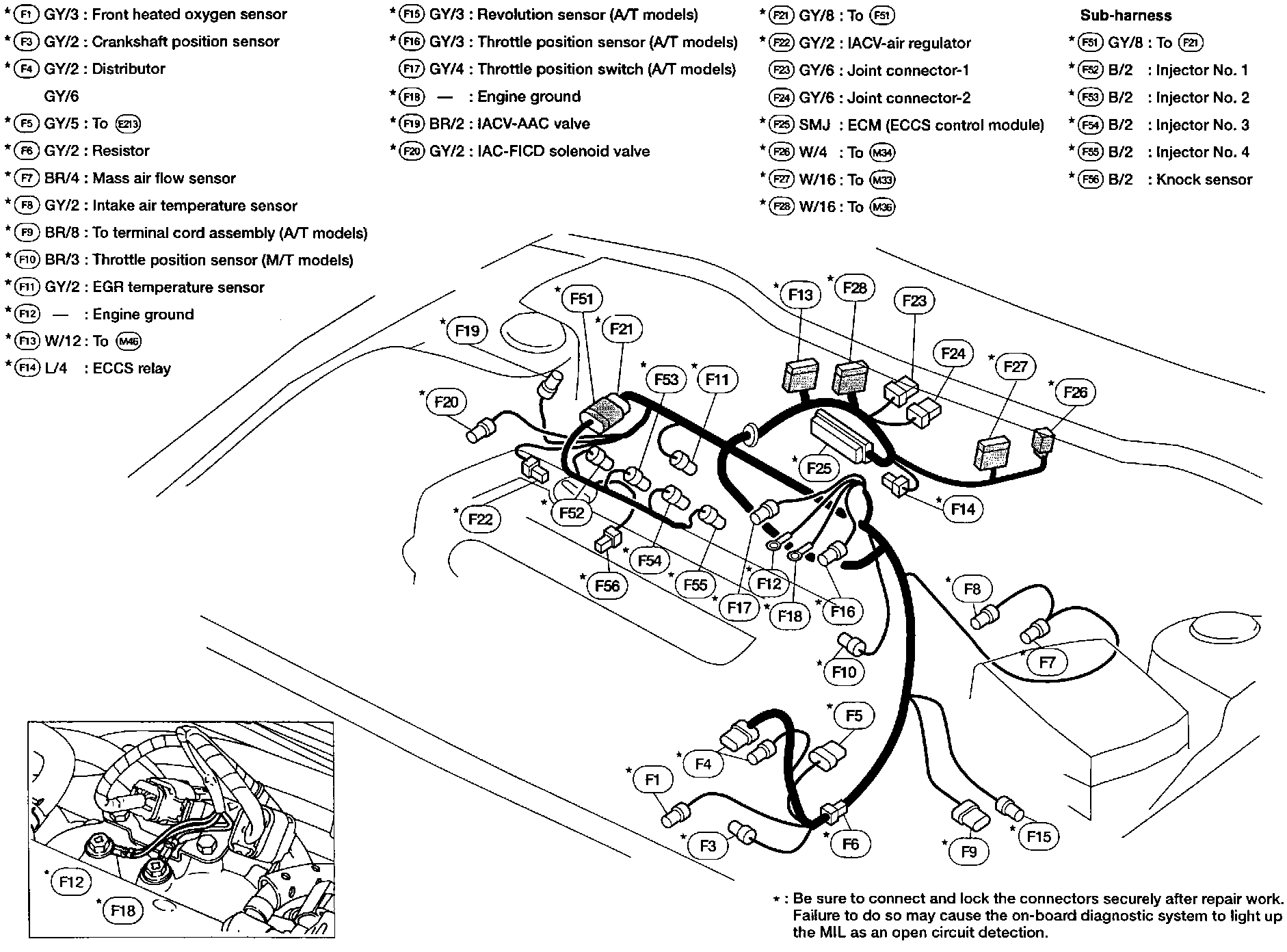

Engine Control Harness:

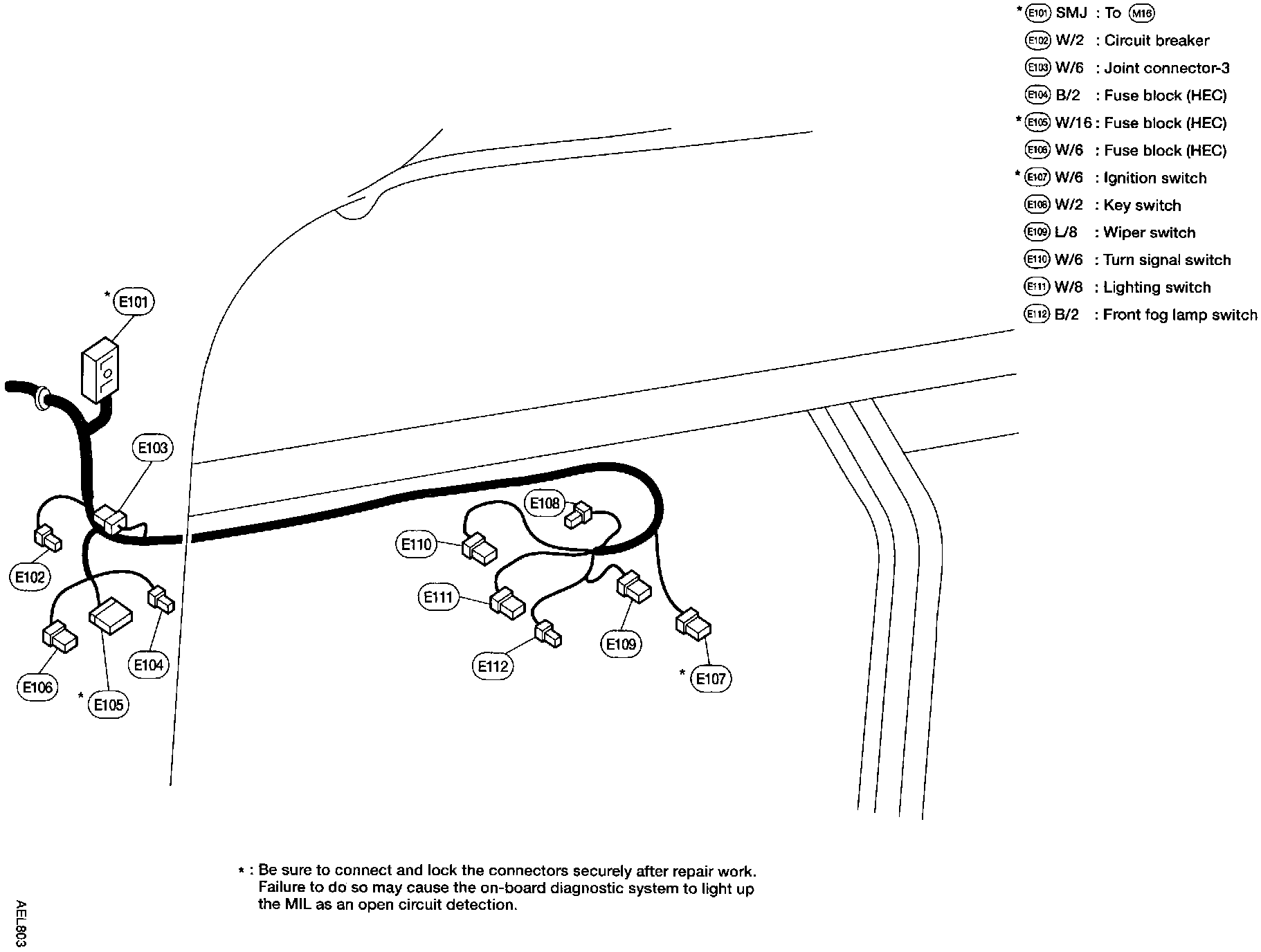

Engine Room Harness Passenger Compartment:
