Nissan-Datsun
>>
1996
>>
200SX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Locations
>>
Engine Room Harness
>>
Engine Compartment
Engine Compartment

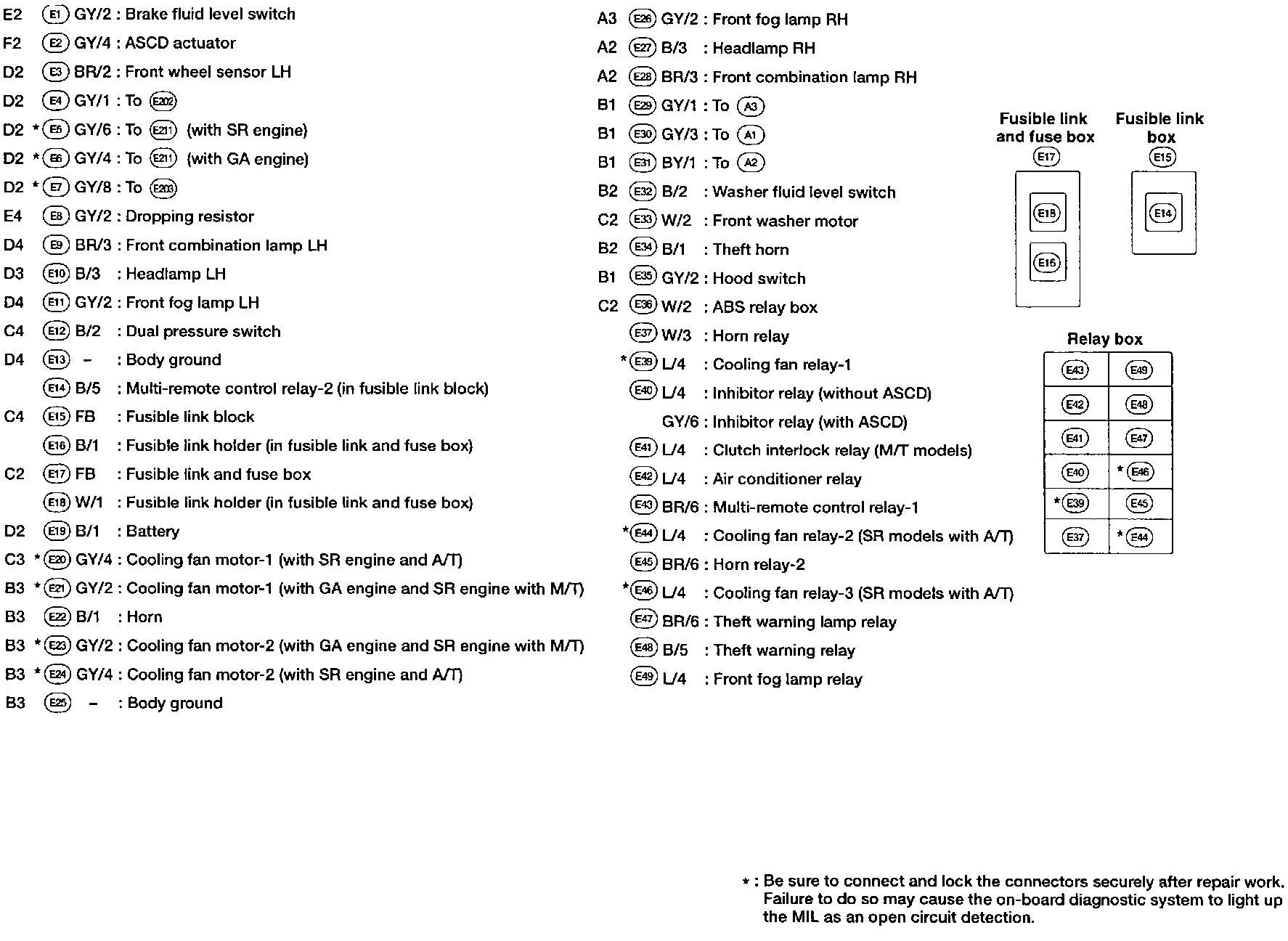

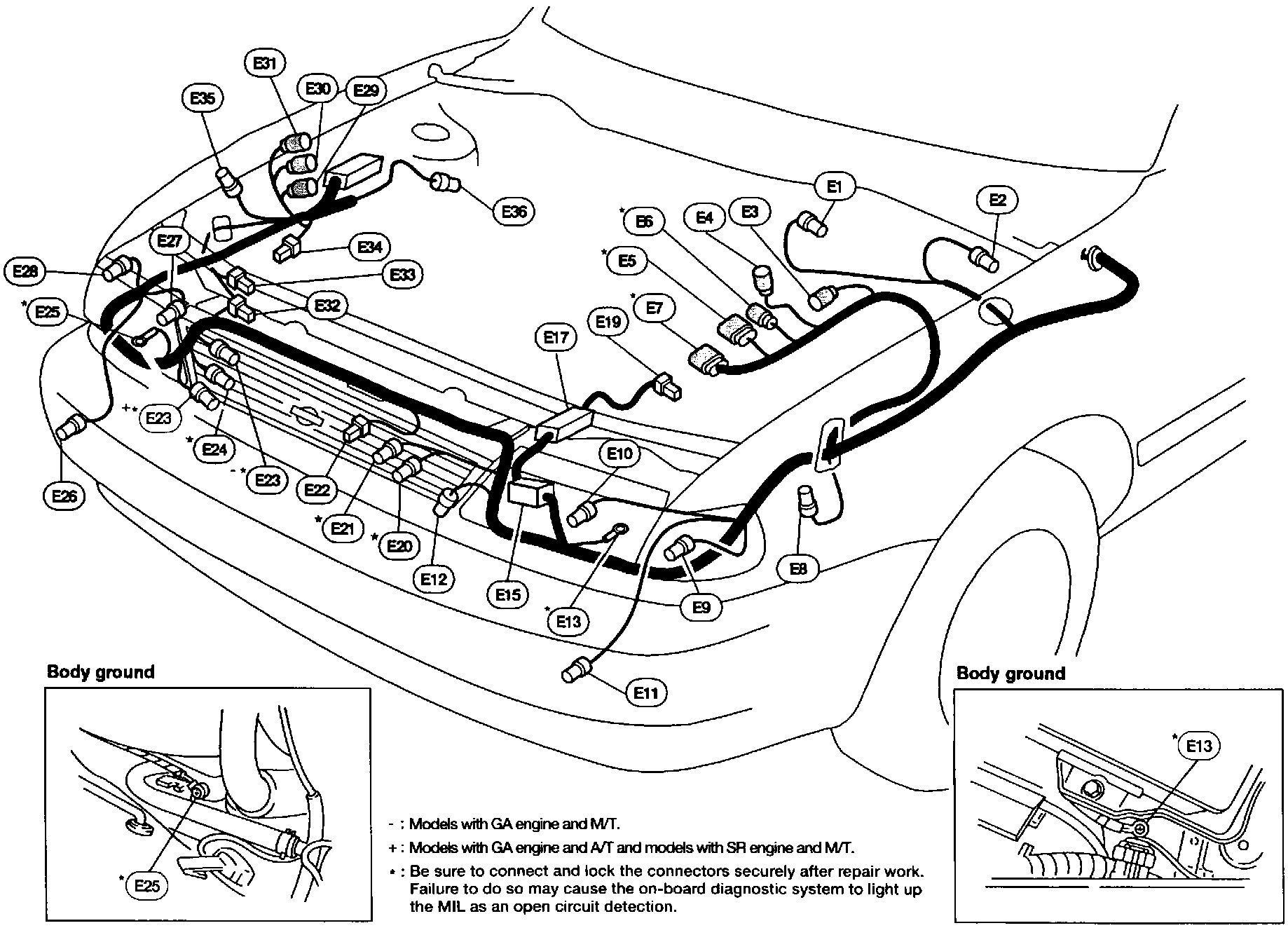

Engine Room Harness Engine Compartment (Part 1 Of 2):
Engine Room Harness Engine Compartment (Part 2 Of 2):
