Fuel Tank: Service and Repair

WARNING:
When replacing fuel line parts, be sure to observe the following:
- Put a "CAUTION: FLAMMABLE" sign in workshop.
- Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.
- Be sure to furnish workshop with a CO2 fire extinguisher.

CAUTION:
- Before removing fuel line parts, carry out the following procedures:
a. Put drained fuel in an explosion-proof container and put the lid on securely.
b. Release fuel pressure.
c. Disconnect battery ground cable.

- When installing fuel check valve, be careful of its designated direction.
- Always replace O-ring and clamps with new ones.
- Do not kink or twist tubes when installing.
- Do not overtighten hose clamps to avoid damaging hoses.
- After installing tubes, run engine and check for fuel leaks at connections.

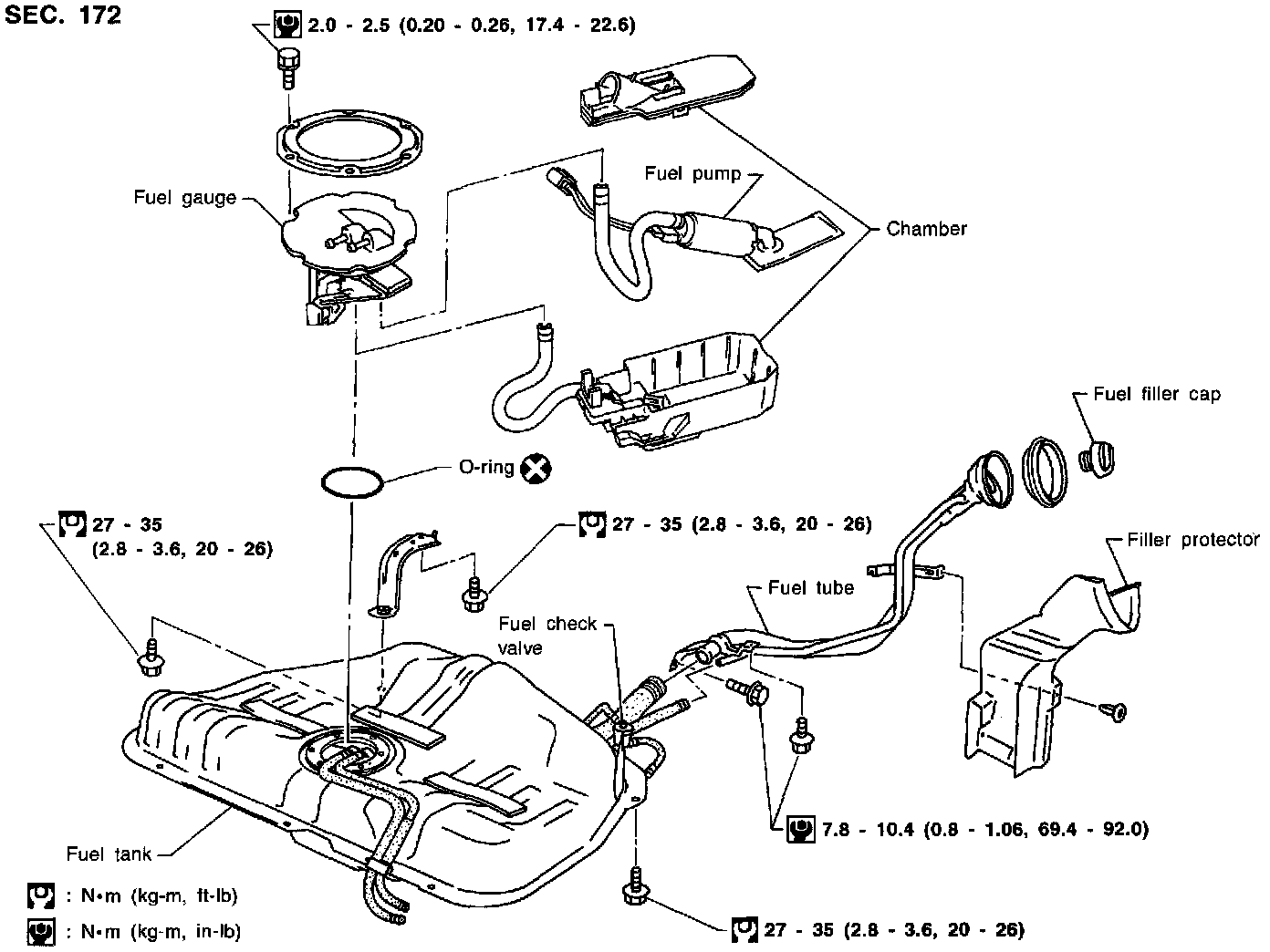

FUEL TANK COMPONENTS
