Fuel Pump: Service and Repair

REMOVAL

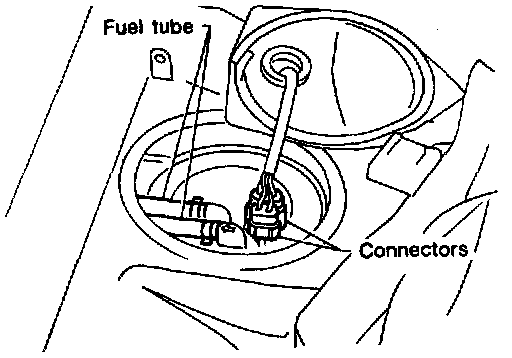

1. Release fuel pressure.

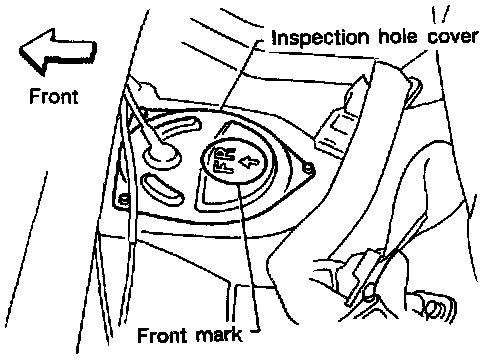

2. Remove inspection hole cover located under the rear seat.




3. Disconnect fuel supply tube, return tube and electrical connectors.
4. Remove the six screws.

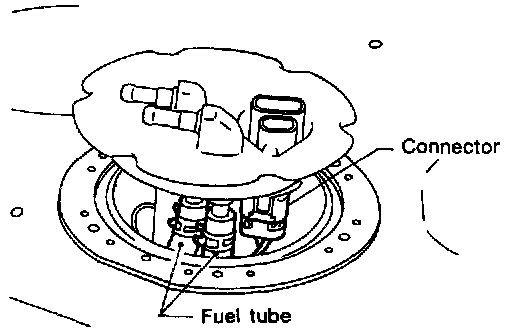

5. Disconnect fuel tubes and connector, then remove fuel gauge assembly.

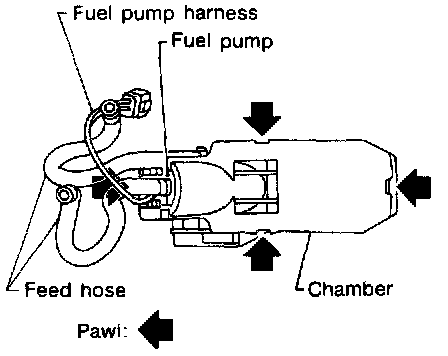

6. Remove fuel pump with chamber.
a. Pull up the front of the chamber.
b. Slide chamber forward.




7. Remove fuel pump from chamber.

INSTALLATION
To install, reverse the removal procedure.

CAUTION:
- Tighten bolts to specified torque.

2.0 - 2.5 Nm (0.20 - 0.26 kg-m, 17.4 - 22.6 in-lb)

- Always replace O-ring with a new one.
- After installation, run engine and check for leaks at connections.
