With Manufacturer's Scan Tool (CONSULT)

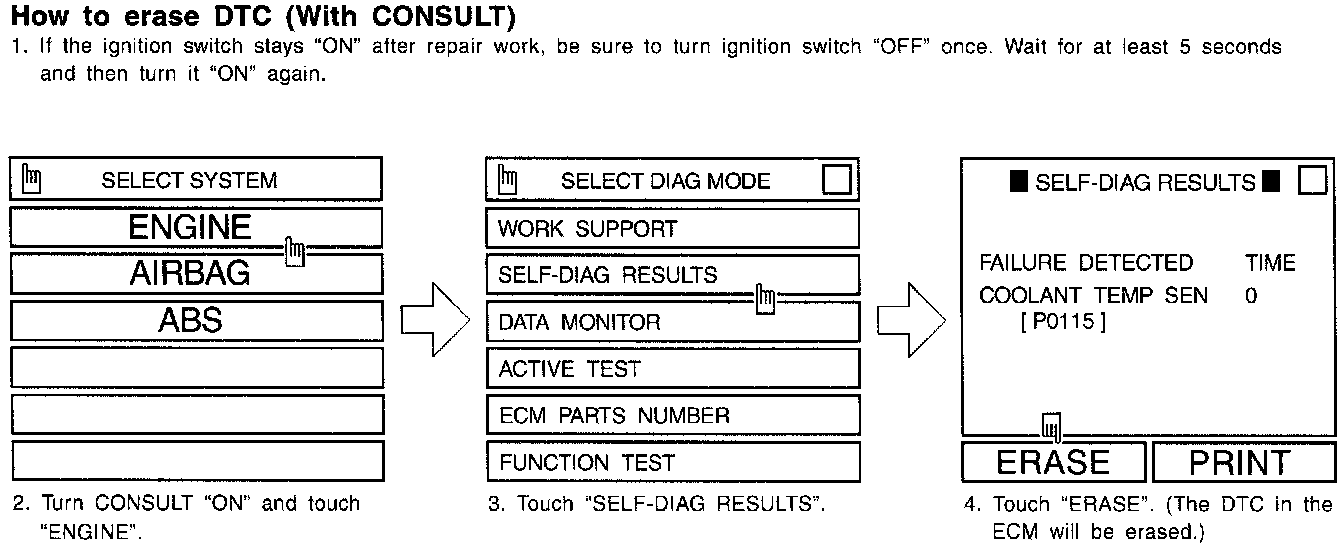

HOW TO ERASE DTC - CONSULT
1. If the ignition switch stays "ON" (engine stopped) after repair work, be sure to turn ignition switch "OFF" once. Wait for at least 3 seconds and then turn it "ON" again.
2. Turn CONSULT "ON" and touch "ENGINE".
3. Touch "SELF-DIAG RESULTS".
4. Touch "ERASE". (The DTC in the ECM will be erased.)
