Diagnostic Worksheet

Diagnostic Worksheet
There are many operating conditions that lead to the malfunction of engine components. A good grasp of such conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a problem. It is important to fully understand the symptoms or conditions for a customer complaint.
Utilize a diagnostic worksheet like the one shown below in order to organize all the information for troubleshooting.

KEY POINTS
WHAT Vehicle & engine model
WHEN Date, Frequencies
WHERE Road conditions
HOW Operating conditions, Weather conditions, Symptoms

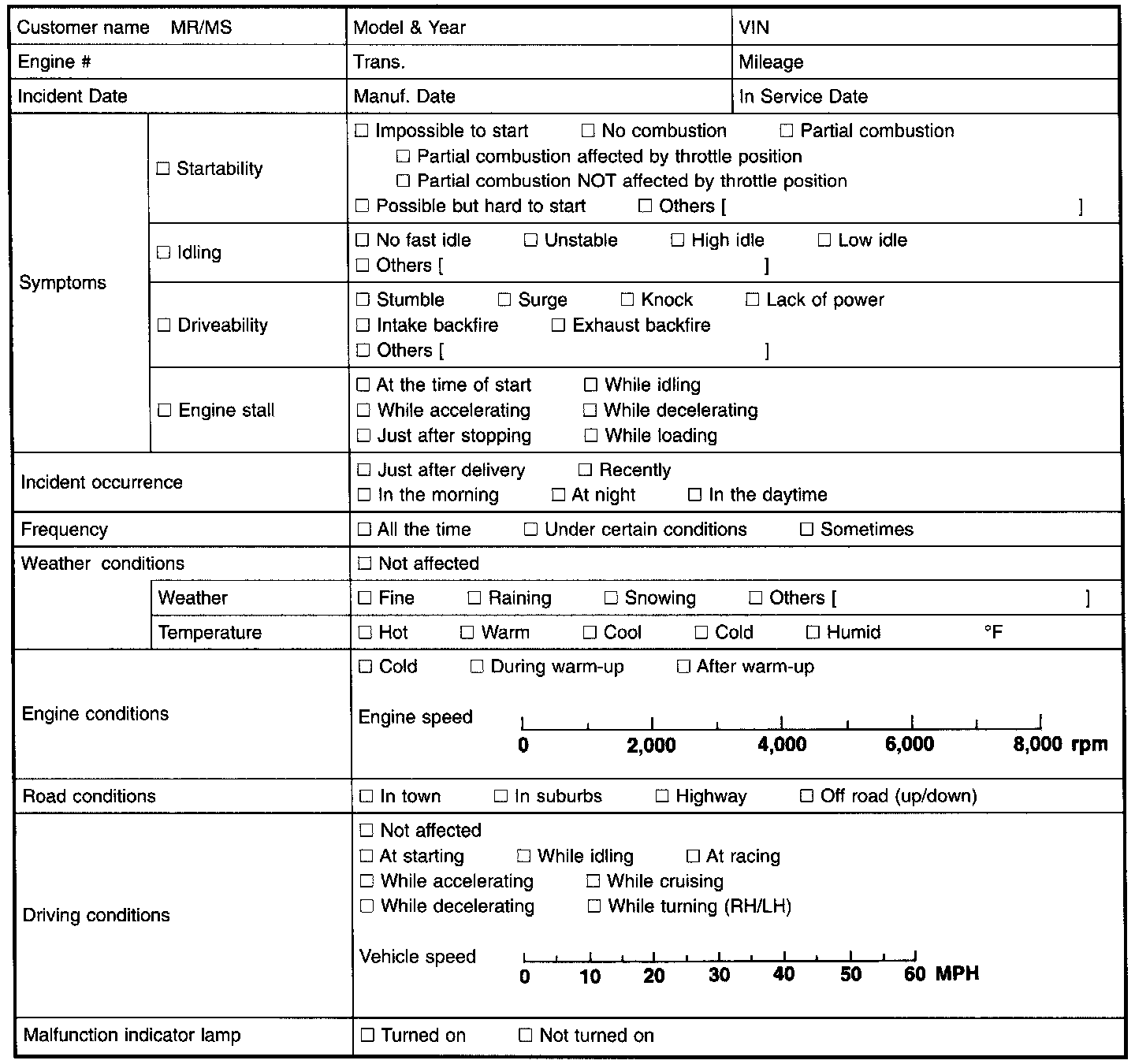

WORKSHEET SAMPLE
