Diode Check

Diode Check:

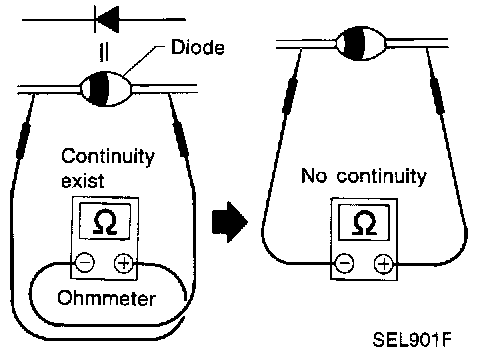

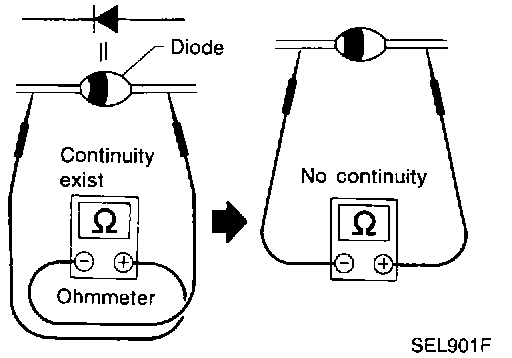

^ Check continuity using an ohmmeter.
^ Diode is functioning properly if test results are as shown in the image.
NOTE: Specification may vary depending on the type of tester. Before performing this inspection, he sure to refer to the instruction manual for the tester being used.

Diode Check:

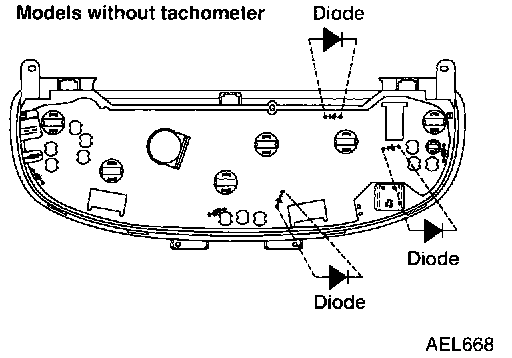

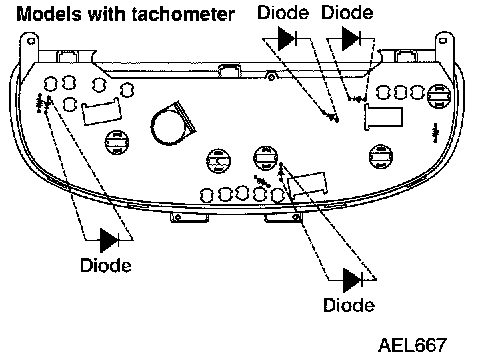

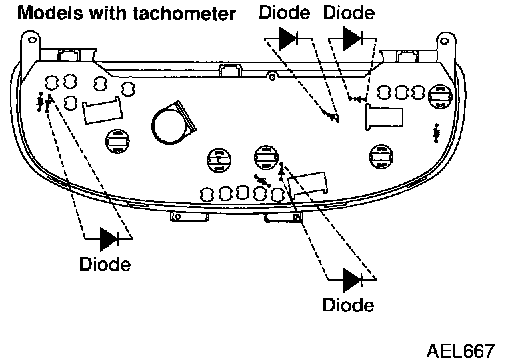

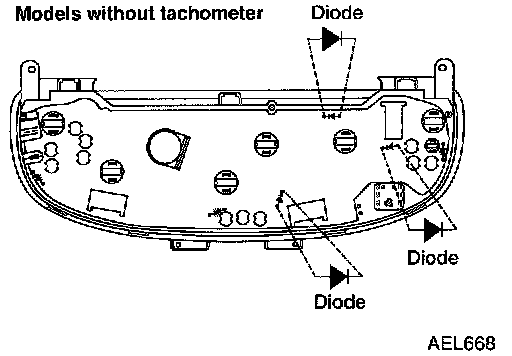

^ Diodes for warning lamps are built into the combination meter printed circuit.
