Front Crankshaft Seal: Service and Repair

1. Remove the following parts:

^ Engine under cover
^ RH engine side cover
^ Alternator and power steering drive belts
^ Crankshaft pulley

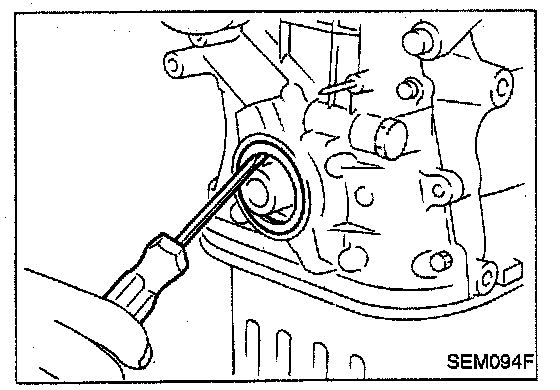

2. Remove front oil seal from front cover.

Caution: Be careful not to damage oil seal portion.

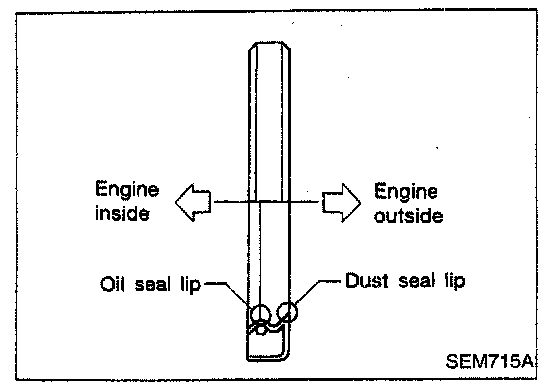

^ Install new oil seal in the direction shown.

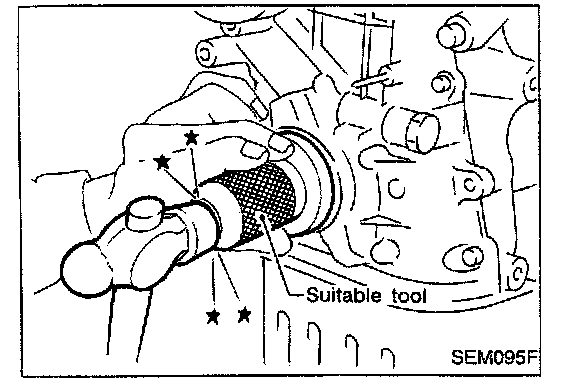

3. Apply engine oil to new oil seal and install it using a suitable tool.
