Nissan-Datsun
>>
1996
>>
200SX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Automatic Transmission/Transaxle
>>
Hydraulic Control Circuit - RL4F03A

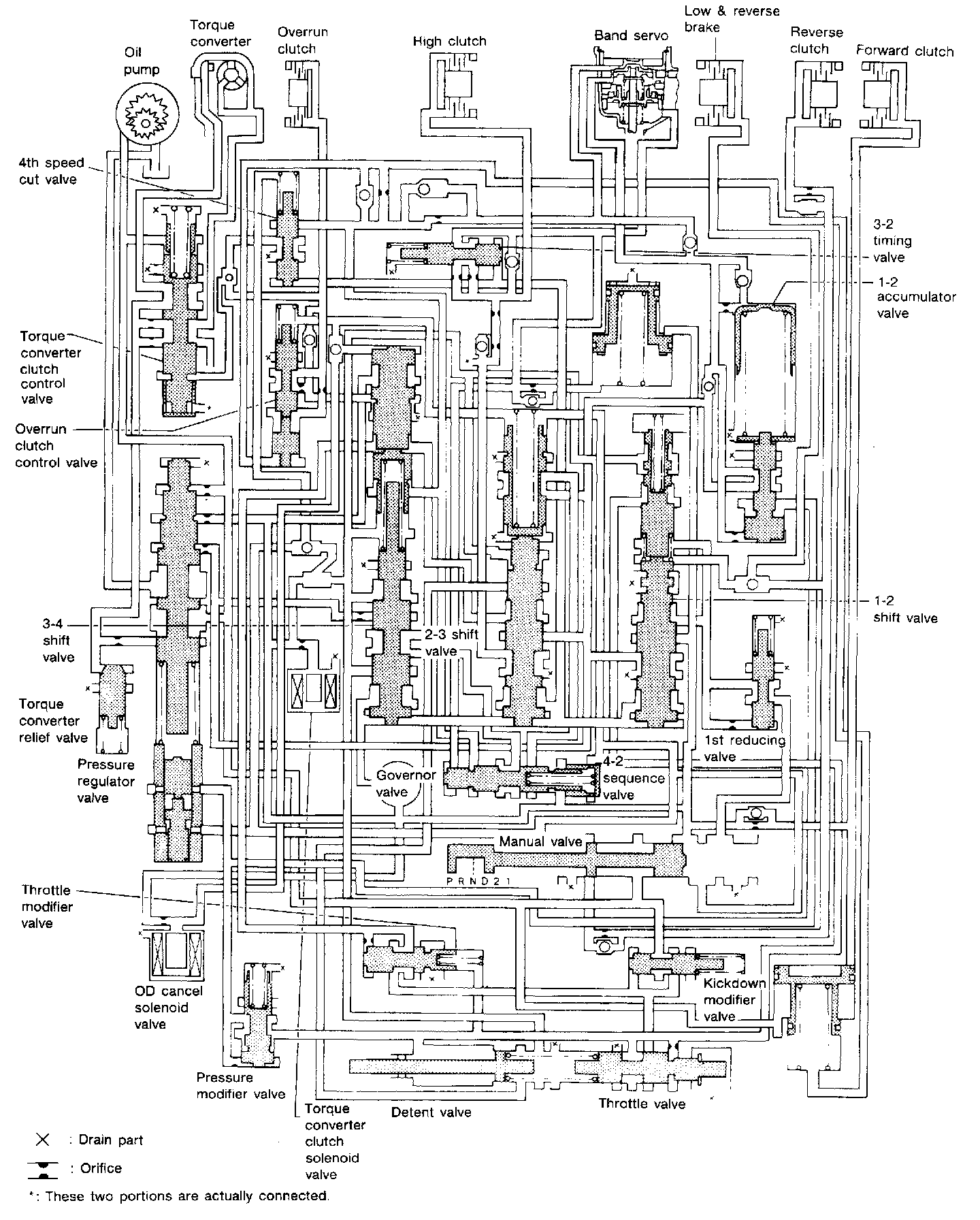

Hydraulic Control Circuit - RL4F03A
Hydraulic Control Circuit - RL4F03A:
