Nissan-Datsun
>>
1996
>>
200SX L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Starting System
>>
MZT49283ZC
MZT49283ZC

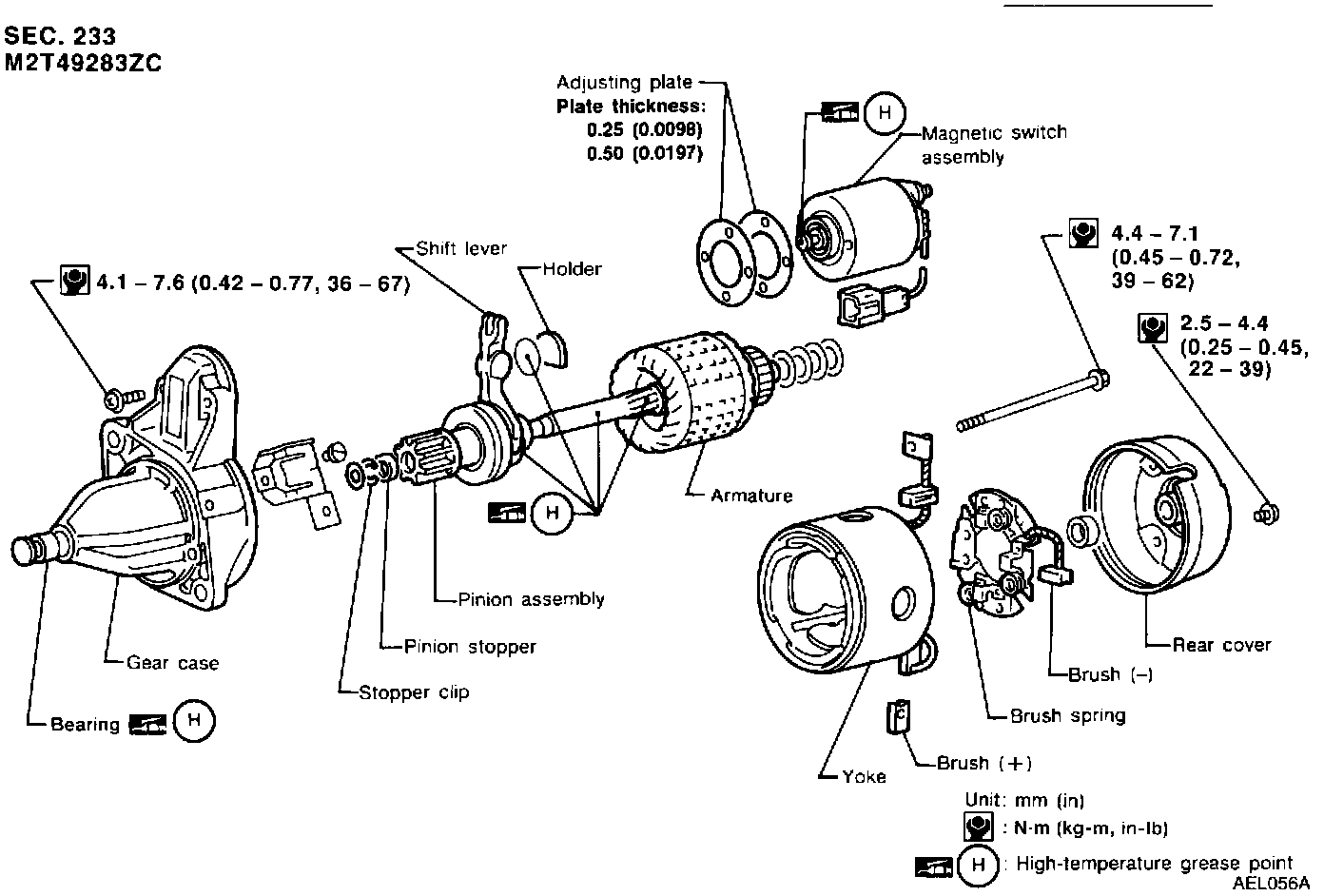

Starter Exploded View M2T49283ZC:
