MIT2985A

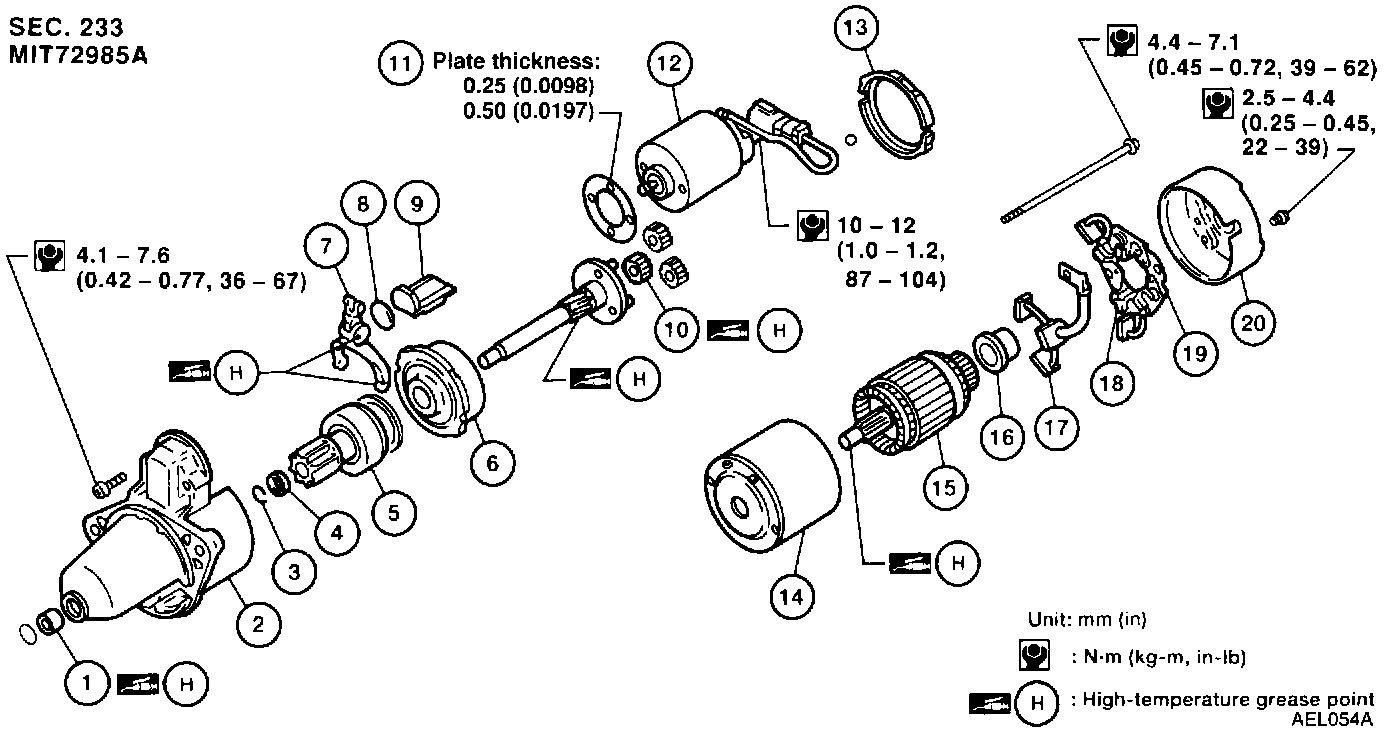

Starter Exploded View MIT72985A:

1 Sleeve bearing
2 Gear case
3 Stopper clip
4 Pinion stopper
5 Pinion assembly
6 Internal gear
7 Shift lever
8 Plate
9 Packing
10 Planetary gear
11 Adjusting plate
12 Magnetic switch assembly
13 Packing
14 Yoke
15 Armature
16 Bearing
17 Brush (+)
18 Brush spring
19 Brush holder
20 Rear cover
