Home >> Nissan-Datsun >> 1996 >> 200SX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radiator Cooling Fan

Radiator Cooling Fan

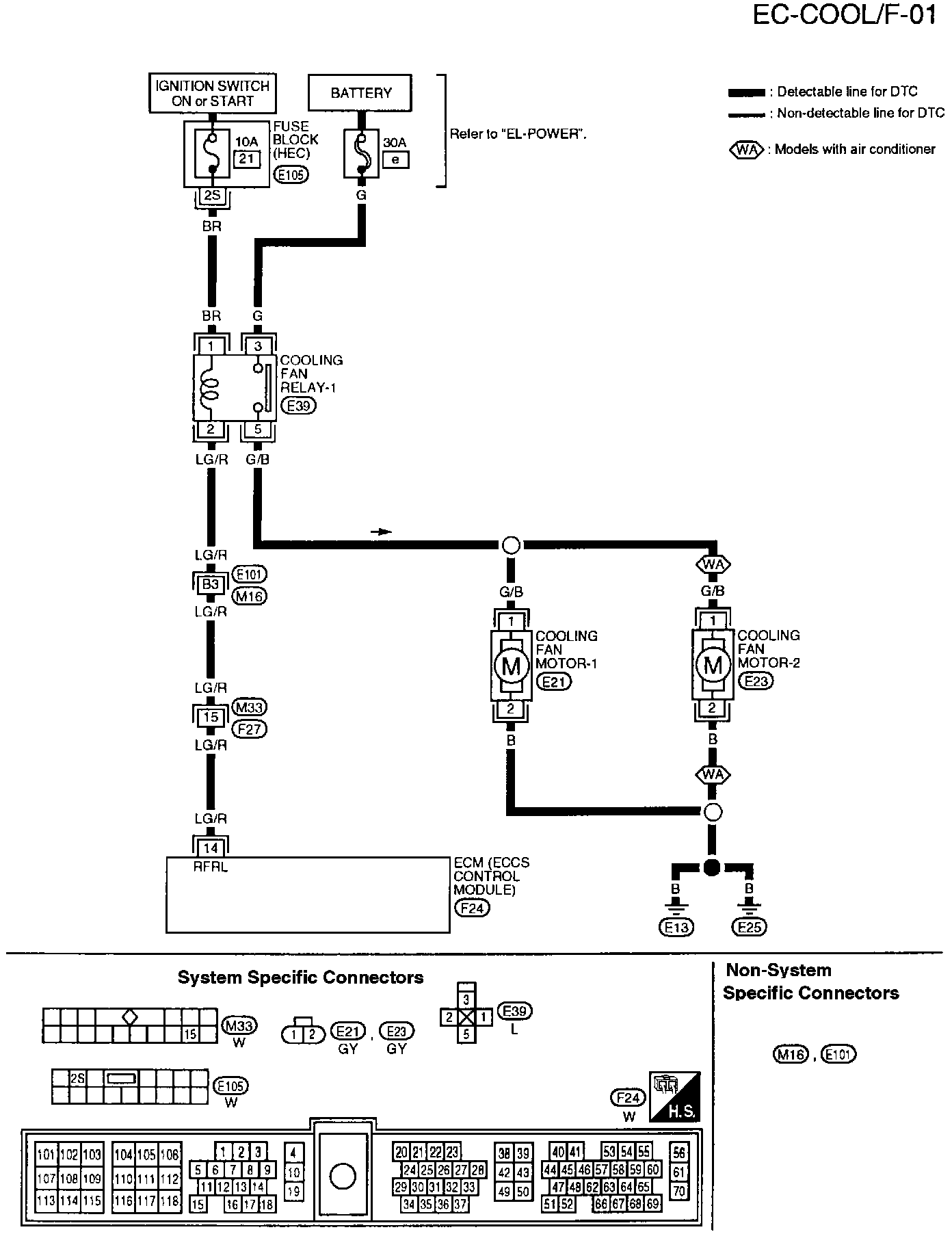

EC-COOL/F-01 Cooling Fan Overheat (DTC: 0208):
