With Tachometer

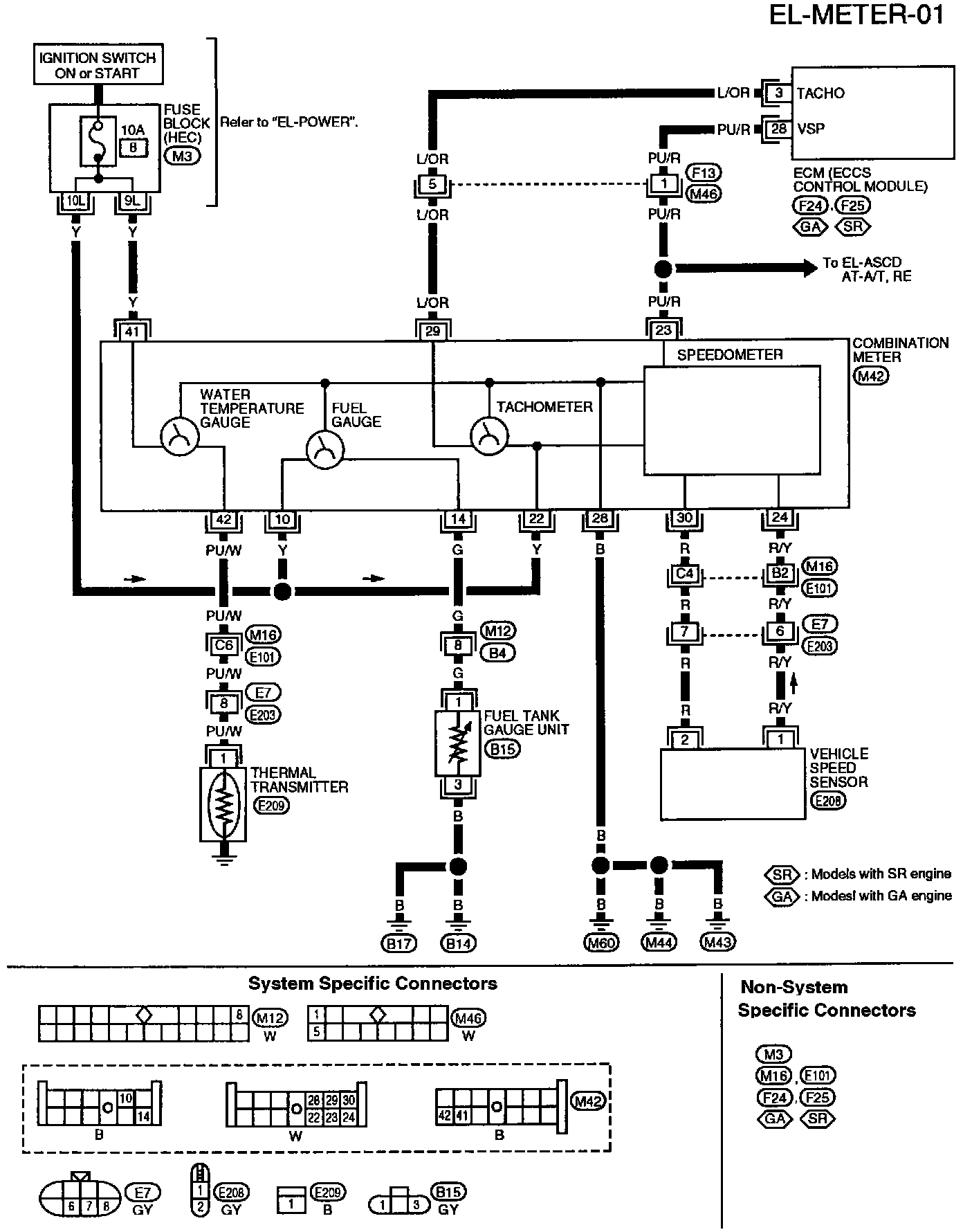

EL-METER-01 Speedometer, Tachometer, Temp. And Fuel Gauges:

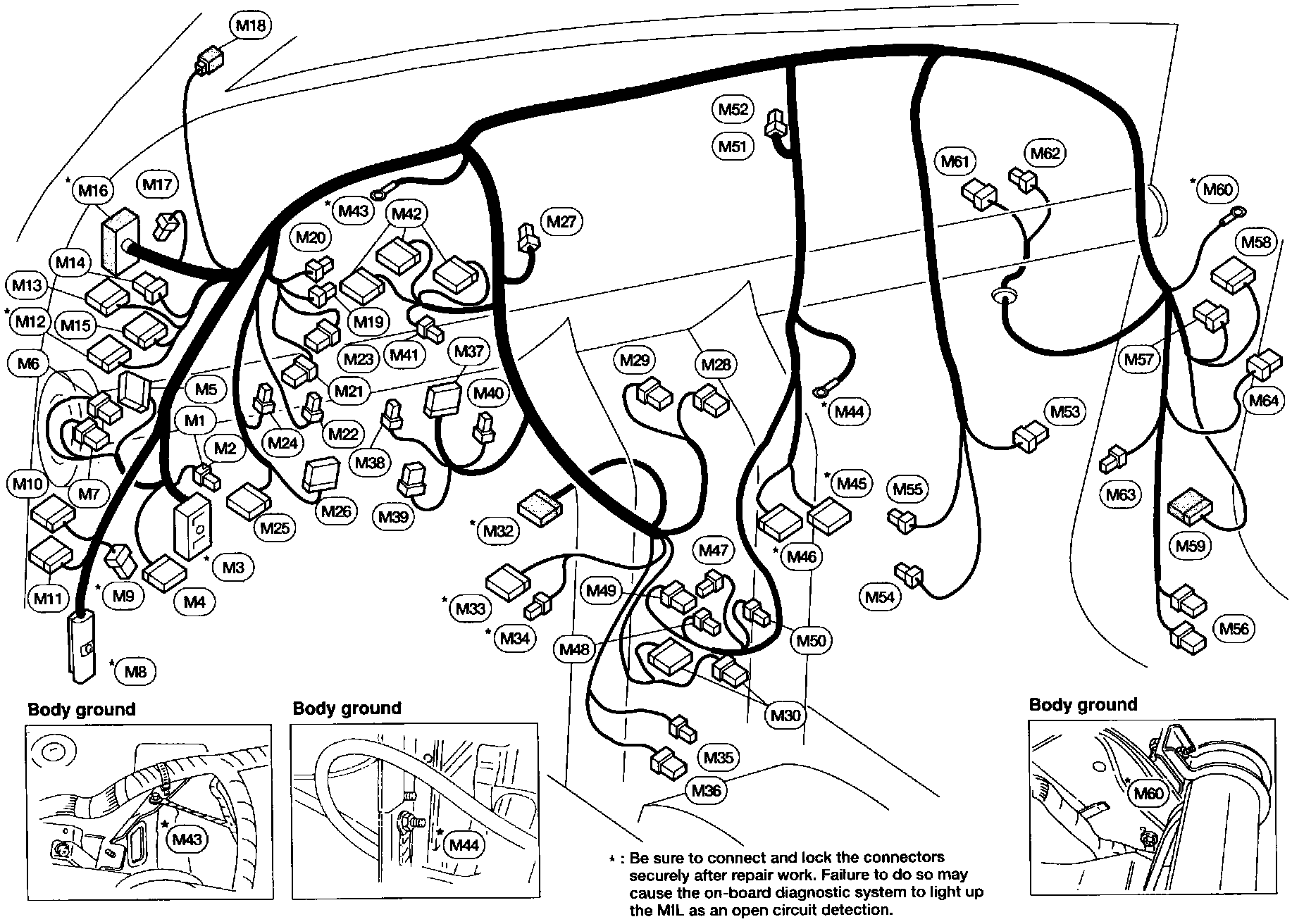

Main Harness (Part 1 Of 2):
