EL-ASCD
>>
Automatic Speed Control Device (ASCD)-Without Tachometer
Automatic Speed Control Device (ASCD)-Without Tachometer

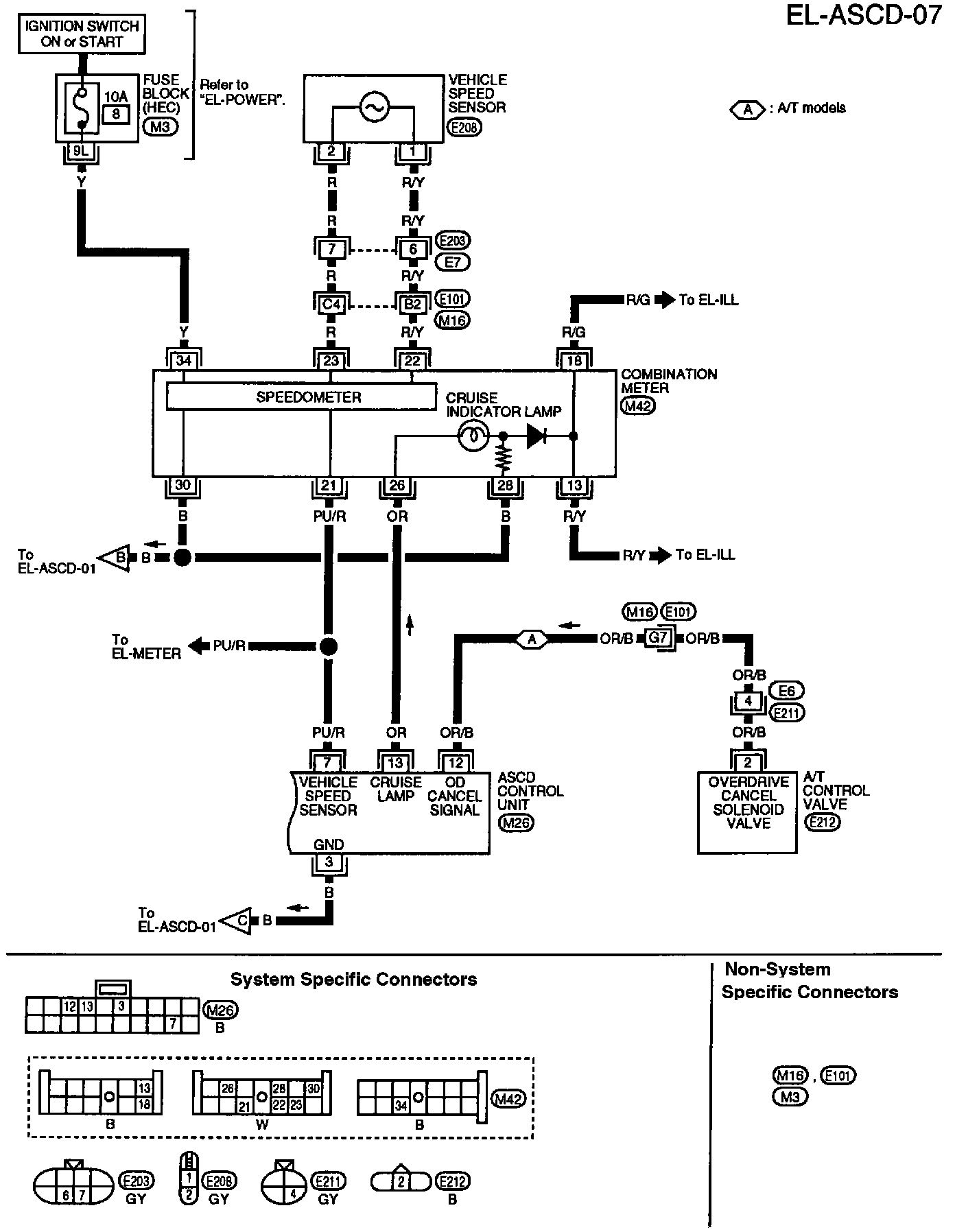

EL-ASCD-07 Automatic Speed Control Device (ASCD) (Models Without Tachometer):
