EC-FRO2/H
EC-FRO2/H

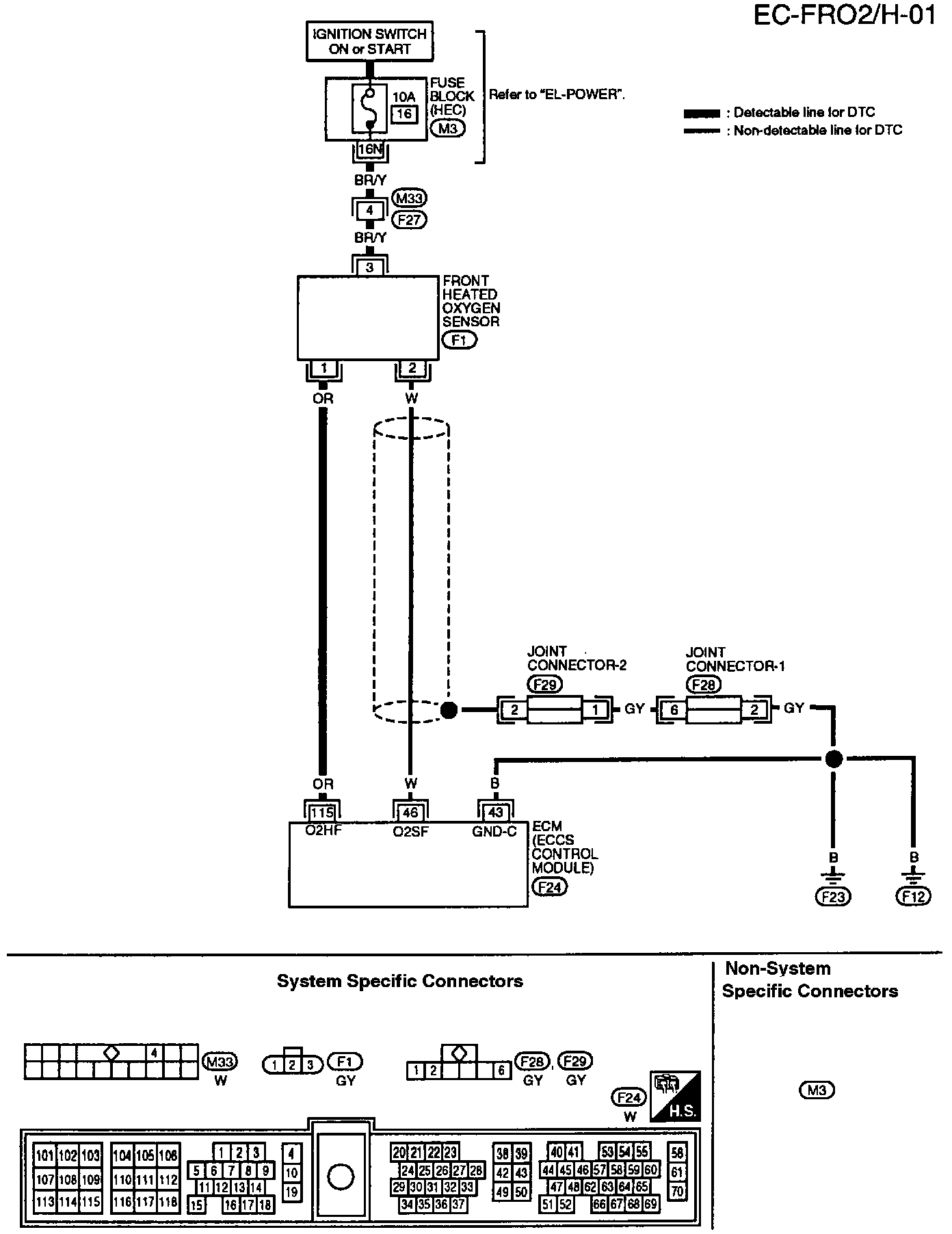

EC-FRO2/H-01 Front Heated Oxygen Sensor Heater (DTC: 0901) (M/T Models For California And A/T Models):
