Daytime Running Lamp
Daytime Running Lamp

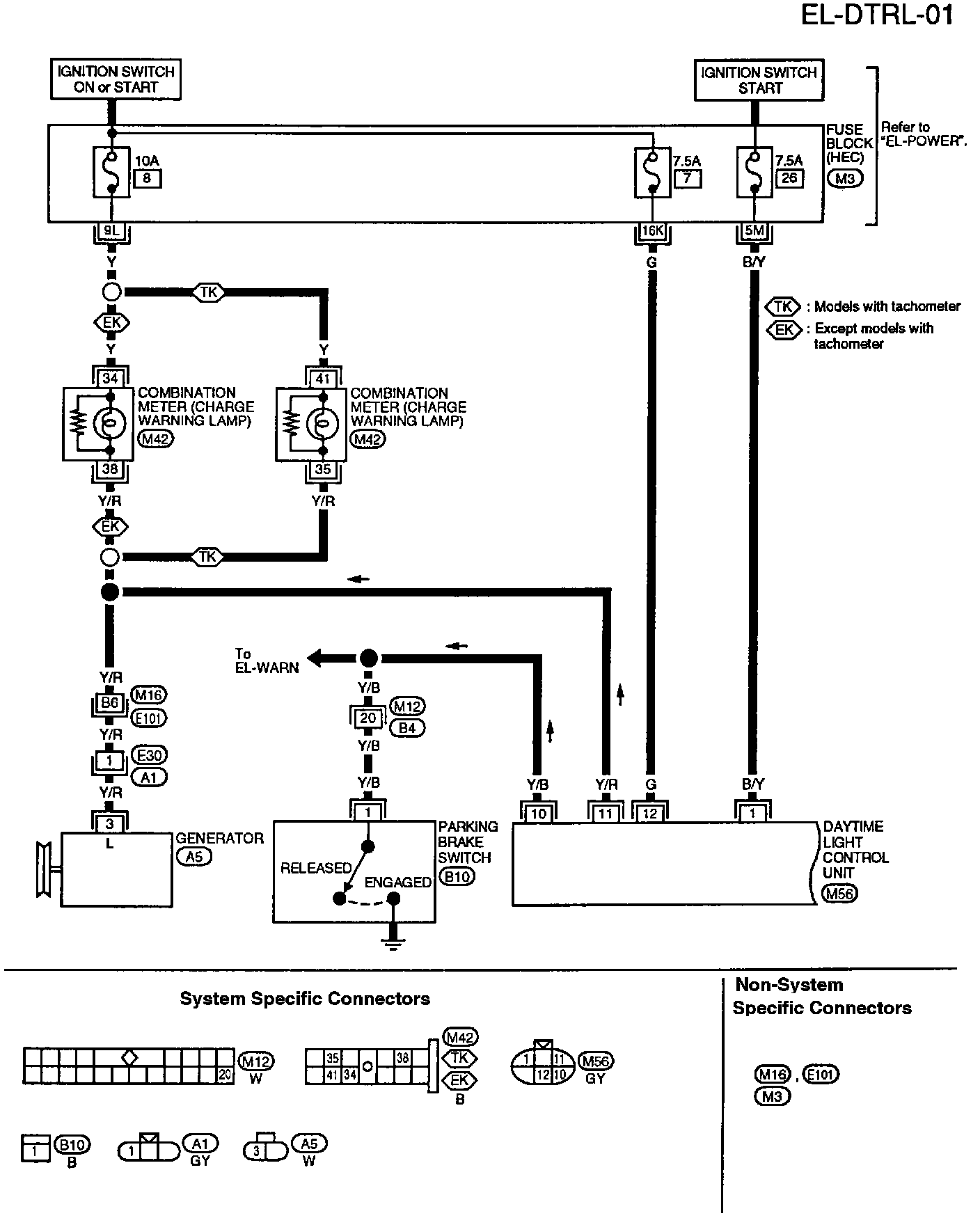

EL-DTRL-01 Daytime Light System (Part 1 Of 3) (For Canada):

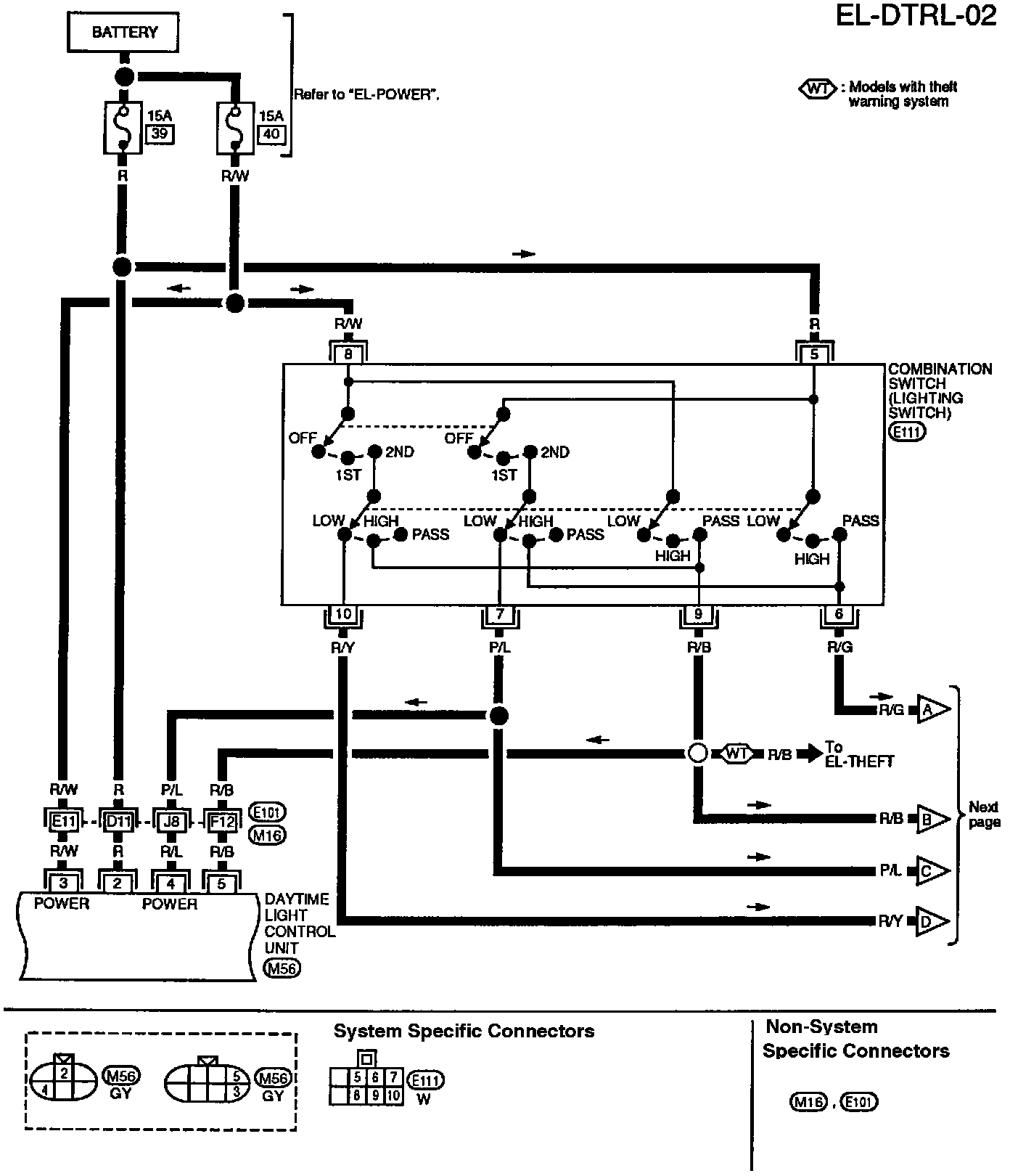

EL-DTRL-02 Daytime Light System (Part 2 Of 3) (For Canada):

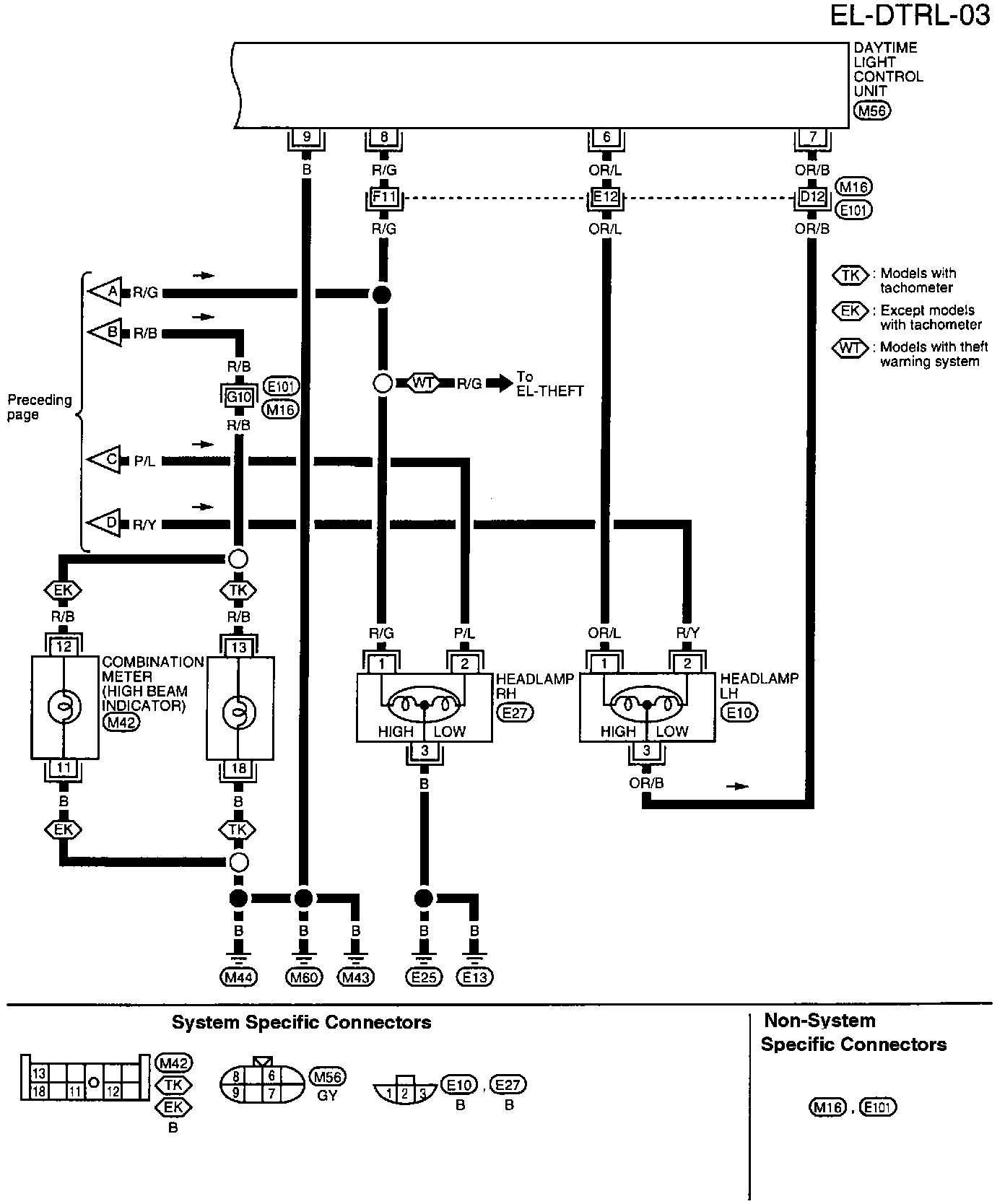

EL-DTRL-03 Daytime Light System (Part 3 Of 3) (For Canada):
