Automatic Speed Control Device (ASCD)

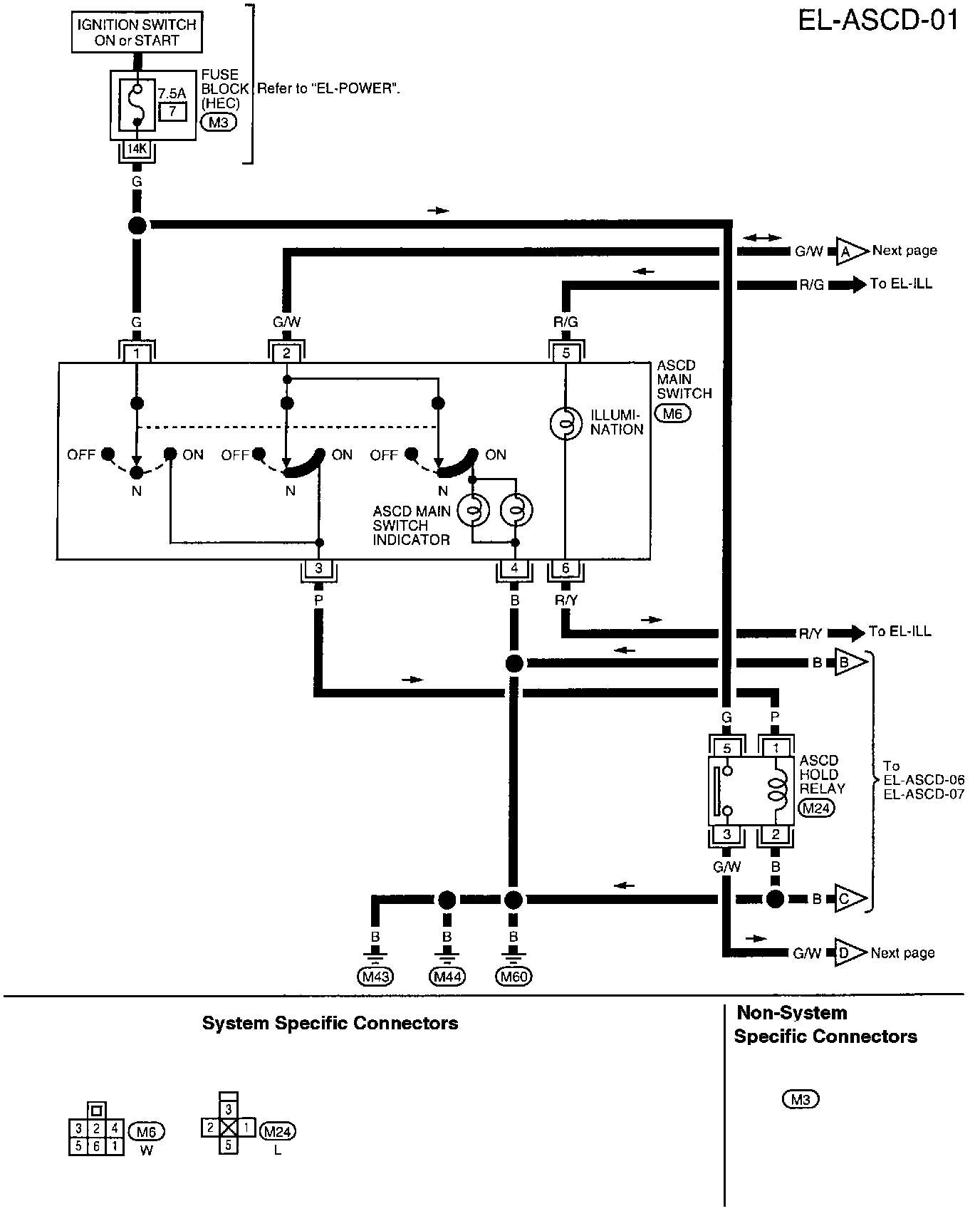

EL-ASCD-01 Automatic Speed Control Device (ASCD) (Part 1 Of 5):

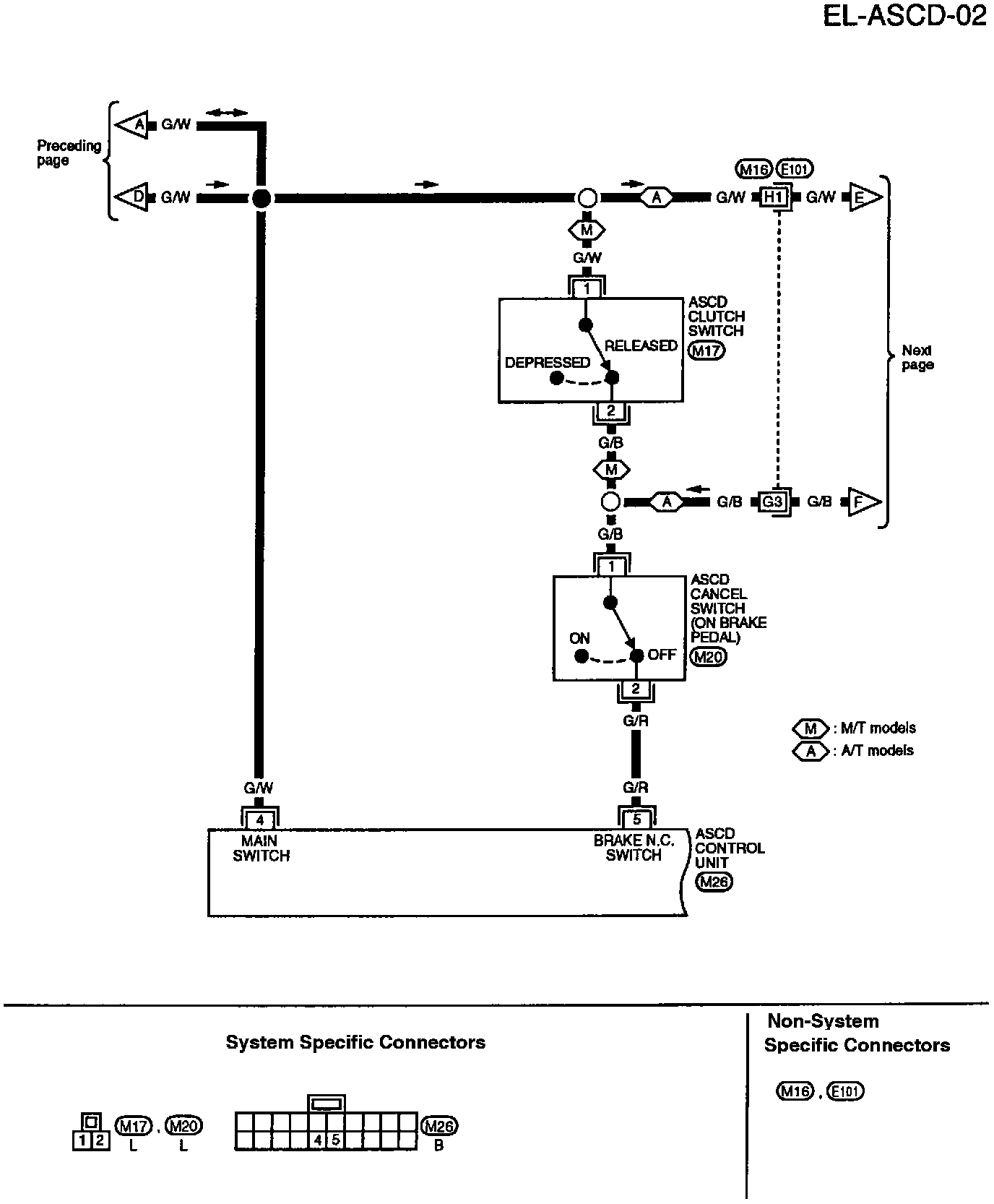

EL-ASCD-02 Automatic Speed Control Device (ASCD) (Part 2 Of 5):

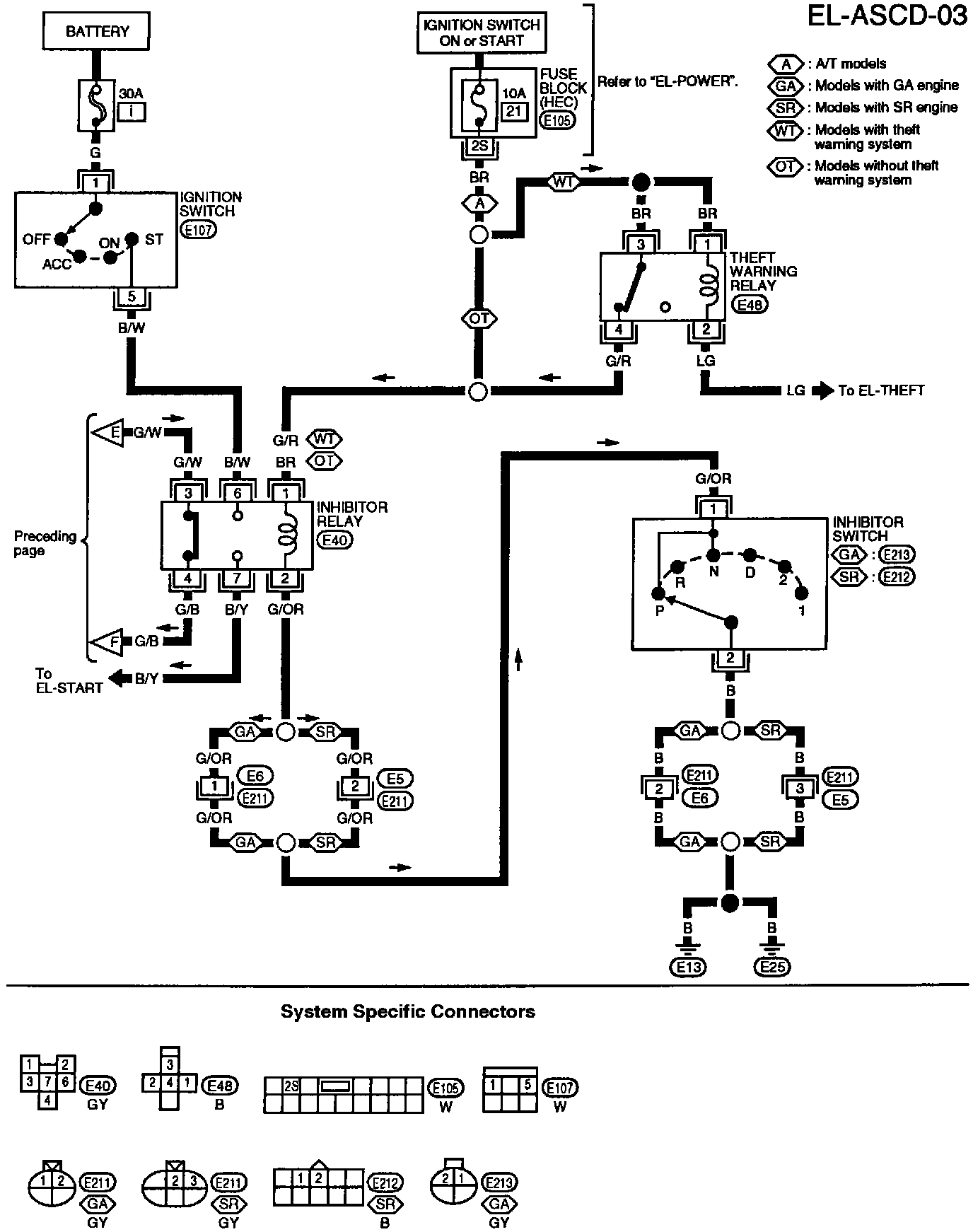

EL-ASCD-03 Automatic Speed Control Device (ASCD) (Part 3 Of 5):

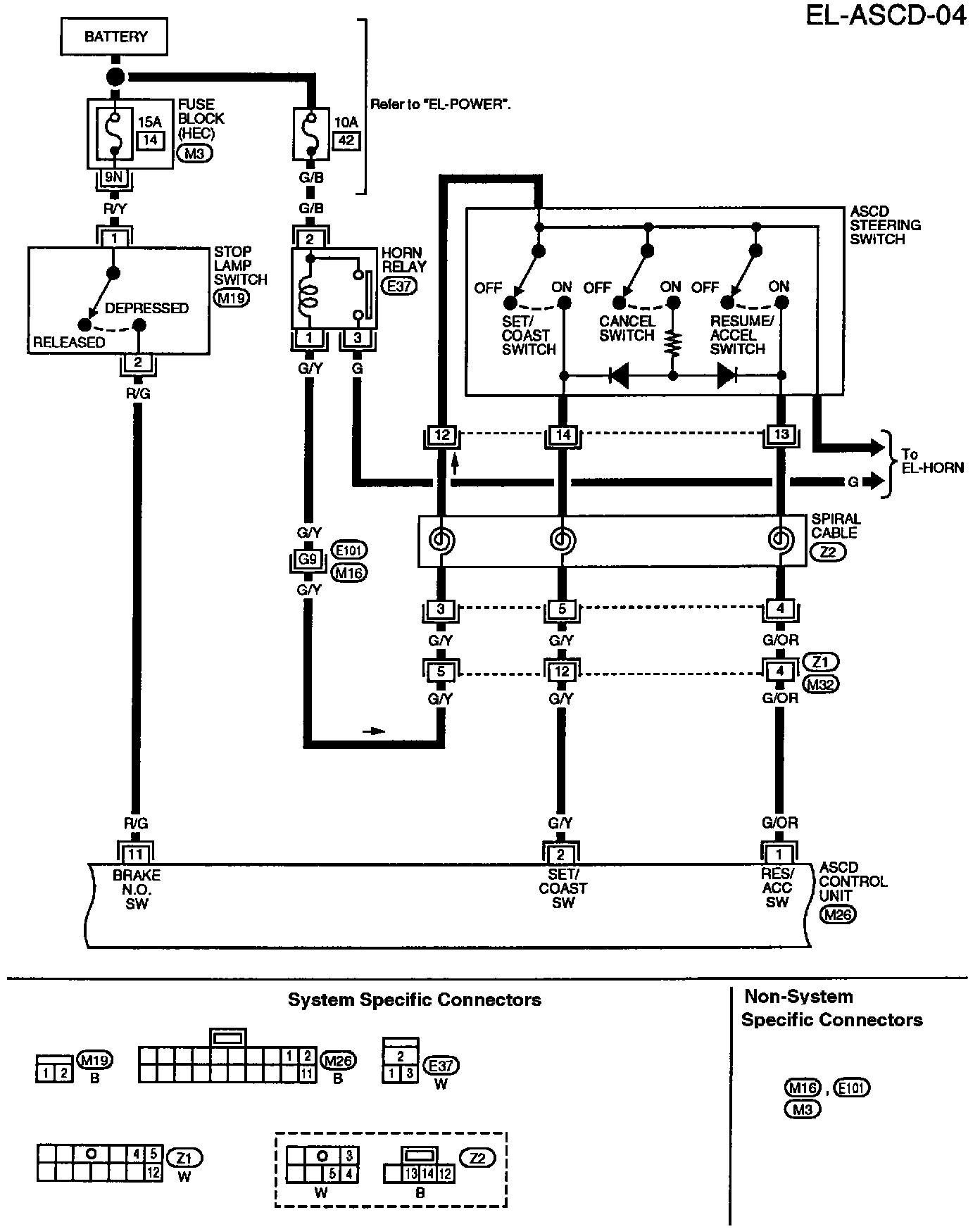

EL-ASCD-04 Automatic Speed Control Device (ASCD) (Part 4 Of 5):

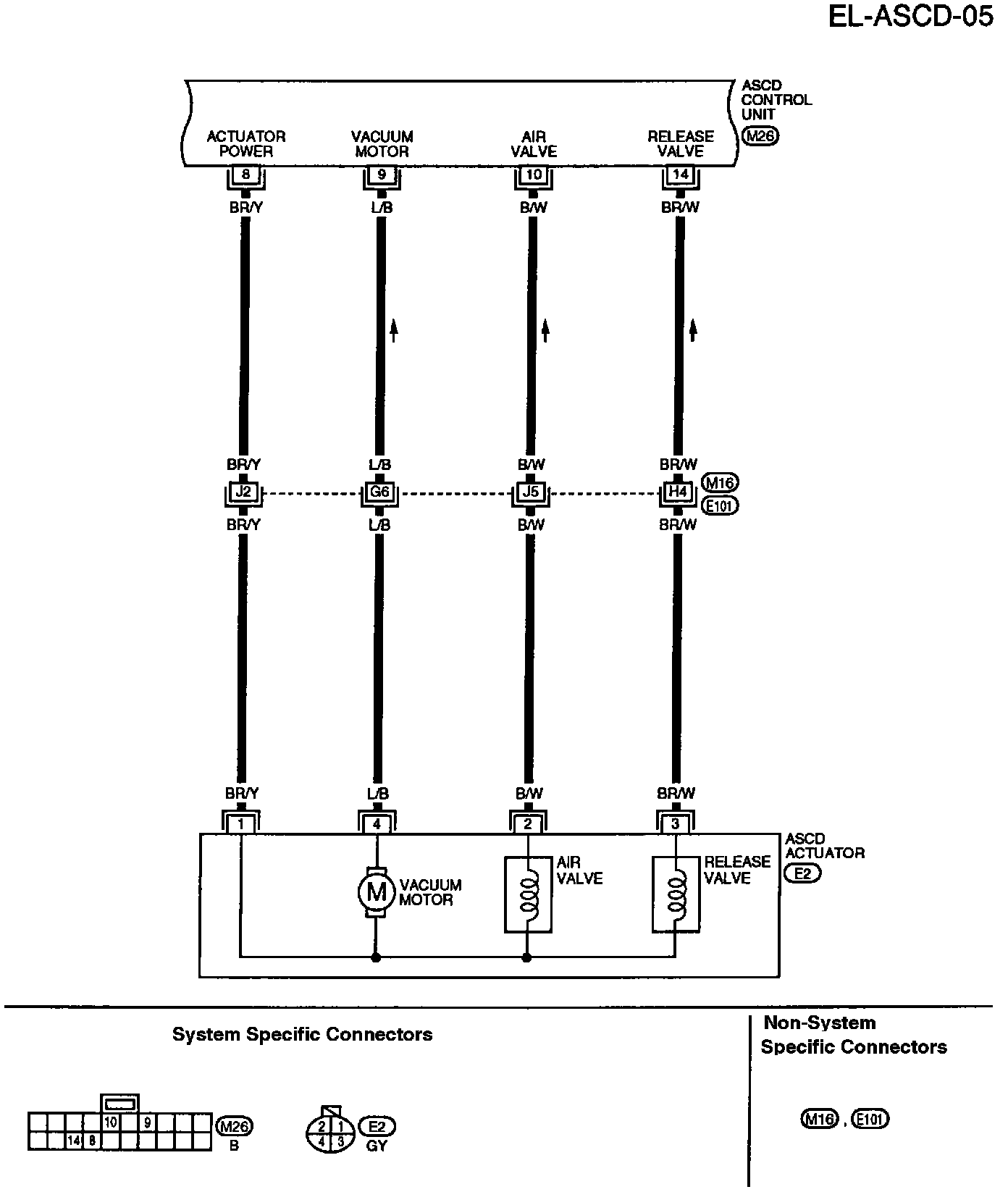

EL-ASCD-05 Automatic Speed Control Device (ASCD) (Part 5 Of 5):
