Home >> Nissan-Datsun >> 1996 >> 200SX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Component Tests and General Diagnostics >> Electrical Components Inspection >> ASCD Main Switch

ASCD Main Switch

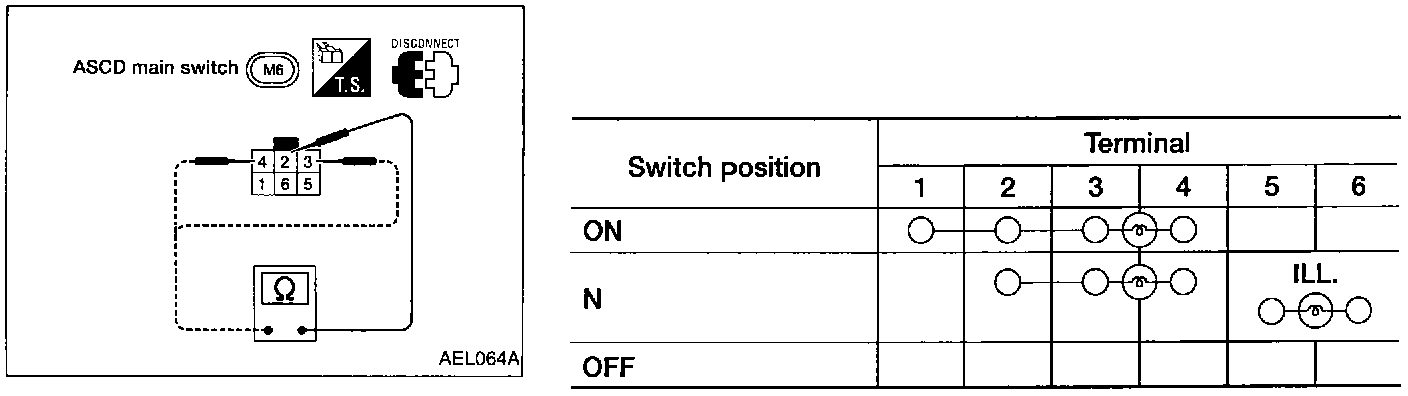

ASCD Main Switch Inspection:




Check Continuity between terminals by pushing switch to each position.
