ASCD Actuator/ASCD Pump

ASCD Actuator/ASCD Pump Inspection:

1. Disconnect ASCD actuator/ASCD pump connector

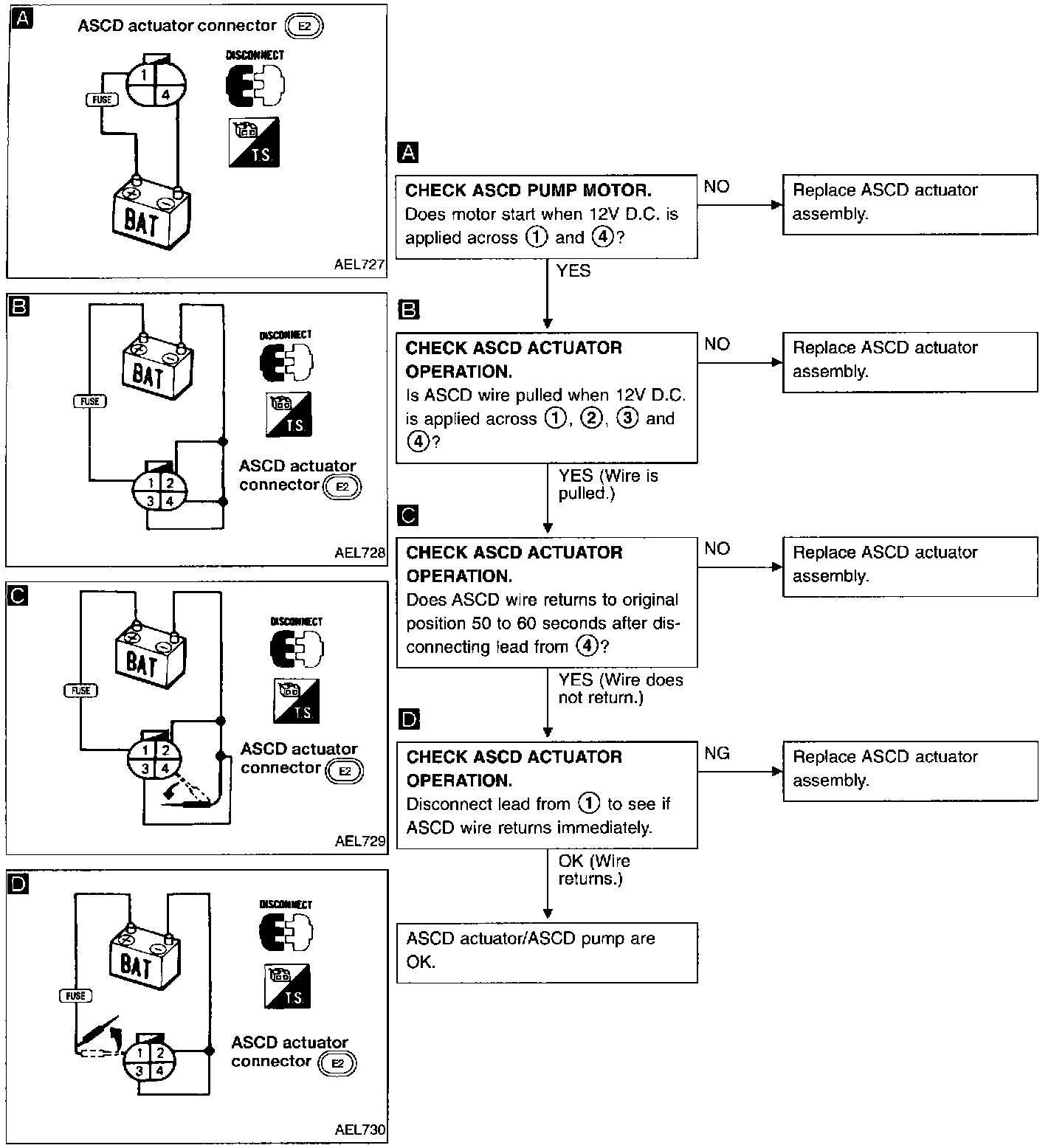

2. Check ASCD actuator/ASCD pump operations as shown in image.
