Diagnostic Test Procedure 3

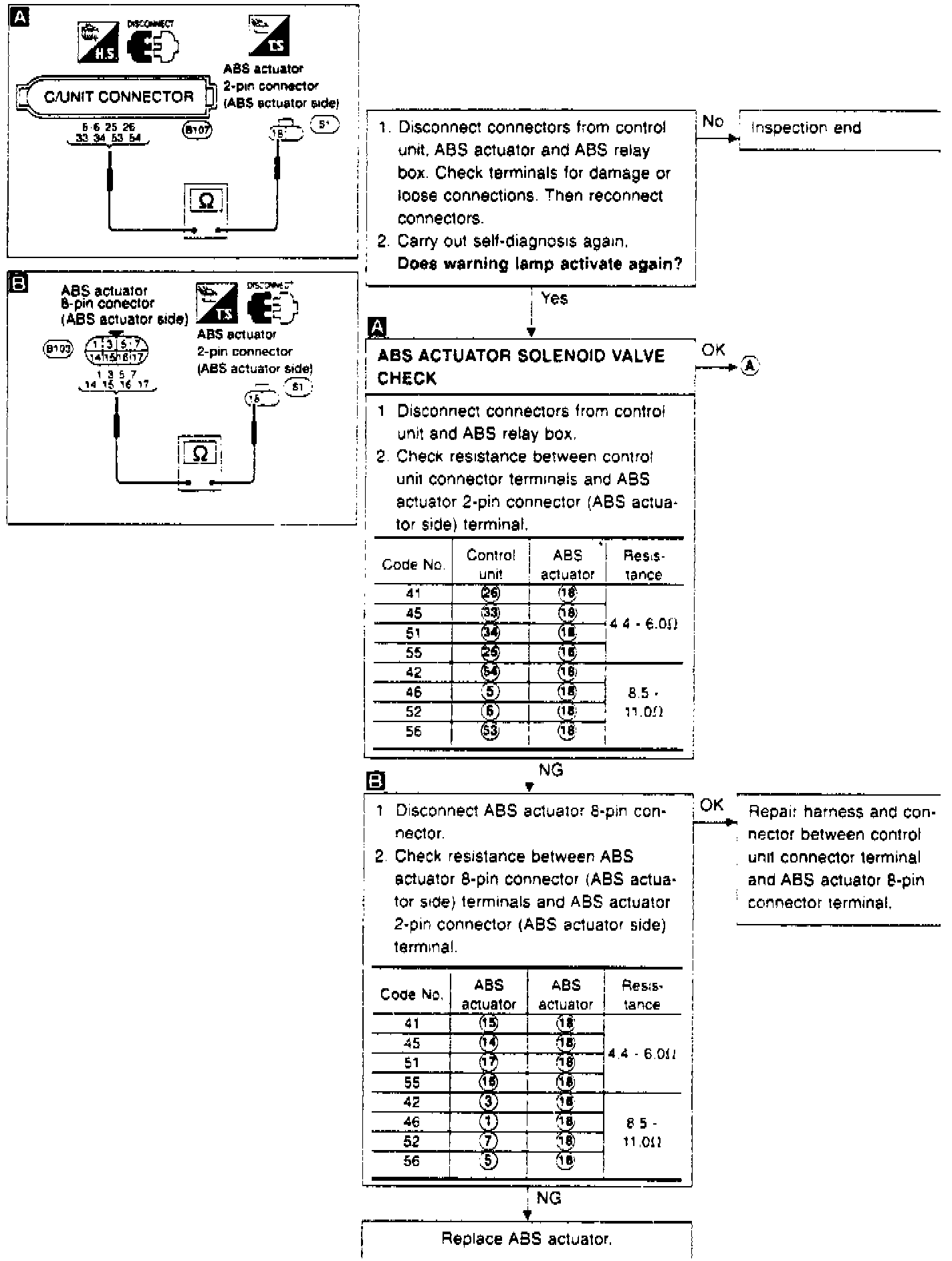

Fig. 143 Test 3: ABS Actuator Solenoid Valve (Part 1 Of 2):




PART 1 OF 2

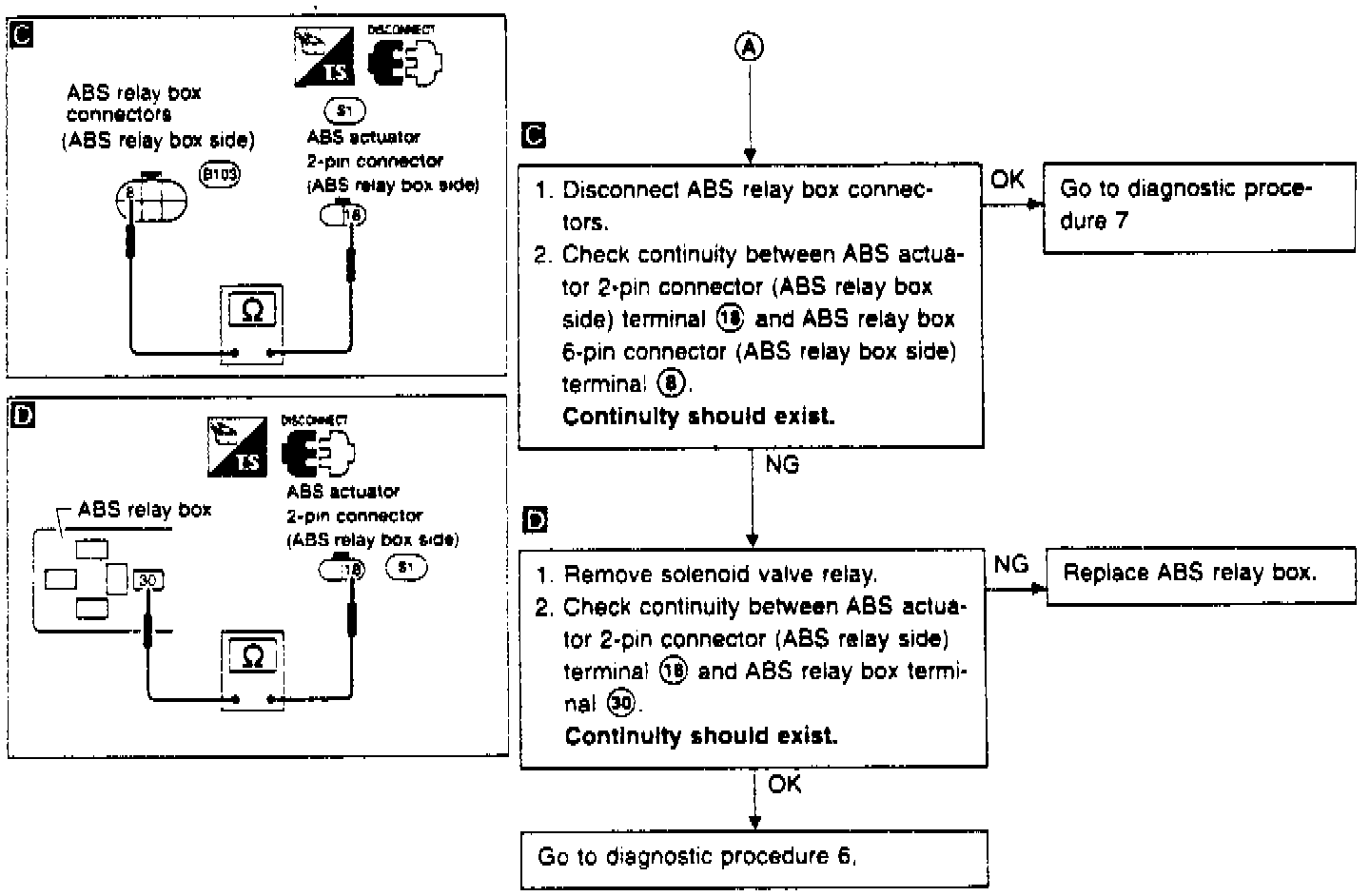

Fig. 143 Test 3: ABS Actuator Solenoid Valve (Part 2 Of 2):




PART 2 OF 2
