Diagnostic Test Procedure 2

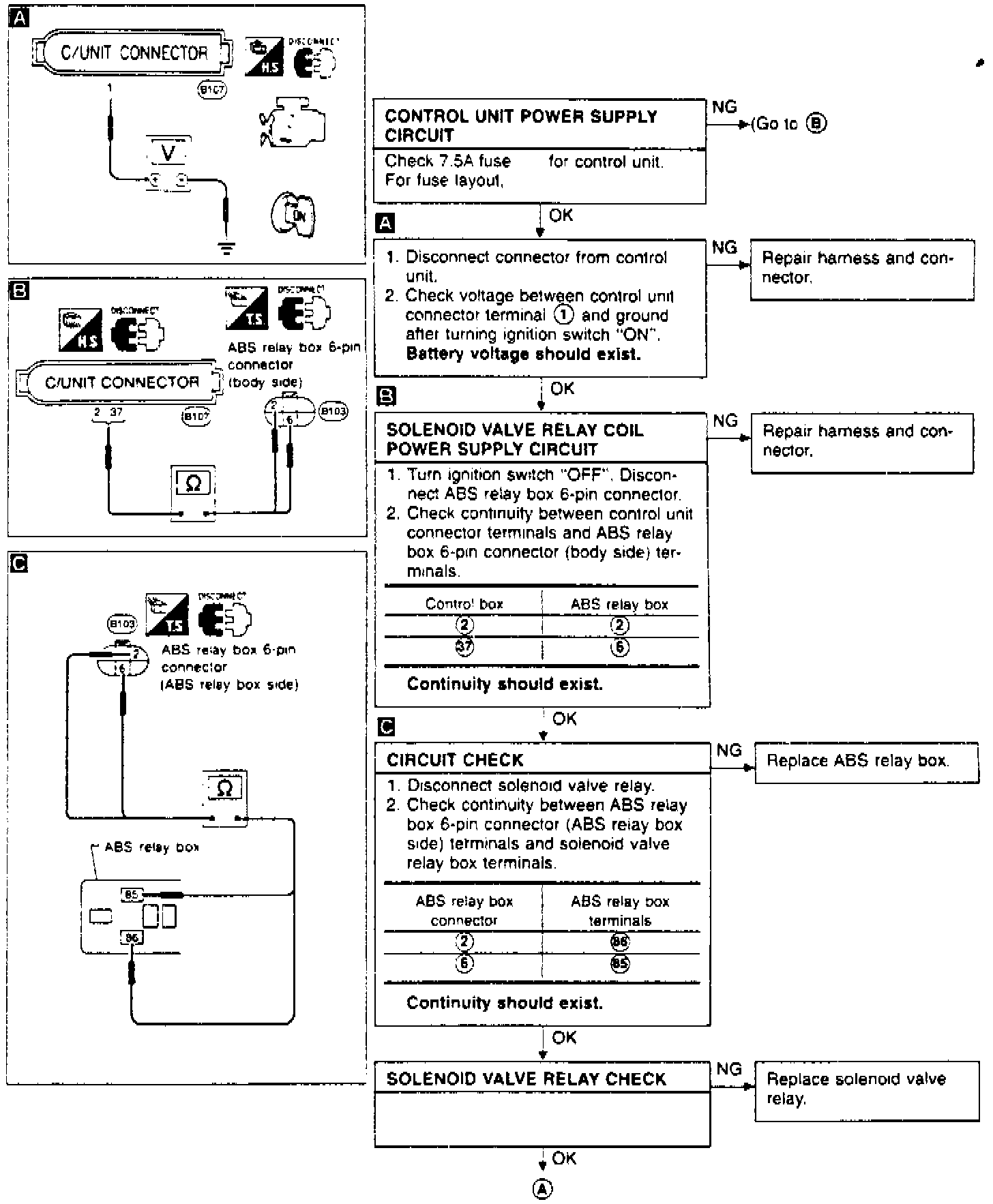

Fig. 142 Test 2: Warning Light Stays On When Ignition Switch Is Turned On (Part 1 Of 3):

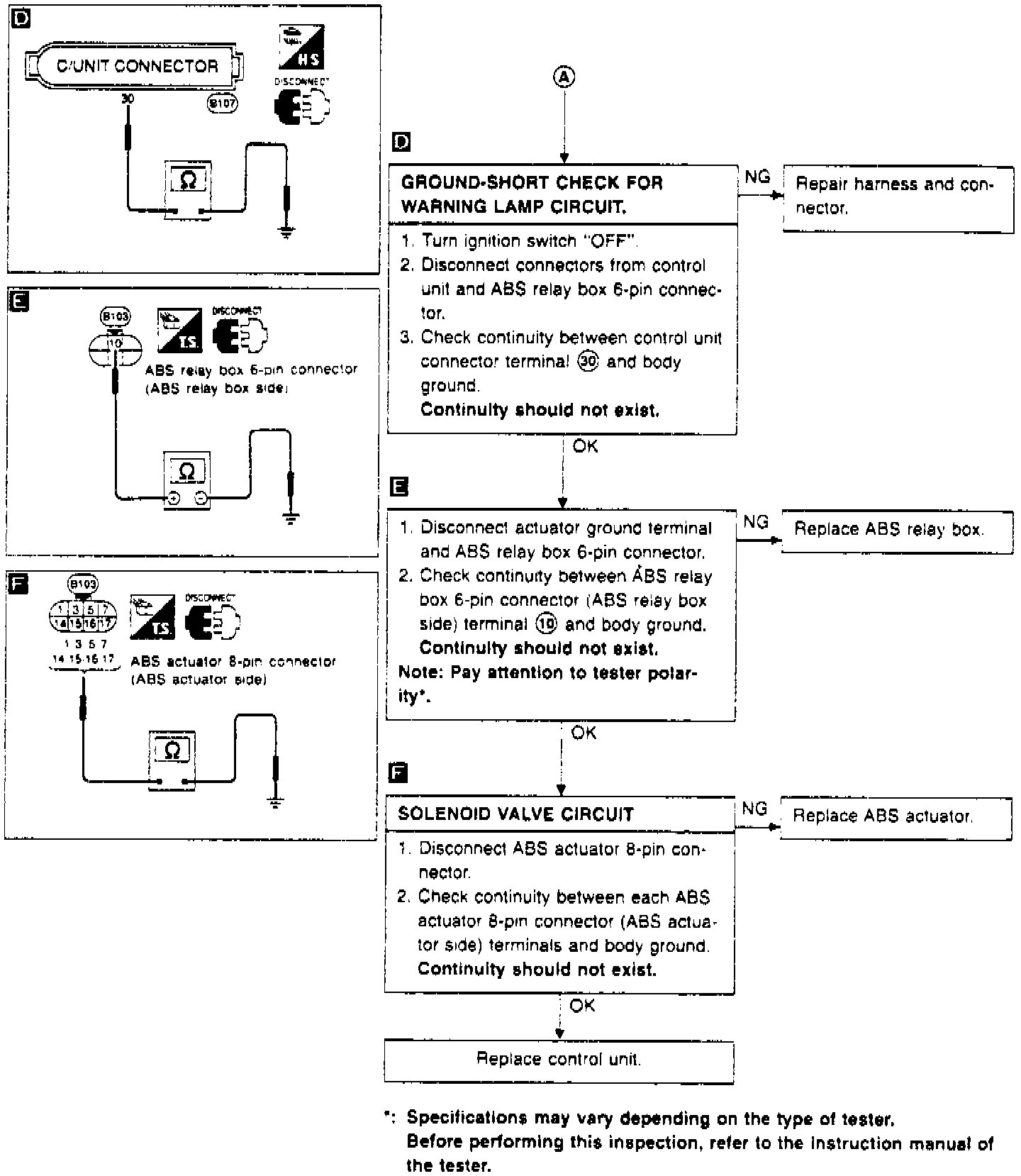

Fig. 142 Test 2: Warning Light Stays On When Ignition Switch Is Turned On (Part 2 Of 3):

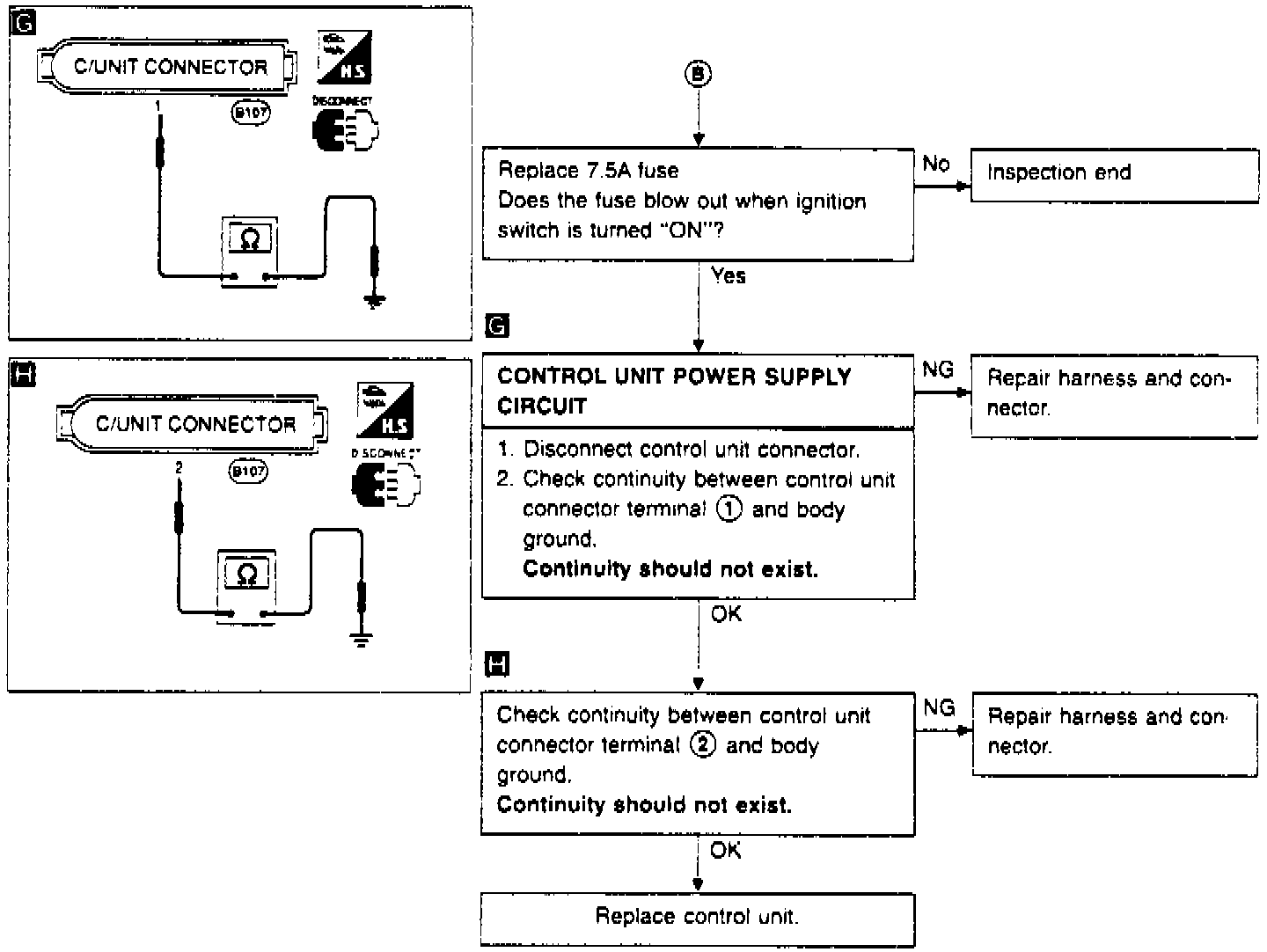

Fig. 142 Test 2: Warning Light Stays On When Ignition Switch Is Turned On (Part 3 Of 3):
