Diagnostic Test Procedure 1

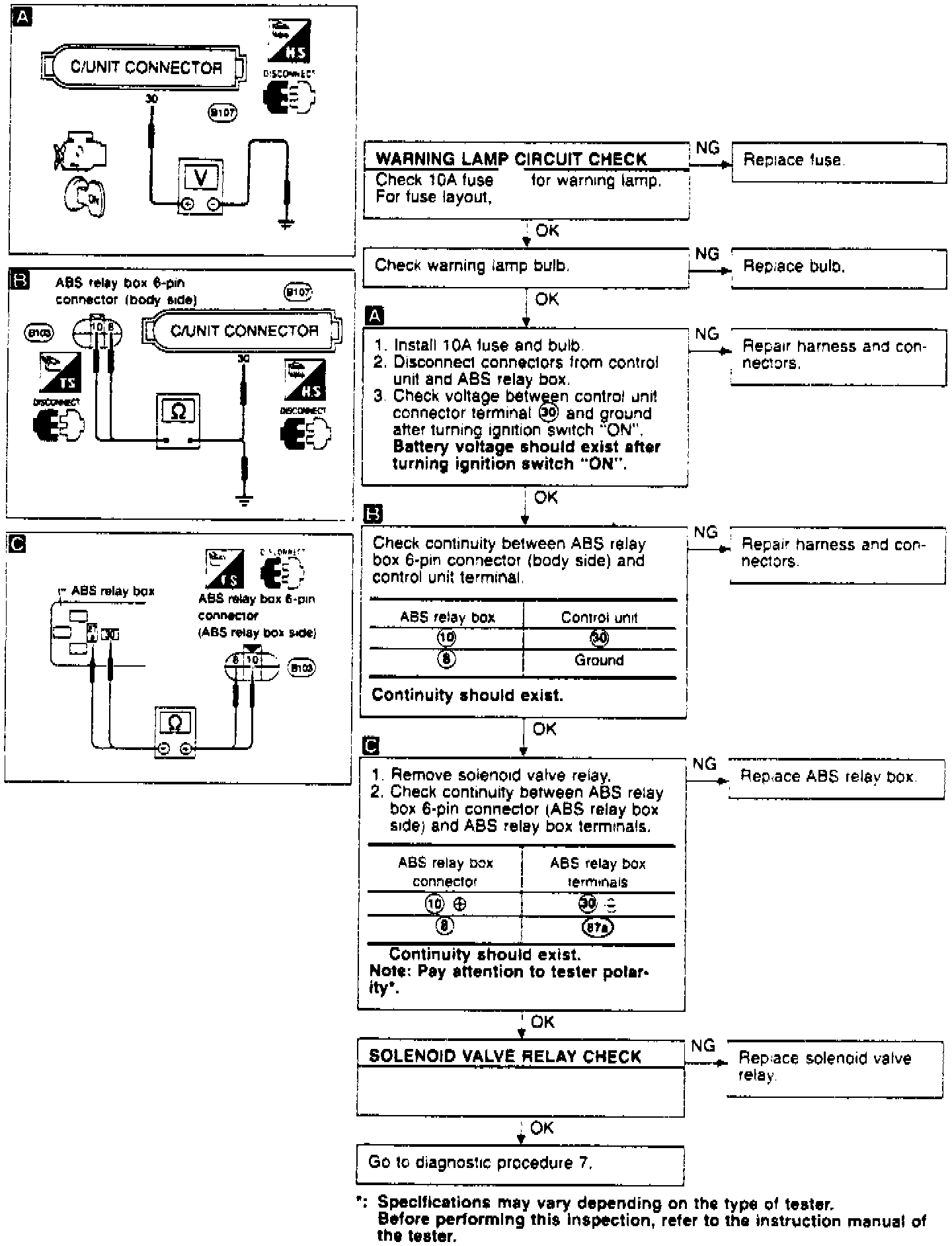

Fig. 141 Test 1: Warning Lamp Does Not Come On When Ignition Switch Is Turned On:
