Main Power Supply and Ground Circuit Check
Main Power Supply and Ground Circuit Check

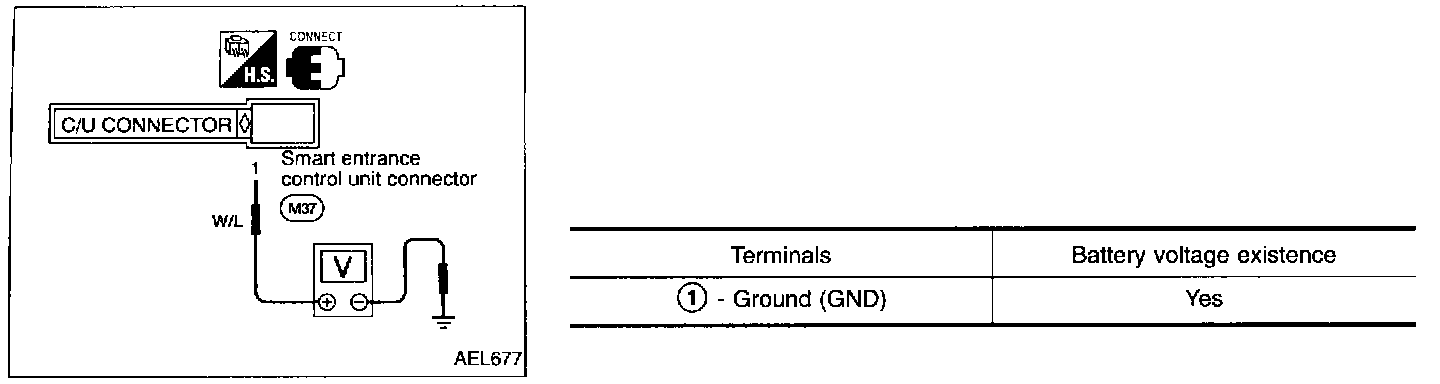

Main Power Supply For Smart Entrance Control Unit (SECU):

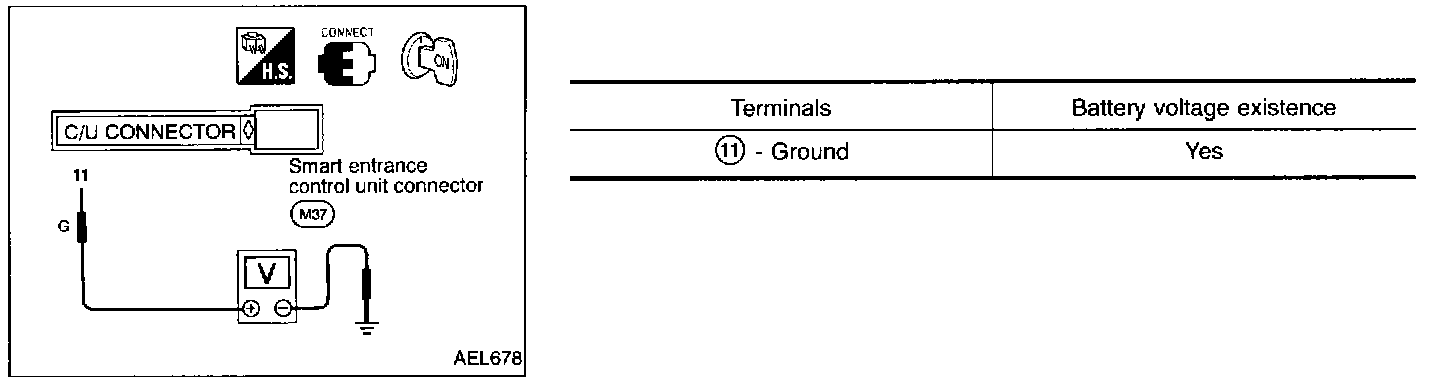

Main Power Supply While Ignition Switch Is "ON" Or "START" Position:
