Radio/Stereo: Service and Repair

1991-94

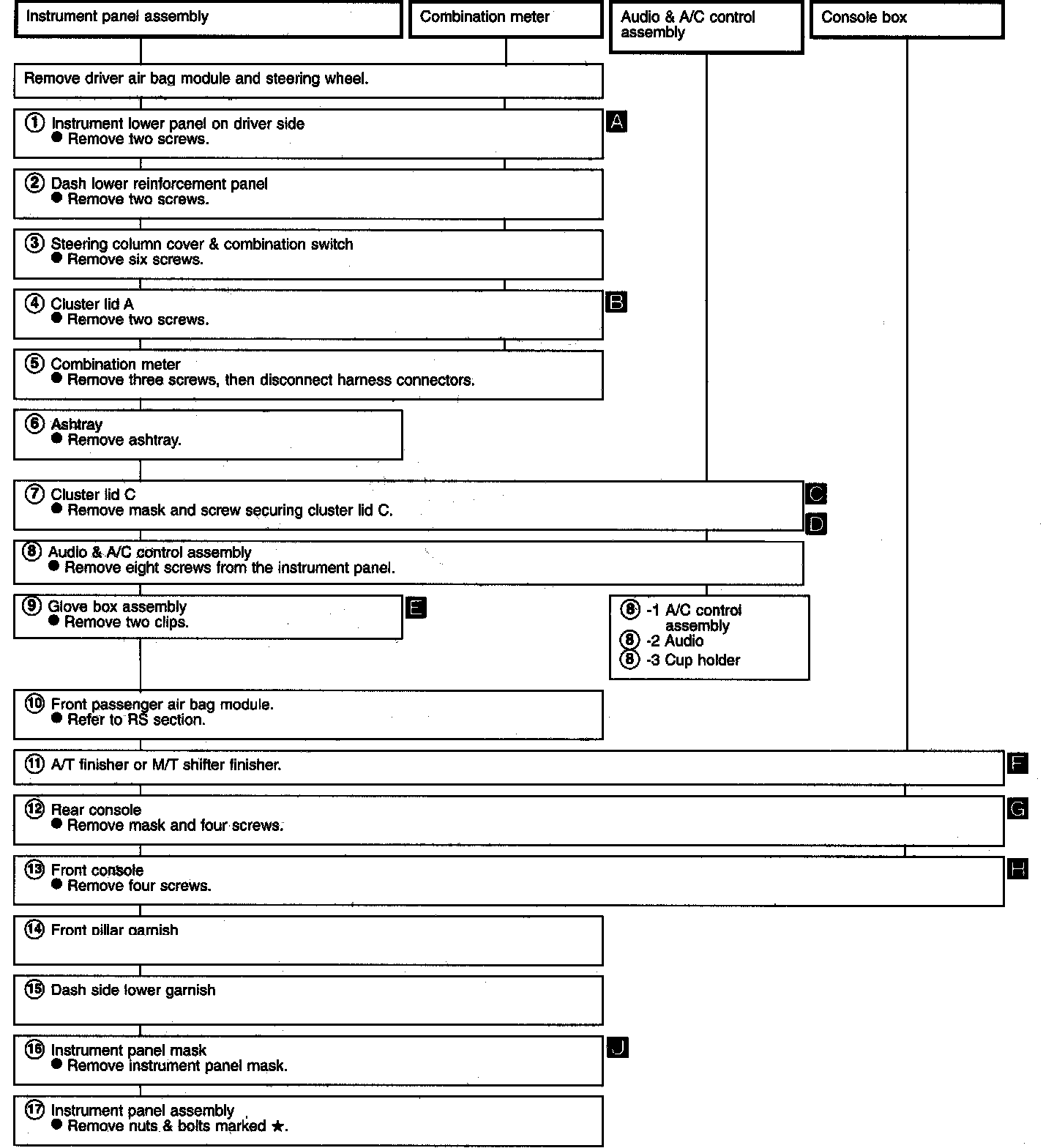

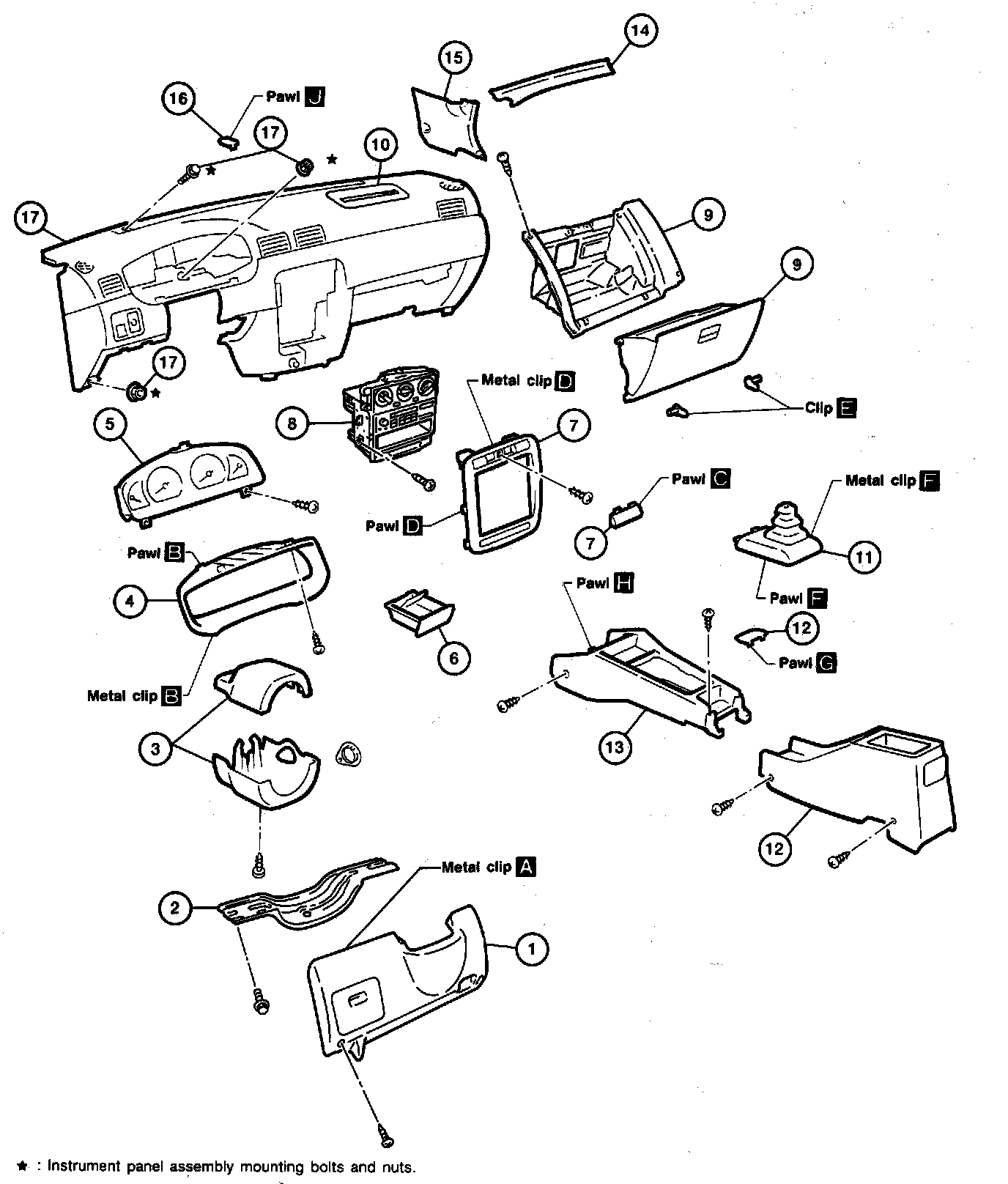

REMOVAL - Instrument panel assembly

1995-96

CAUTION:
- Disconnect both terminals from battery in advance.
- Disconnect air bag module connectors in advance.
Be careful not to scratch pad and other parts.




1. Disable airbag system as described under MAINTENANCE PROCEDURES/AIRBAG ARMING & DISARMING.
2. Remove cluster lid or instrument panel cover as necessary to gain access to brackets. Instrument Panel, Gauges and Warning Indicators
3. Remove radio bracket to instrument panel attaching screw.
4. Disconnect electrical leads from radio.
5. Remove radio from vehicle.
6. Reverse procedure to install, rearming airbag as described under MAINTENANCE PROCEDURES/AIRBAG ARMING & DISARMING.
