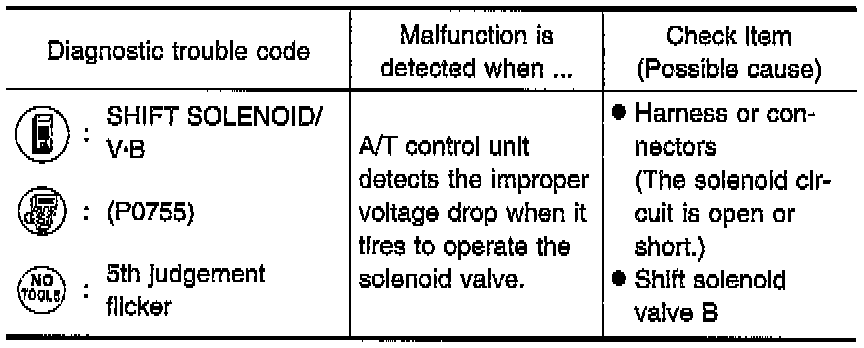

DTC 1201

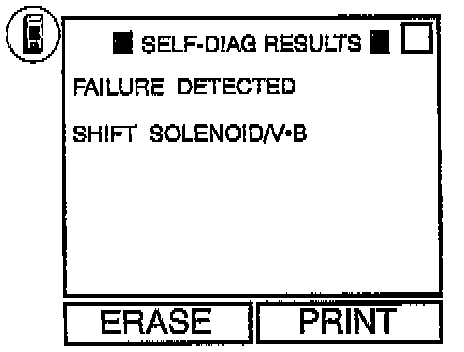

With Consult:




DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.




2. Select "SELF-DIAG RESULTS" mode with CONSULT.
3. Drive vehicle in D1-D2-D3 position.

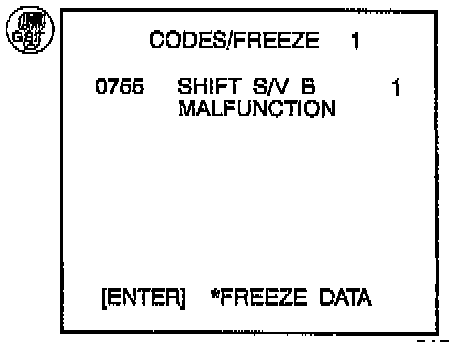

With GST:




DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.
2. Drive vehicle in D1-D2-D3 position.




3. Select "MODE 3" with Generic Scan Tool (GST).

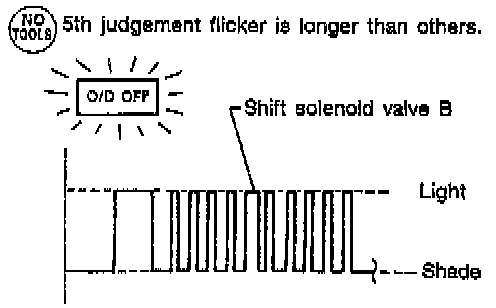

Without Consult:




DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.
2. Drive vehicle in D1-D2-D3 position.




3. Perform self-diagnosis.

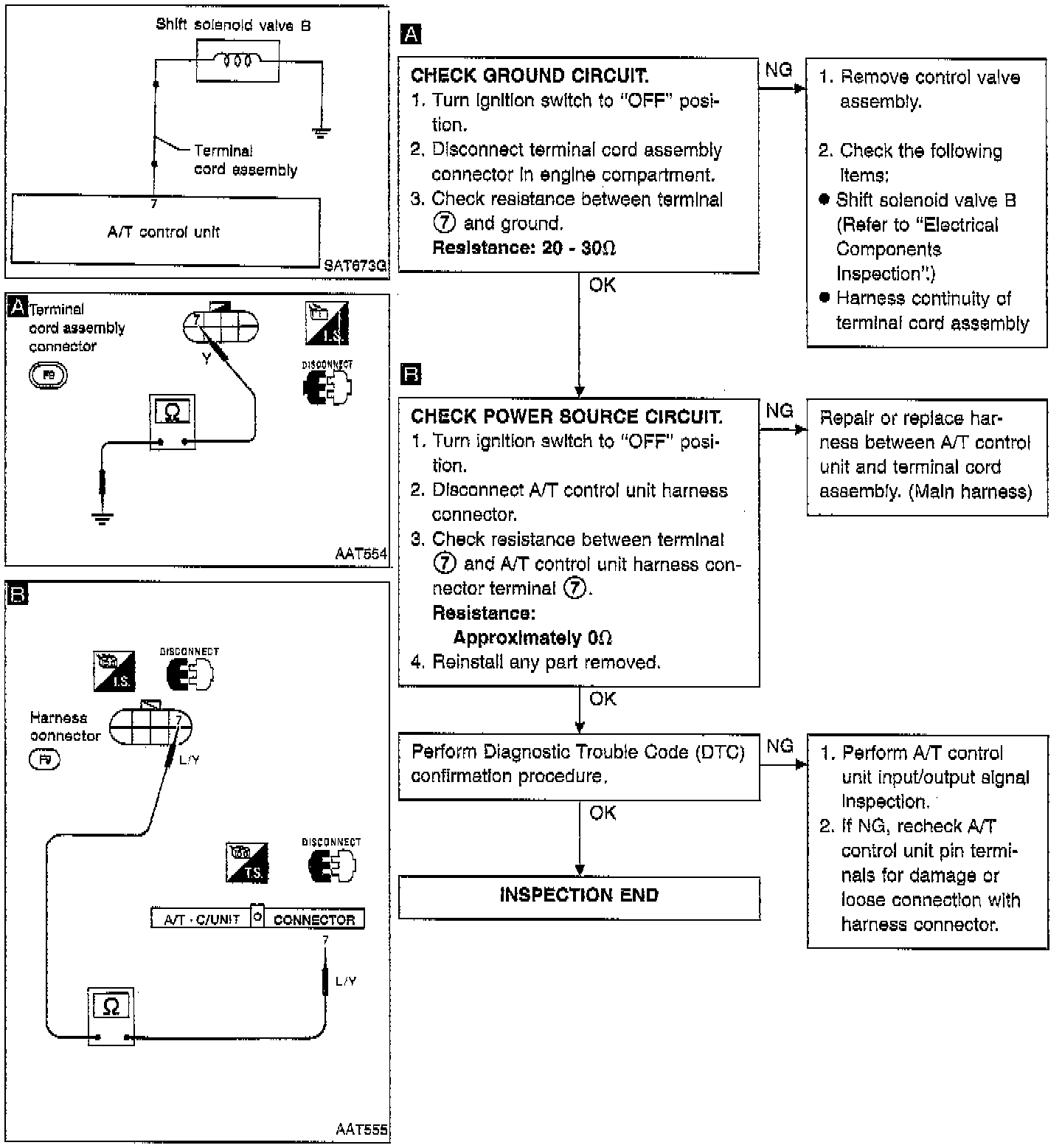

Diagnostic Procedure
