DTC 1101

With Consult:

OVERALL FUNCTION CHECK
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.

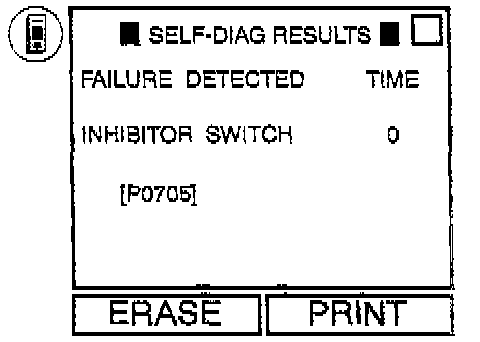

2. Select "SELF-DIAG RESULTS" mode for ECM with CONSULT.
3 Drive vehicle under the following conditions:
Shift lever in D, OD control switch in "OFF" position,vehicle speed higher than 10 km/h (6 MPH), throttle opening greater than 1/2 of the full throttle position and driving for more than 5 seconds.

With GST:

OVERALL FUNCTION CHECK
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.
2. Drive vehicle under the following conditions:
Shift lever in D, OD control switch in "OFF" position,vehicle speed higher than 10 km/h (6 MPH), throttle opening 1/2 of the full throttle position and driving for more than 5 seconds.

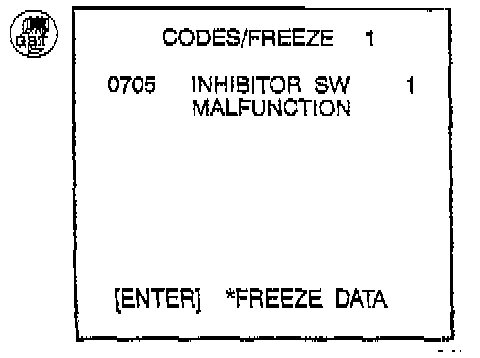

3. Select "MODE 3" with Generic Scan Tool (GST).

Without Consult:

OVERALL FUNCTION CHECK
After the repair, perform the following procedure to confirm the malfunction is eliminated.
1. Start engine.
2. Drive vehicle under the following conditions:
Shift lever in D, OD control switch in "OFF" position,vehicle speed higher than 10 km/h (6 MPH), throttle opening greater than 1/2 of the full throttle position and driving for more than 5 seconds.
3. Perform self-diagnosis for Engine Control Module (ECM).

Diagnostic Procedure:

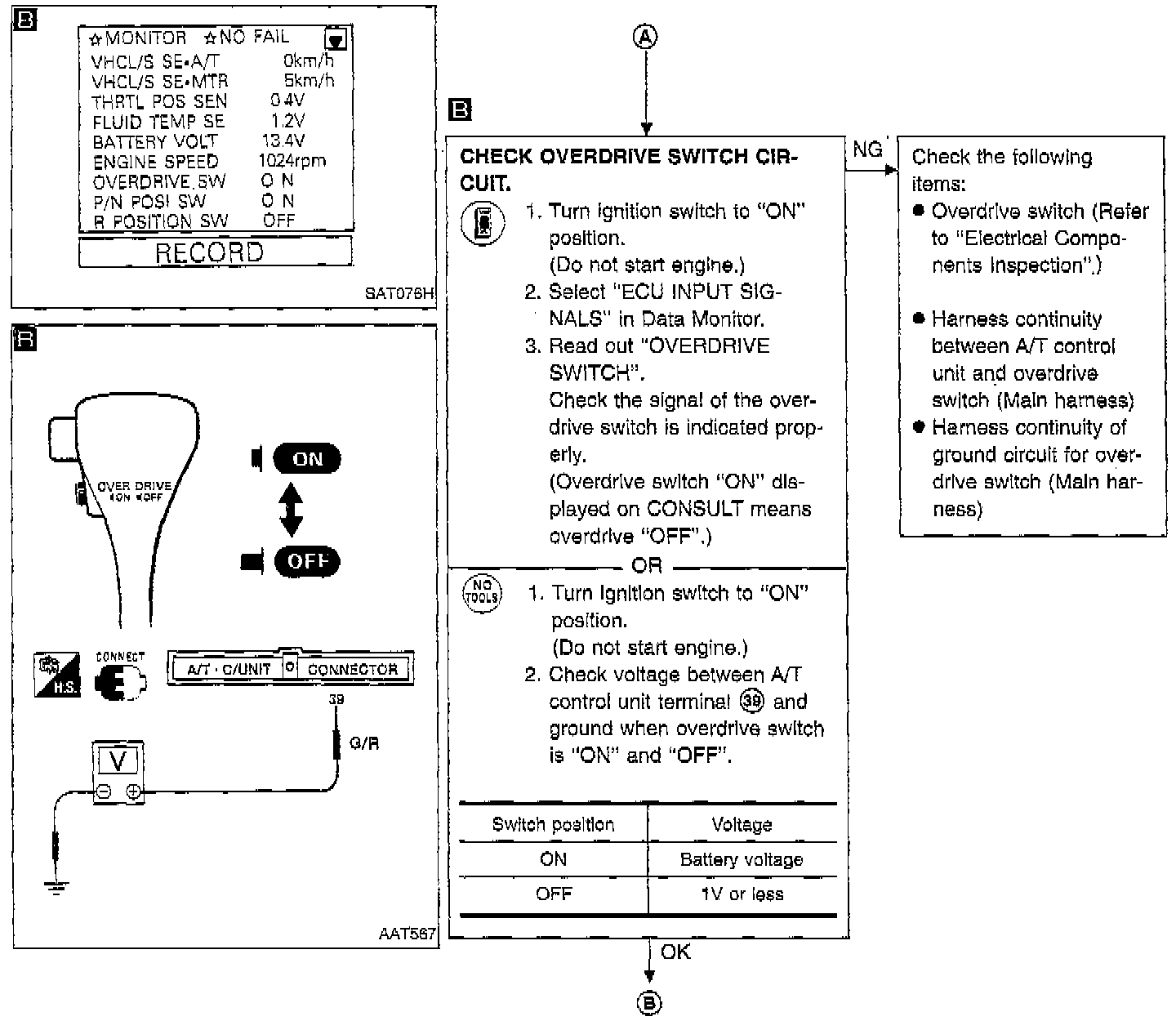

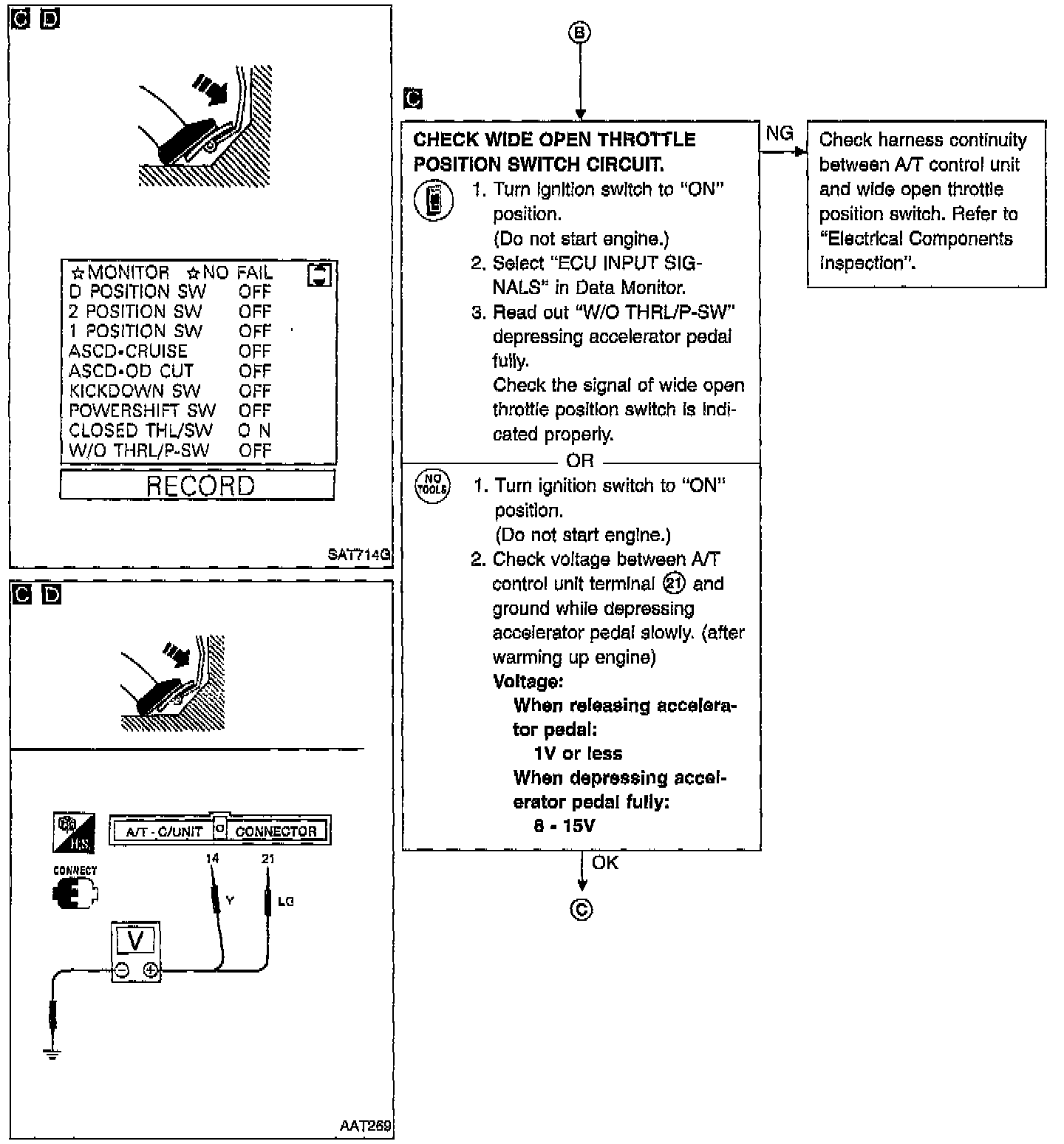

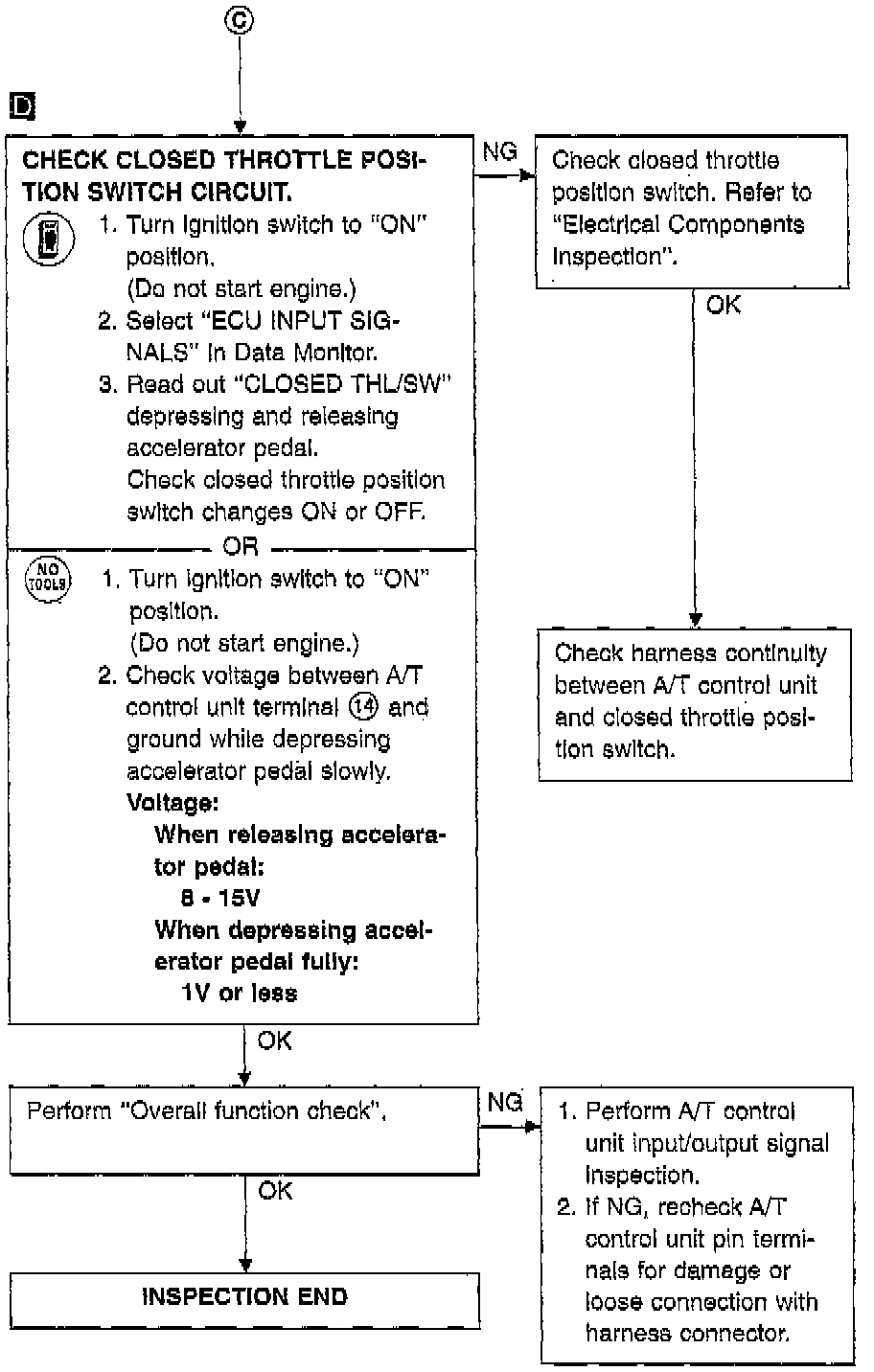

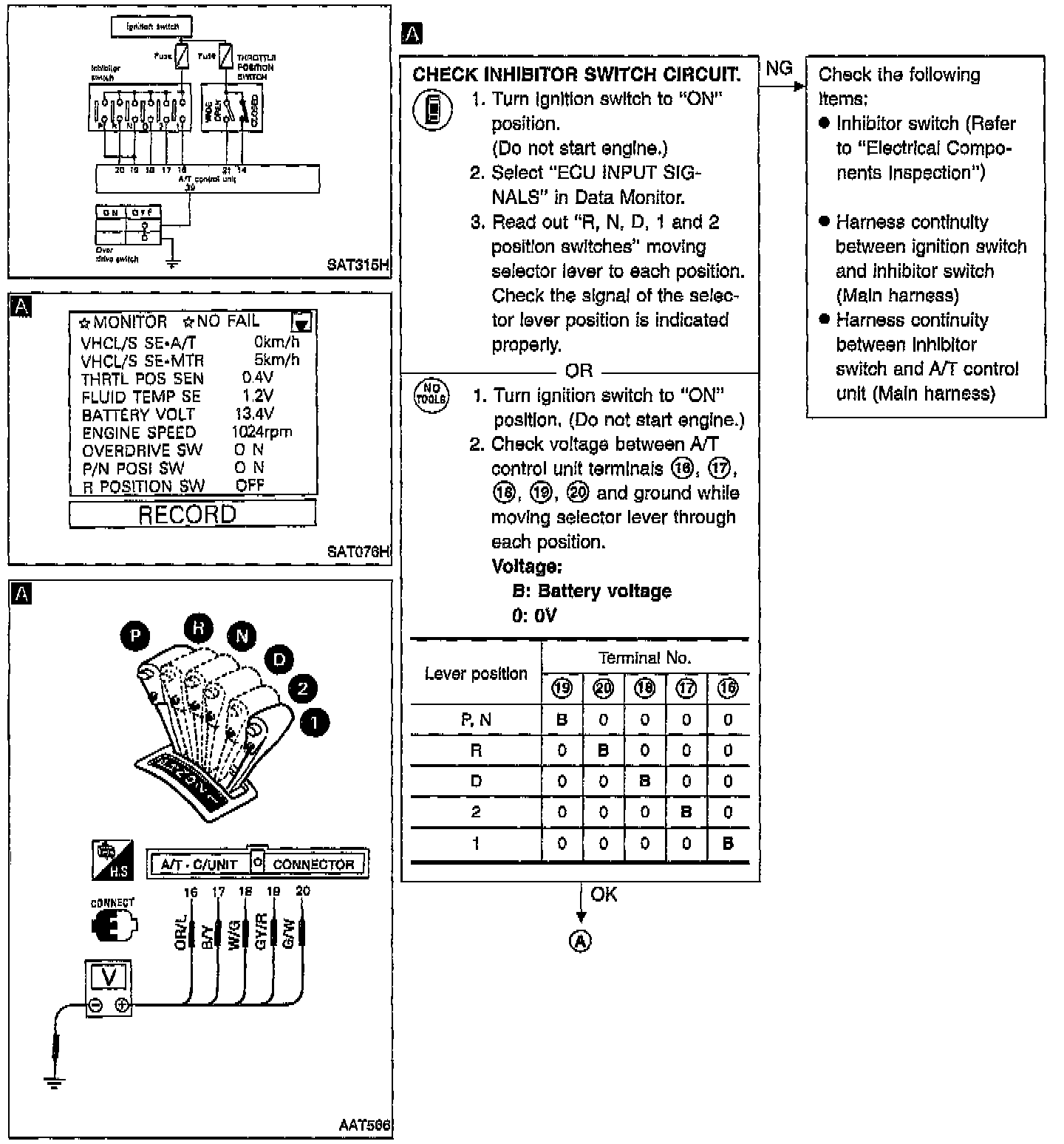

INHIBITOR, OVERDRIVE AND THROTTLE POSITION SWITCH CIRCUIT CHECKS
