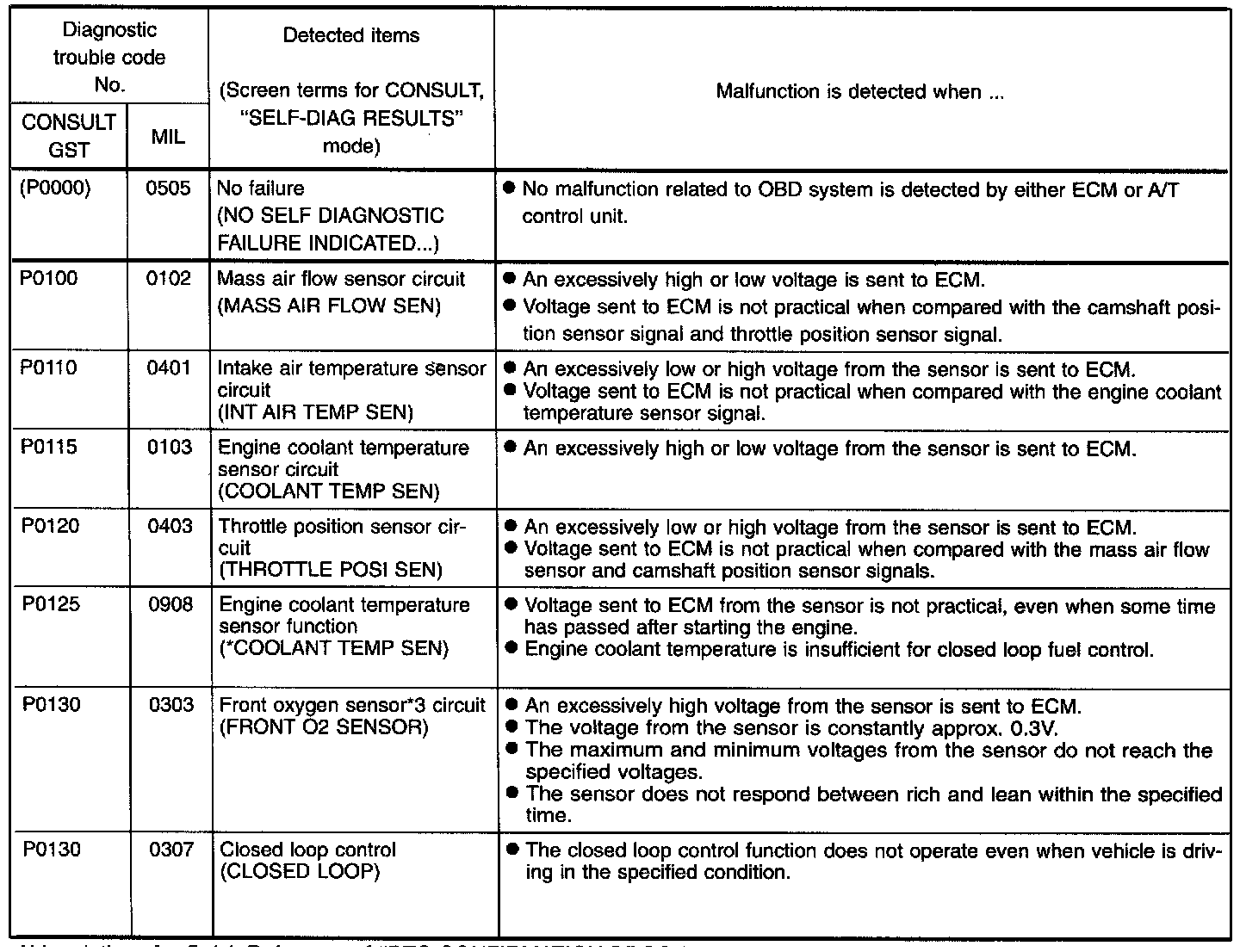

DTC P0000 (0505) Thru P0130 (0303)

ENGINE RELATED ITEMS
Abbreviations for Quick Reference of "DTC CONFIRMATION PROCEDURE"

IGN: ON:
Turning the ignition switch ON is required for the ECM to detect a malfunction (if one exists).
RUNNING:
Running engine is required for the ECM to detect a malfunction (if one exists).
LIFTING:
Lifting up the vehicle, running engine and spinning wheels are required for the ECM.
DRIVING:
- Driving the vehicle in the specified pattern is required for the ECM.

Abbreviations for Quick Reference of "OVERALL FUNCTION CHECK"
IGN: ON:
Turning the ignition switch ON is required for checking the function of the sensor, switch, solenoid and circuit.
RUNNING:
Running engine is required for checking the function of the sensor, switch, solenoid and circuit.
LIFTING:
Lifting up the vehicle, running engine and spinning wheels are required.
DRIVING:
Driving the vehicle in the specified pattern is required.

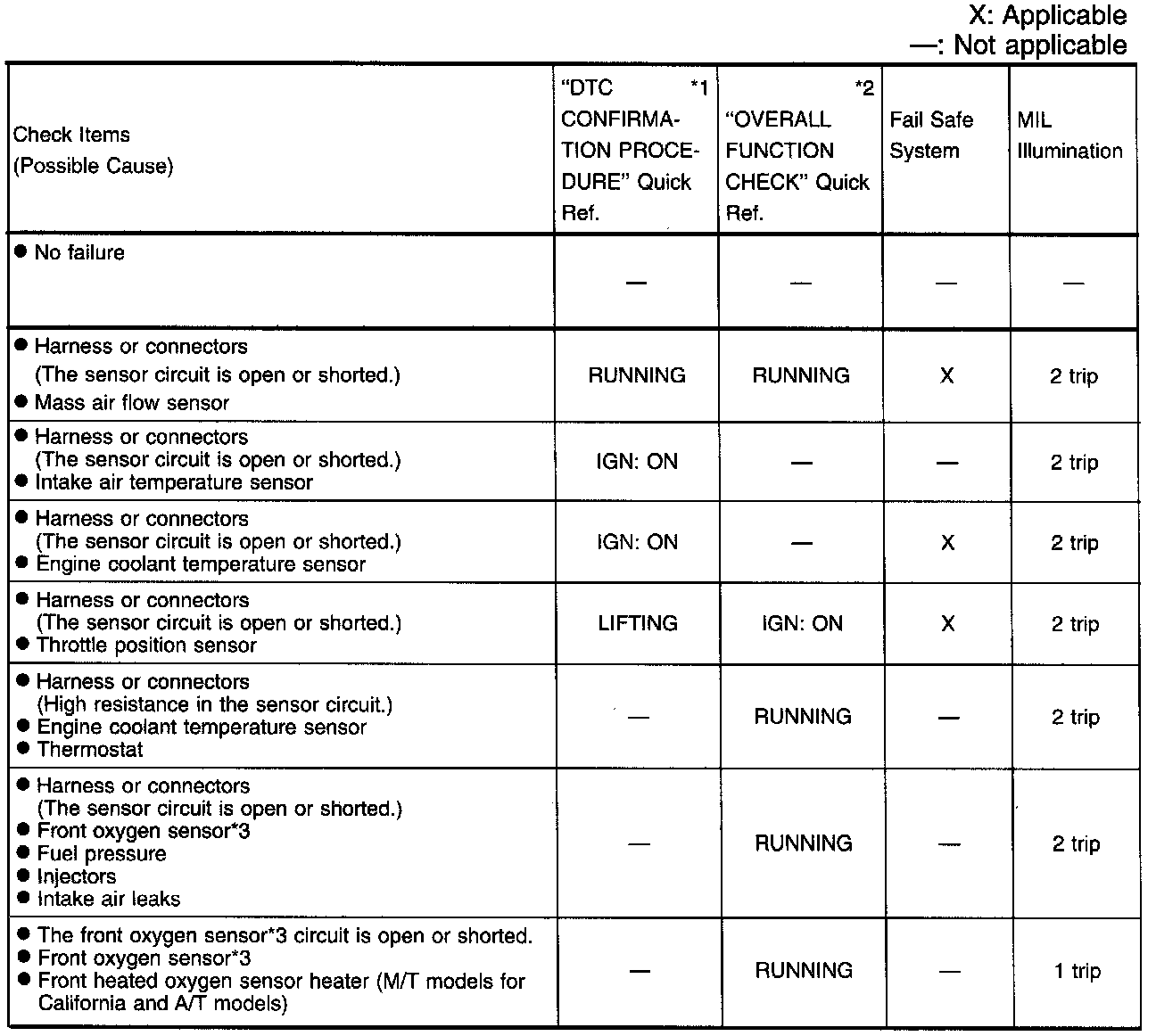

*3: Oxygen sensor (M/T models except for California), Heated oxygen sensor (M/T models for California and A/T models)




*1: This is Quick Reference of "DTC CONFIRMATION PROCEDURE". Details are described in each TROUBLE DIAGNOSIS FOR DTC PXXXX.
*2: The "OVERALL FUNCTION CHECK" is a simplified and effective way to inspect a component or circuit.
In some cases, the "OVERALL FUNCTION CHECK" is used rather than a "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE".
When no DTC CONFIRMATION PROCEDURE is available, the "NG" result of the OVERALL FUNCTION CHECK can be considered to mean the same as a DTC detection.
- During an "NG" OVERALL FUNCTION CHECK, the DTC might not be confirmed.
- This is Quick Reference of "OVERALL FUNCTION CHECK".
Details are described in each TROUBLE DIAGNOSIS FOR DTC PXXXX.
