Under -Rail Bed Liner RE-Positioning

1. Remove all cargo from the bed.

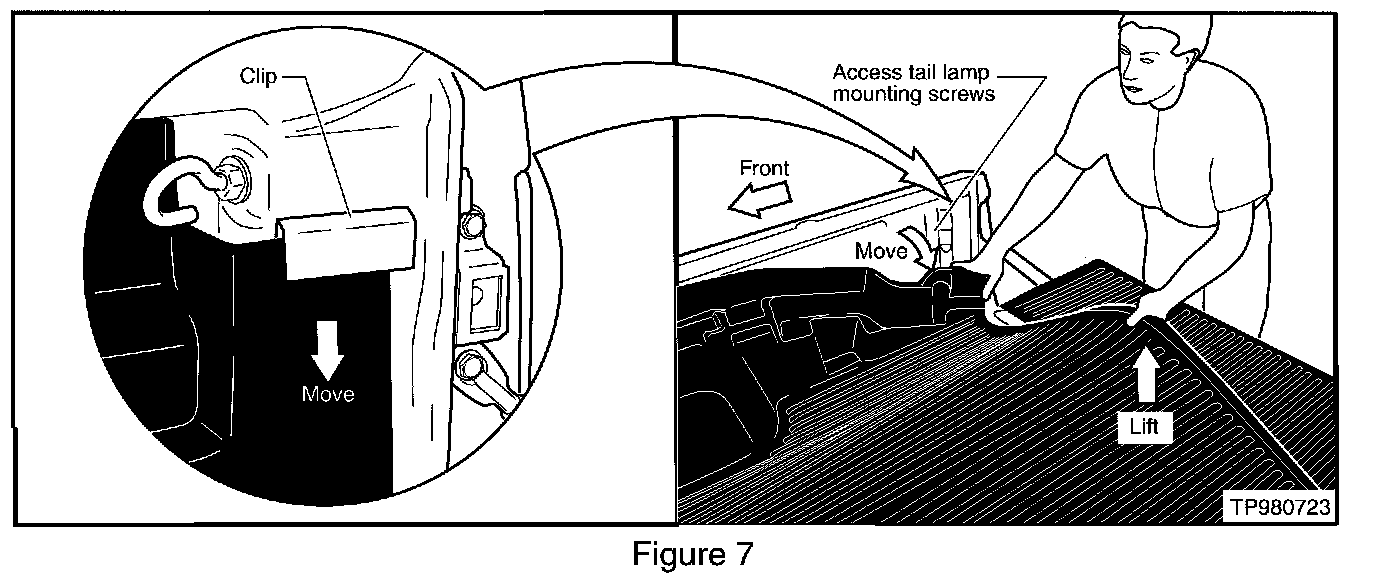

2. Lift the center rear floor of the bed liner and simultaneously pull the side of the bed liner down and out from under the bed rail, and out of the clip if used (see Figure 7).

3. Re-position the upper rear portion of the bed liner towards the center of the bed to gain access to the tail lamp mounting screws (see Figure 7).

4. Once the tail lamp harness replacement is complete, place the bed liner in its original position.
