Captured Over-Rail Bed Liner RE-Positioning

Captured Over-Rail Bed Liner Re-positioning (with cap/camper shell, tool box, etc.)

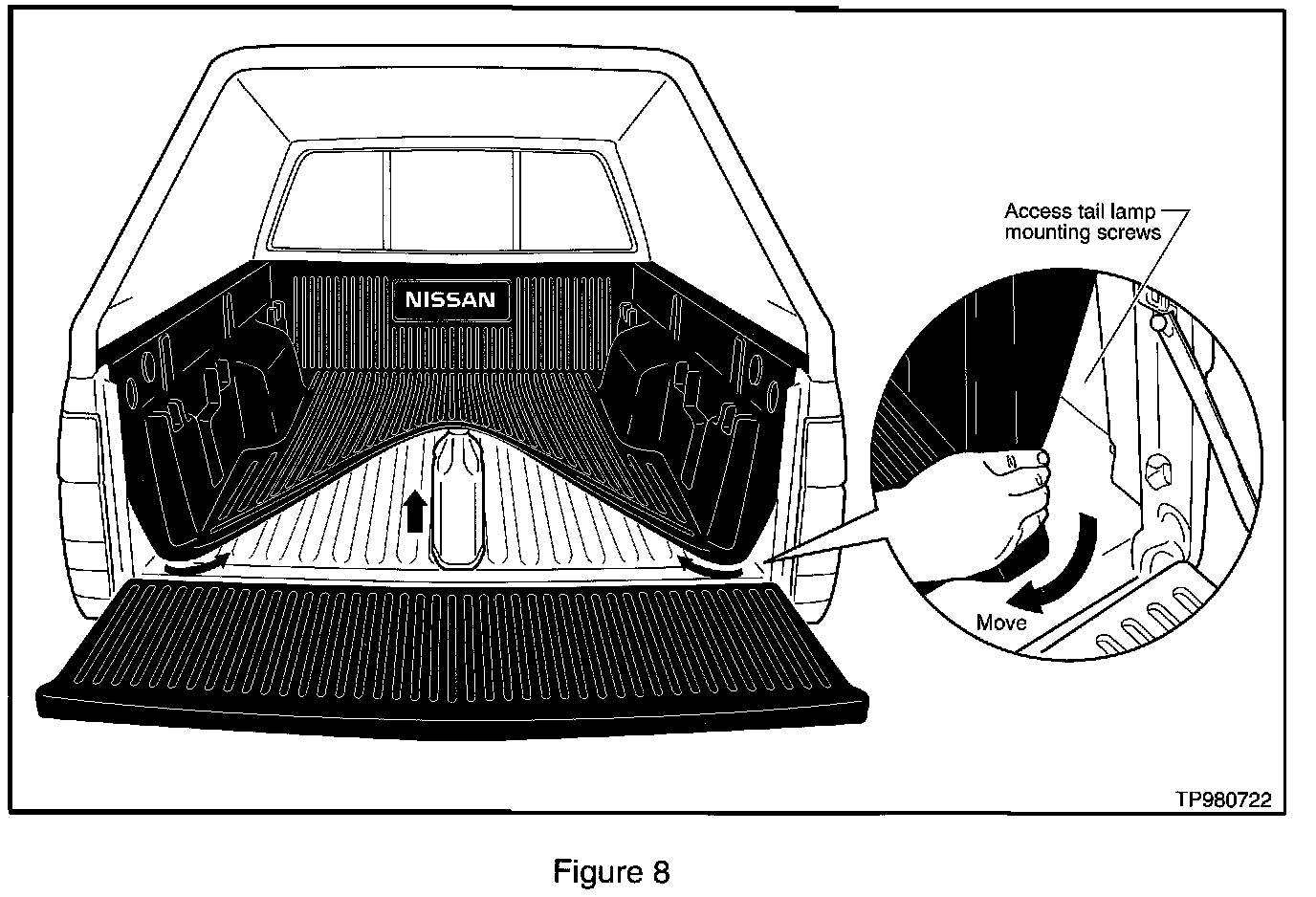

1. Lift the rear center of the bed liner approximately 20 inches and place a non-abrasive support object under the liner (see Figure 8).

2. Re-position the lower rear side of the liner towards the center of the bed to gain access to the tail lamp mounting screws (see Figure 8).

3. Once the tail lamp harness replacement is complete, place the bed liner in its original position.

Quality Control Check

Confirm all lights are operating:

^ Left and right turn indicators

^ Left and right tail lamps

^ Left and right stop lamps

^ High mounted stop lamp Back up lamps
