Audio - Installation Adapter Harness

Classification:
EL94-012

Section:
Electrical

Reference:
TECHNICAL BULLETIN NTB94-087

Models:
See Below

Date:
September 6, 1994

1995 VEHICLES AUDIO ADAPTER HARNESS

APPLIED MODEL:
1995 Model Year Vehicles Except Quest

SERVICE INFORMATION

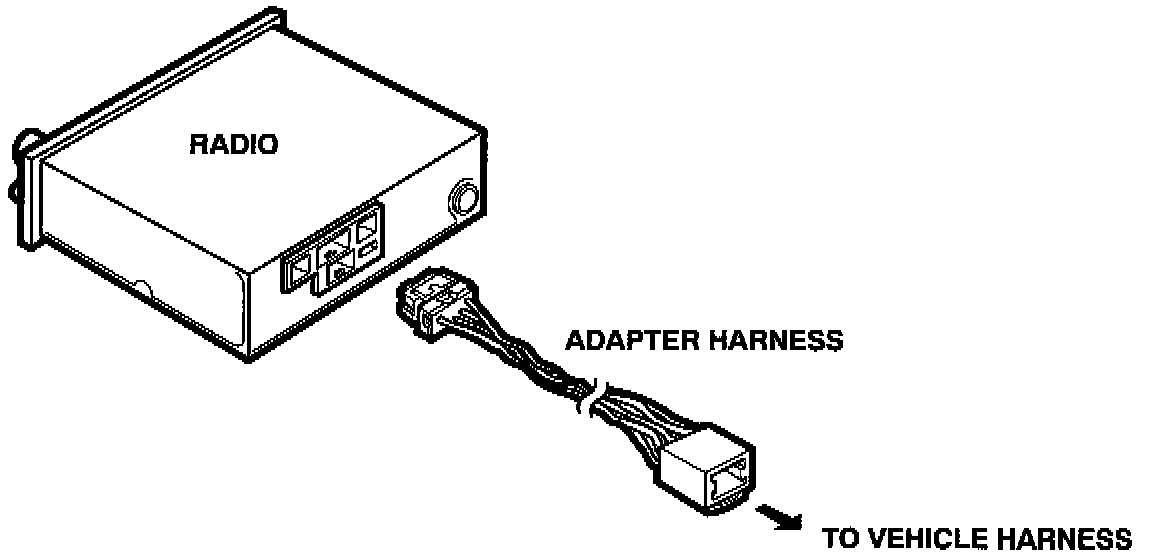

The Factory radio connector has changed for the 1995 model year vehicles. An adapter harness has been developed to connect the "NS" (New Style) Factory harness connector to a previous style radio which has an "S" (Previous Style) radio connector.

SERVICE PROCEDURE





This adapter, P/N 24028-OJ300, must be used if installing a radio with a Previous Style connector into a 1995 model year or newer vehicle.

PARTS INFORMATION

DESCRIPTION PART # QUANTITY
Adapter Harness 24028-OJ300 1
