Engine Control Module

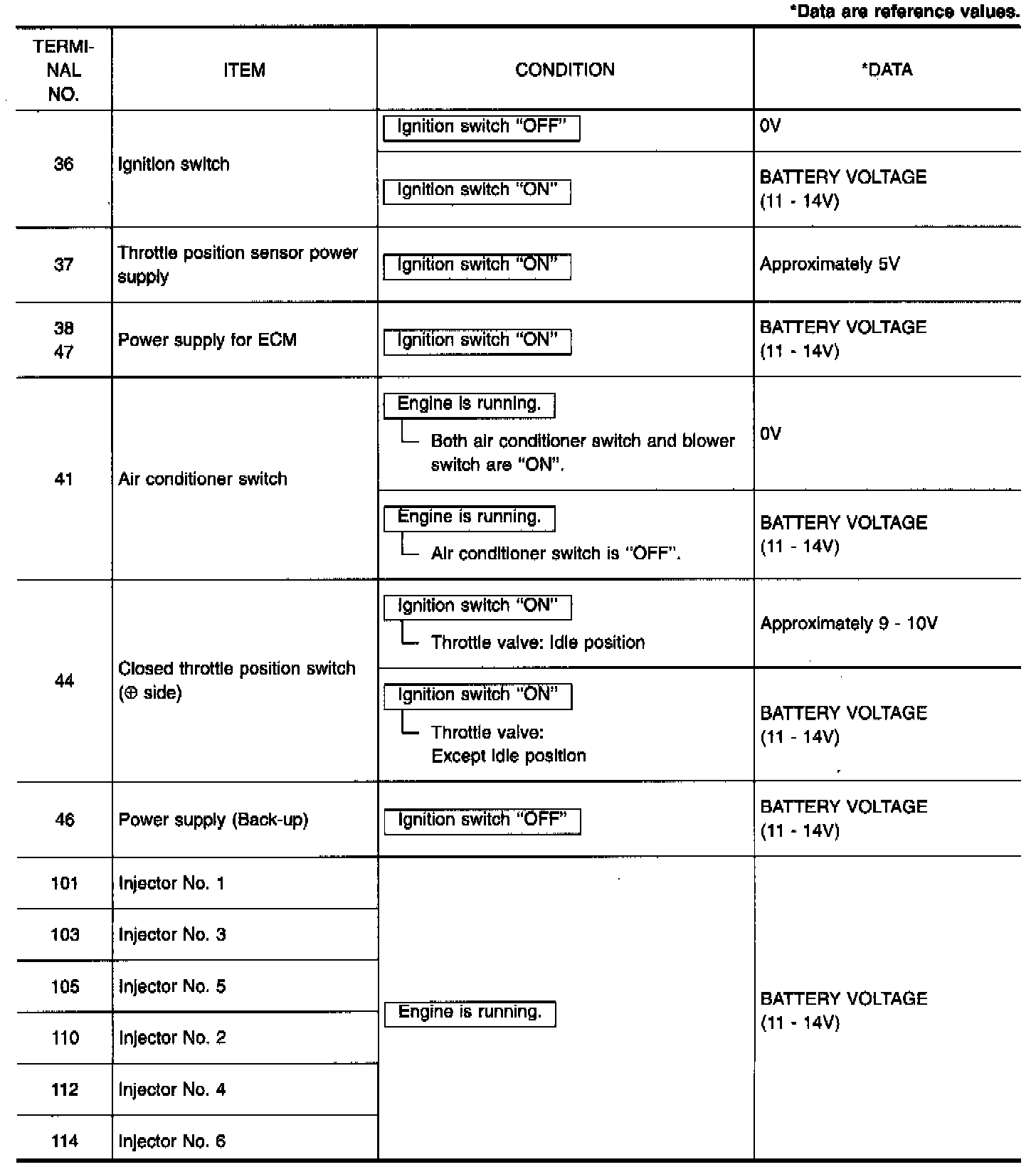

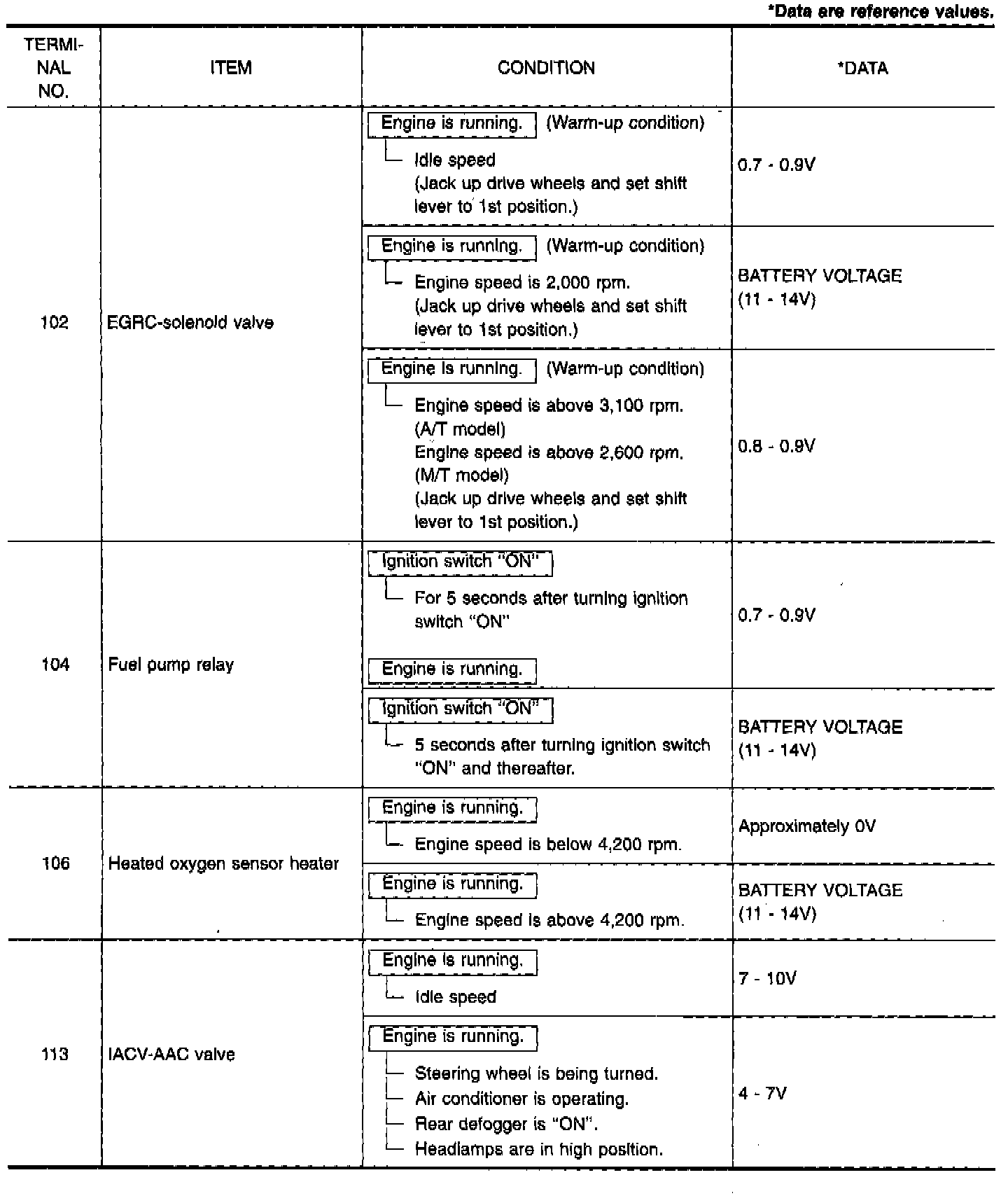

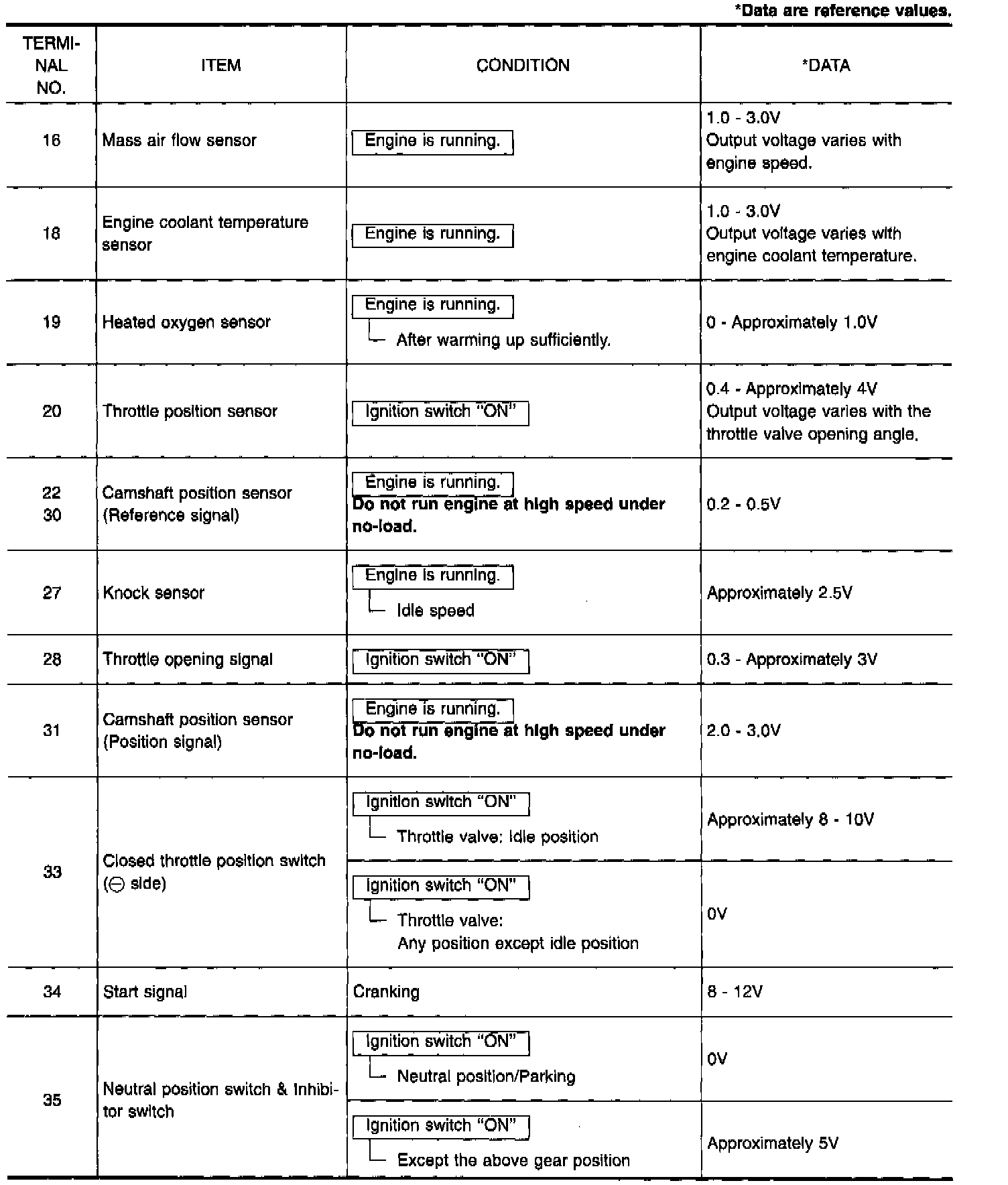

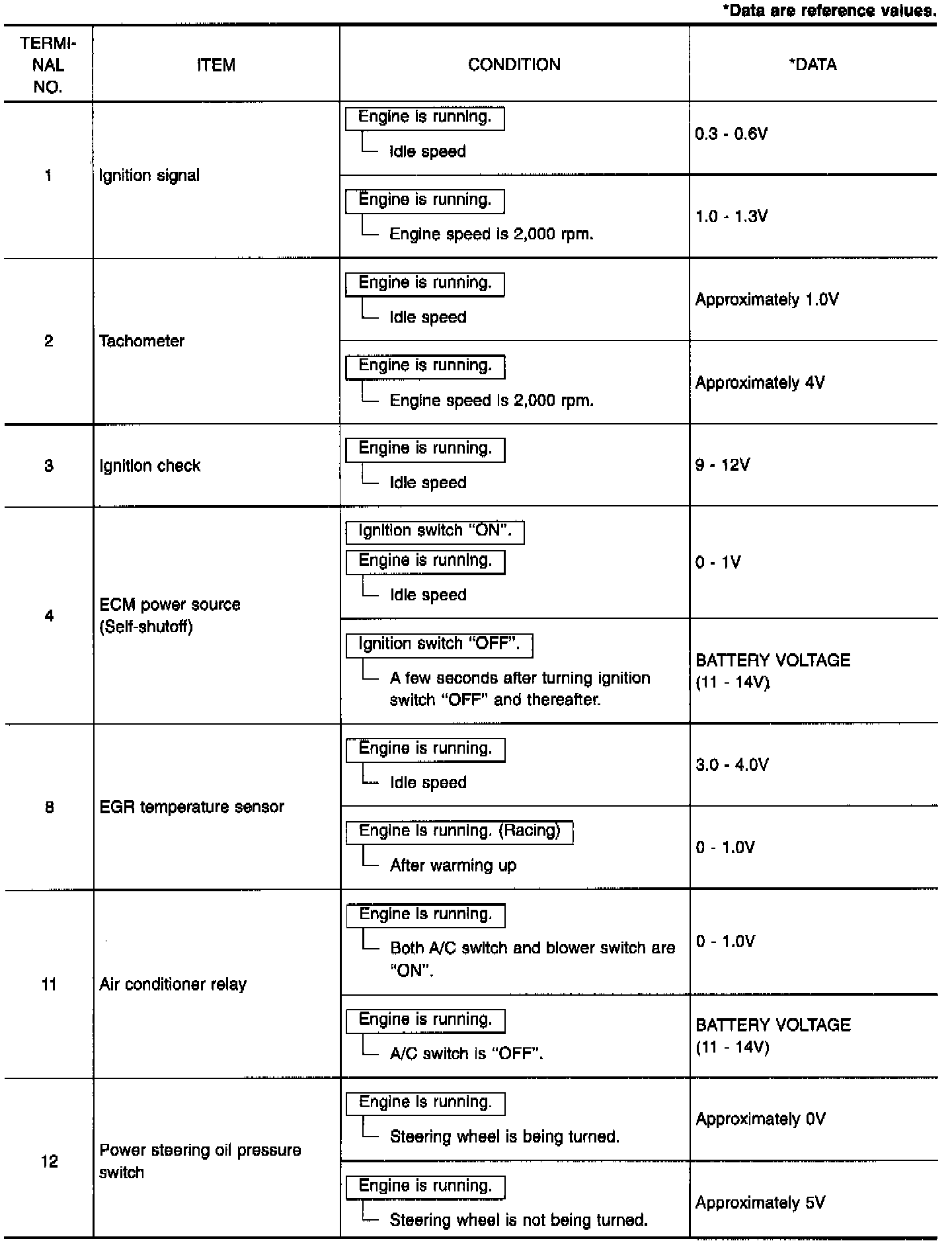

EXPECTED PIN VOLTAGES




ECM TERMINAL ID

NOTE: Testing of circuit voltages can be done at the ECM connector by CAREFULLY backprobing the connector. Use a high-quality digital DVOM.
