Home >> Nissan-Datsun >> 1995 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Manual Air Conditioning

Manual Air Conditioning

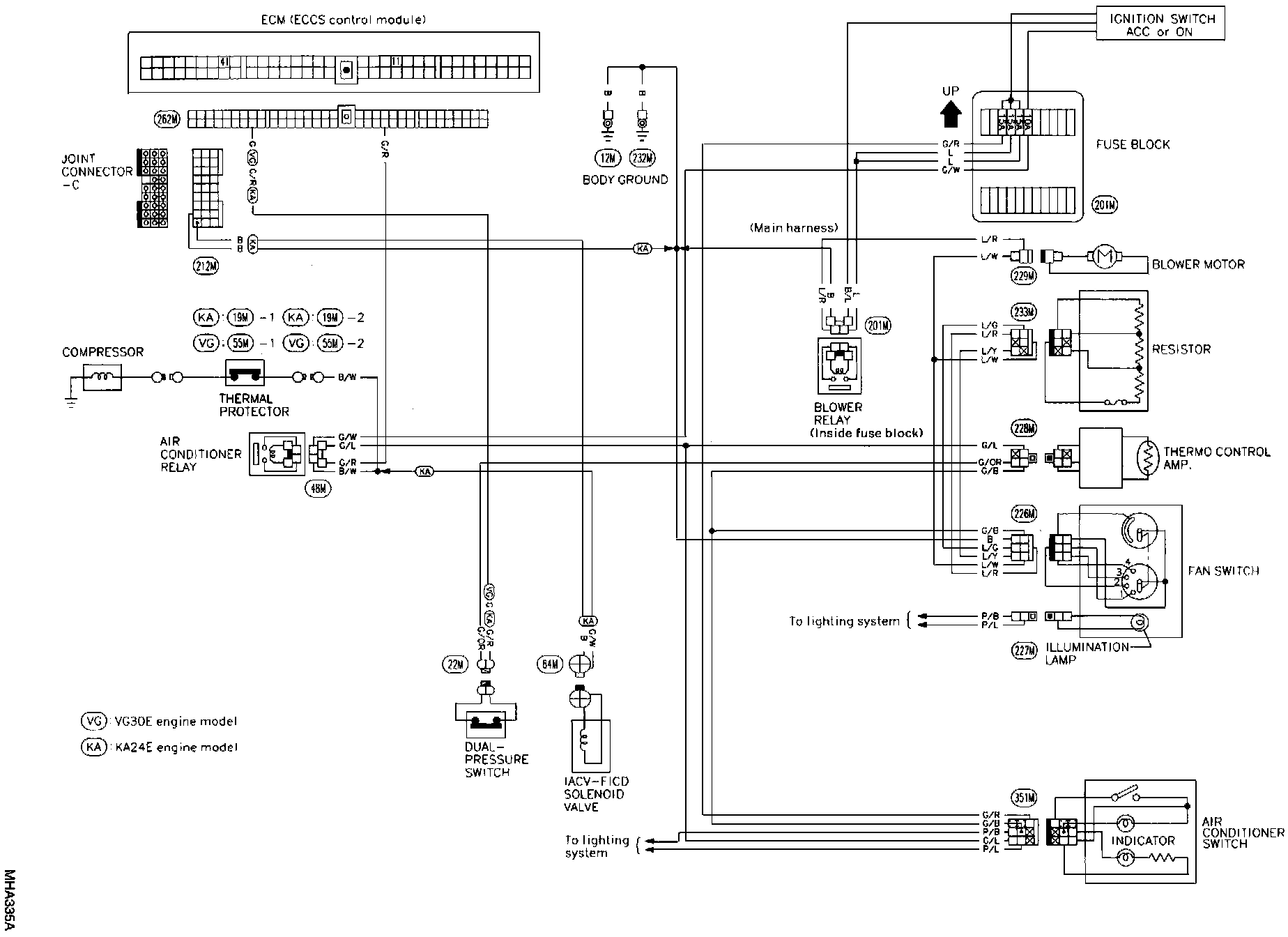

Manual Air Conditioner Wiring Diagram:
