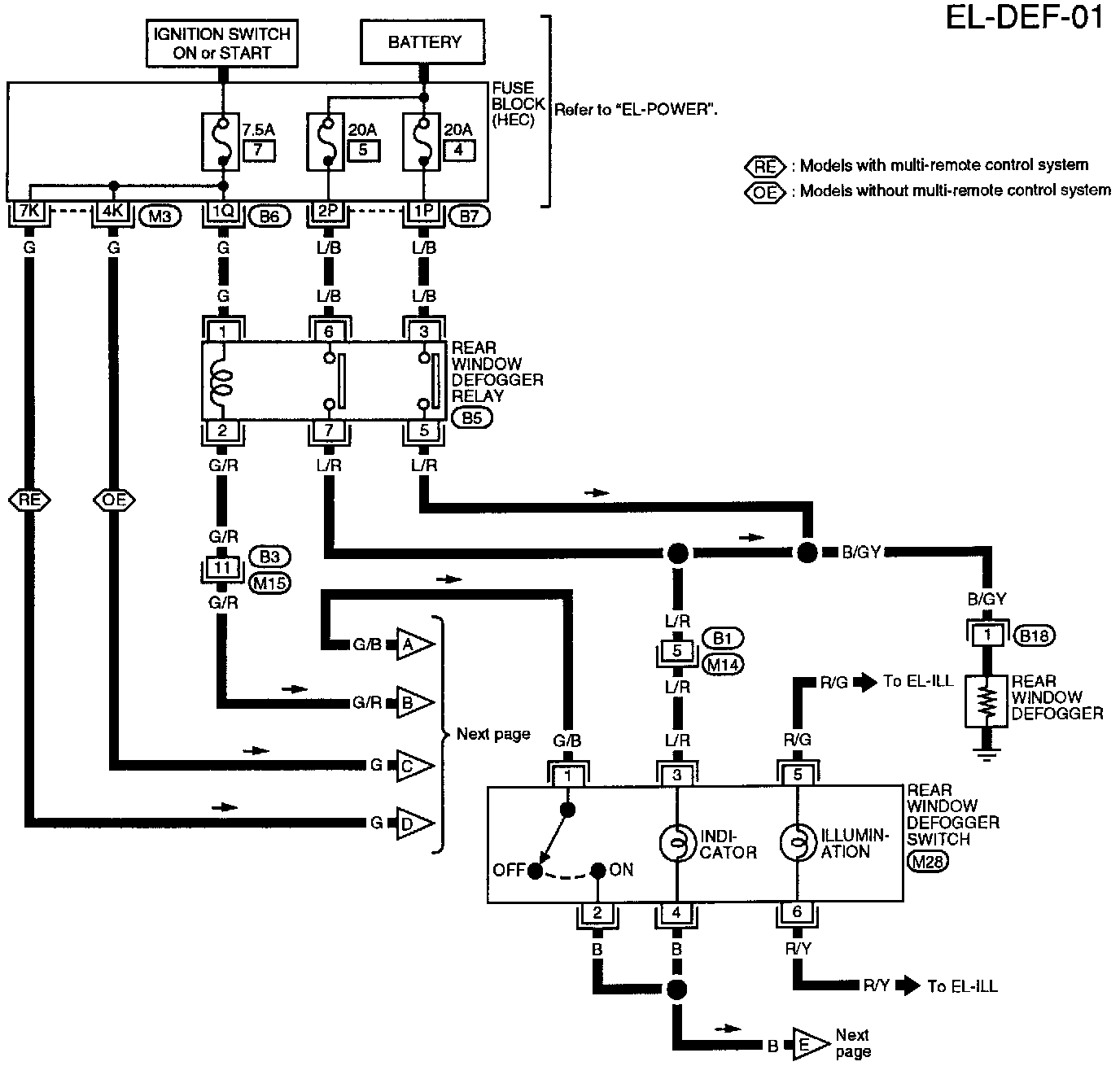

EL-DEF-01 Rear Window Defogger-Wiring Diagram (Part 1 Of 2):

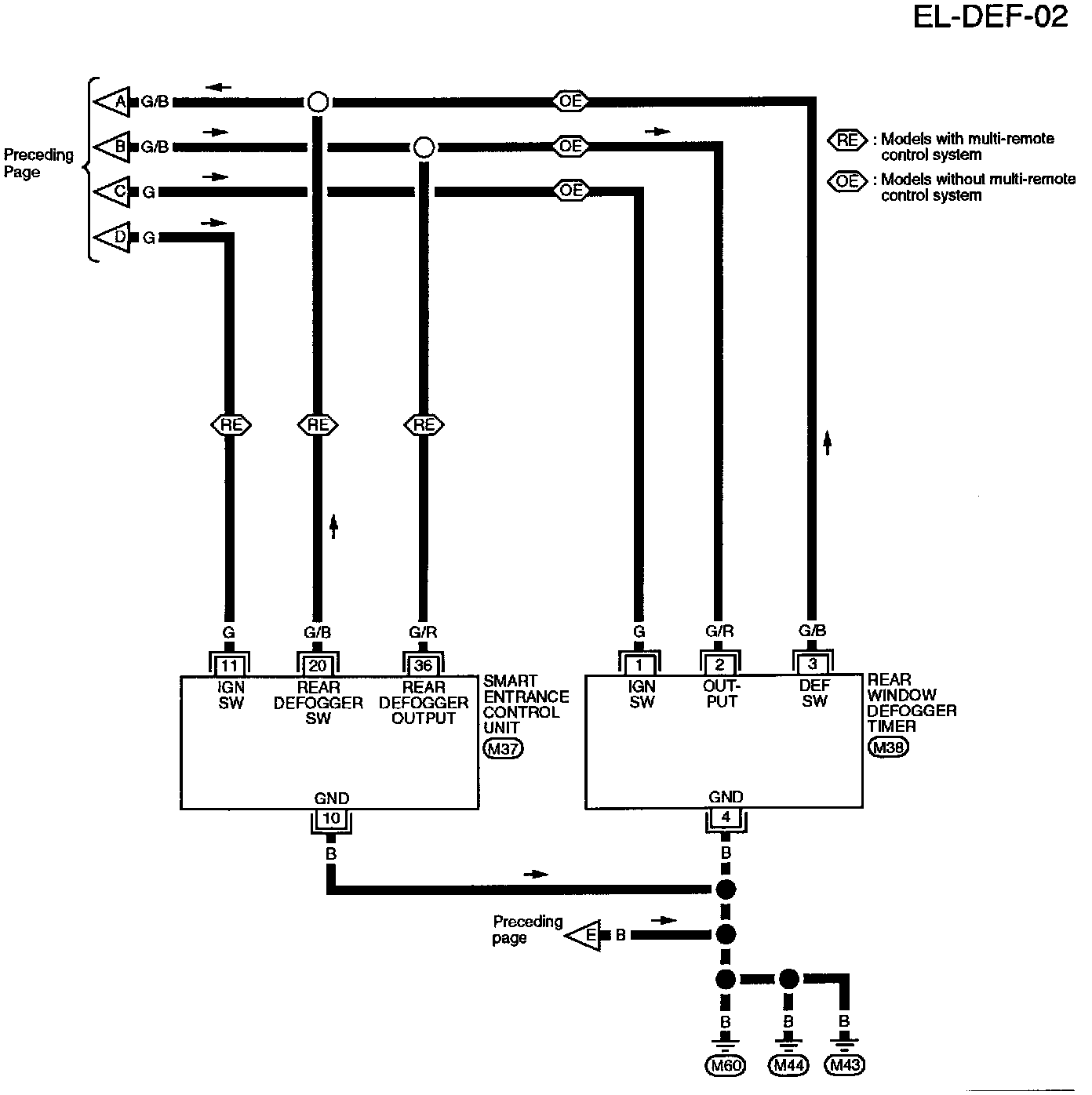

EL-DEF-02 Rear Window Defogger-Wiring Diagram (Part 2 Of 2):
