Mainshaft Front Bearing Outer Race and Oil Channel

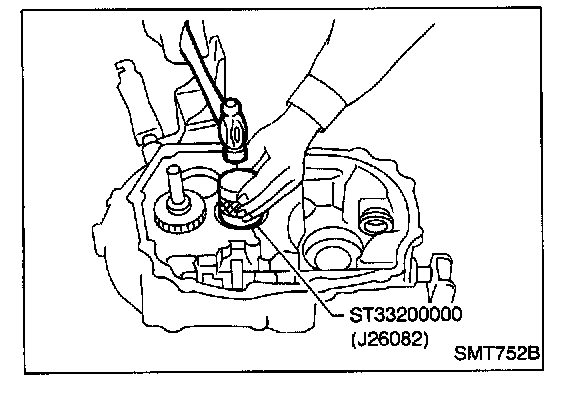

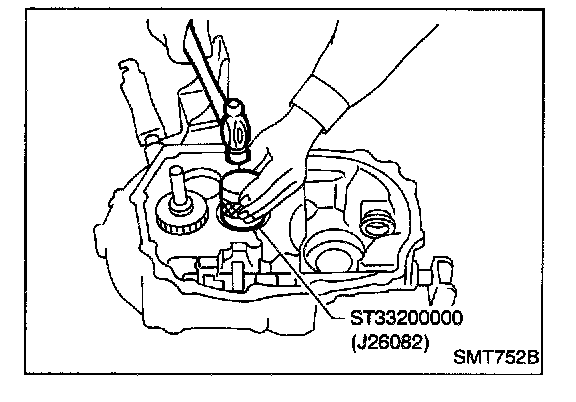

1. Remove mainshaft front bearing outer race with tool.
2. Remove oil channel.




3. Install oil channel.

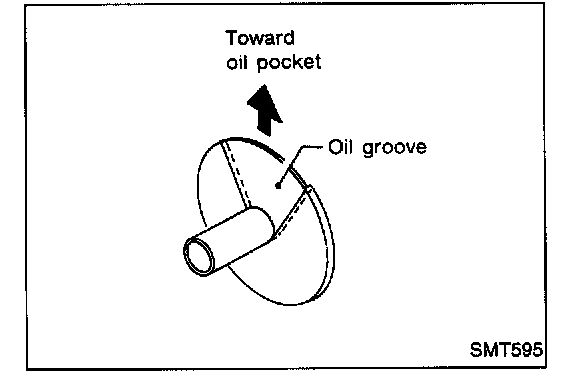

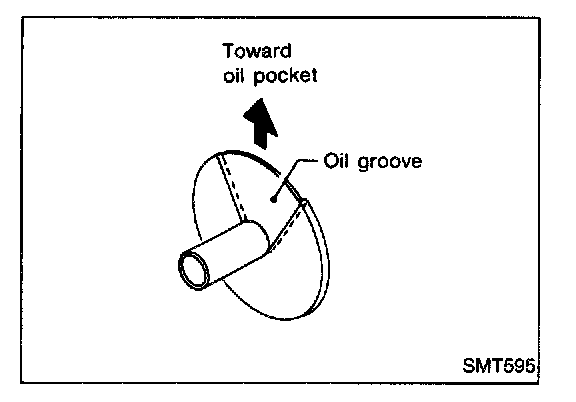

Note: Ensure the oil groove faces the oil pocket.

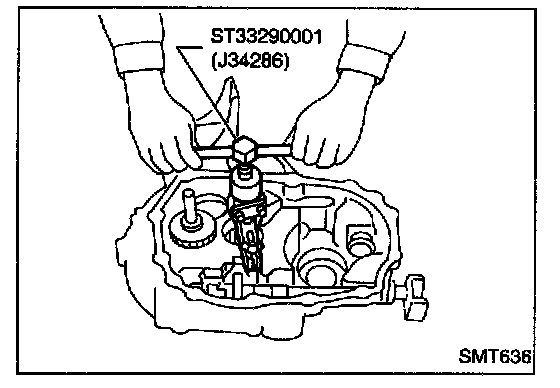

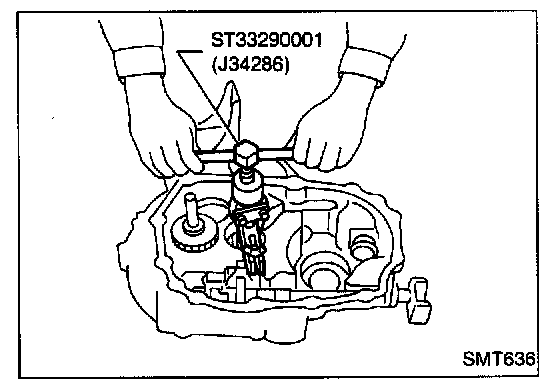

4. Install mainshaft front bearing outer race with tool.

Differential side bearing outer race. Adjustment

Mainshaft rear bearing outer race. Adjustment
