Striking Rod Oil Seal

1. Remove transaxle control rod from yoke.

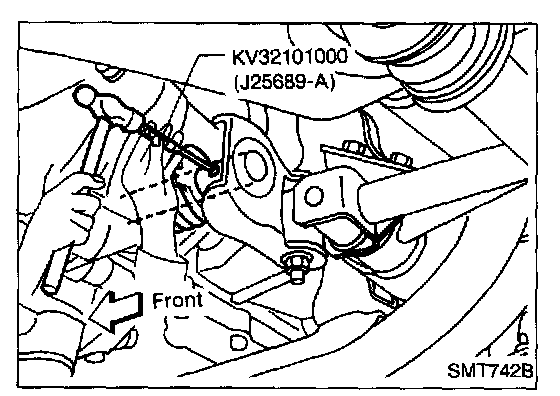

2. Remove retaining pin of yoke.

Note: Be careful not to damage boot.

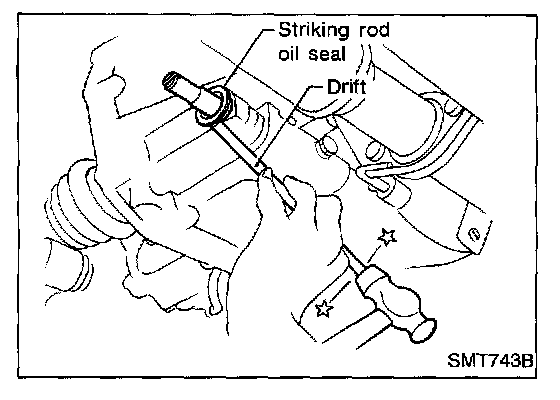

3. Remove striking rod oil seal.

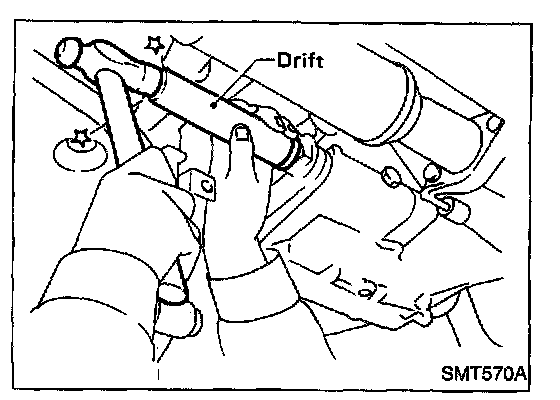

4. Install striking rod oil seal.

Note: Apply multi-purpose grease to seal lip of oil seal before installing.
