Final Drive - RL4F03A -

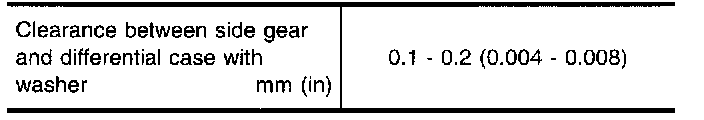

Differential Side Gear Clearance - RL4F03A:

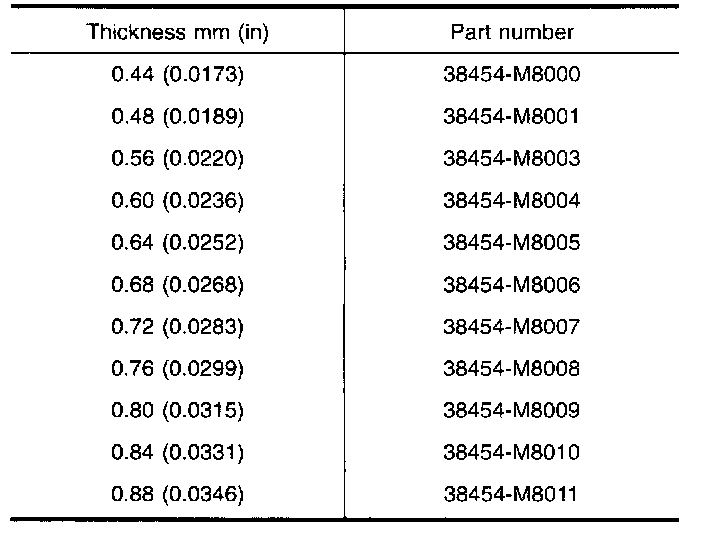

Differential Side Gear Thrust Washers - RL4F03A:



Differential Case End Play - RL4F03A:

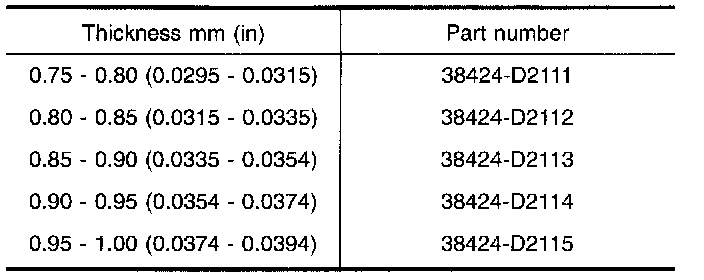

Differential Side Bearing Adjusting Shims - RL4F03A:
