Shift Interlock: Testing and Inspection

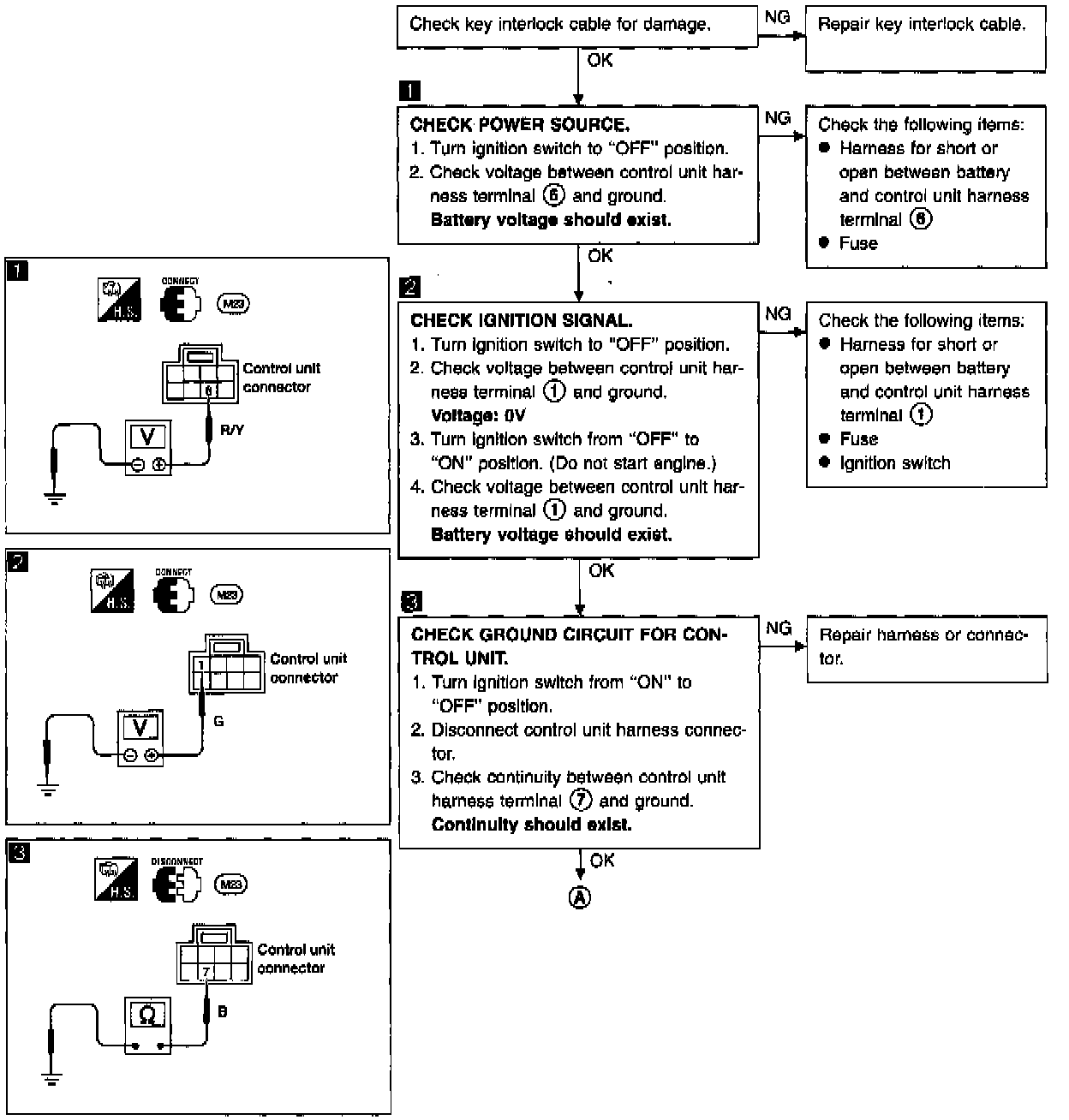

Fig. 4 BTSI Diagnostic Procedure (Part 1 Of 4):

PART 1 OF 4

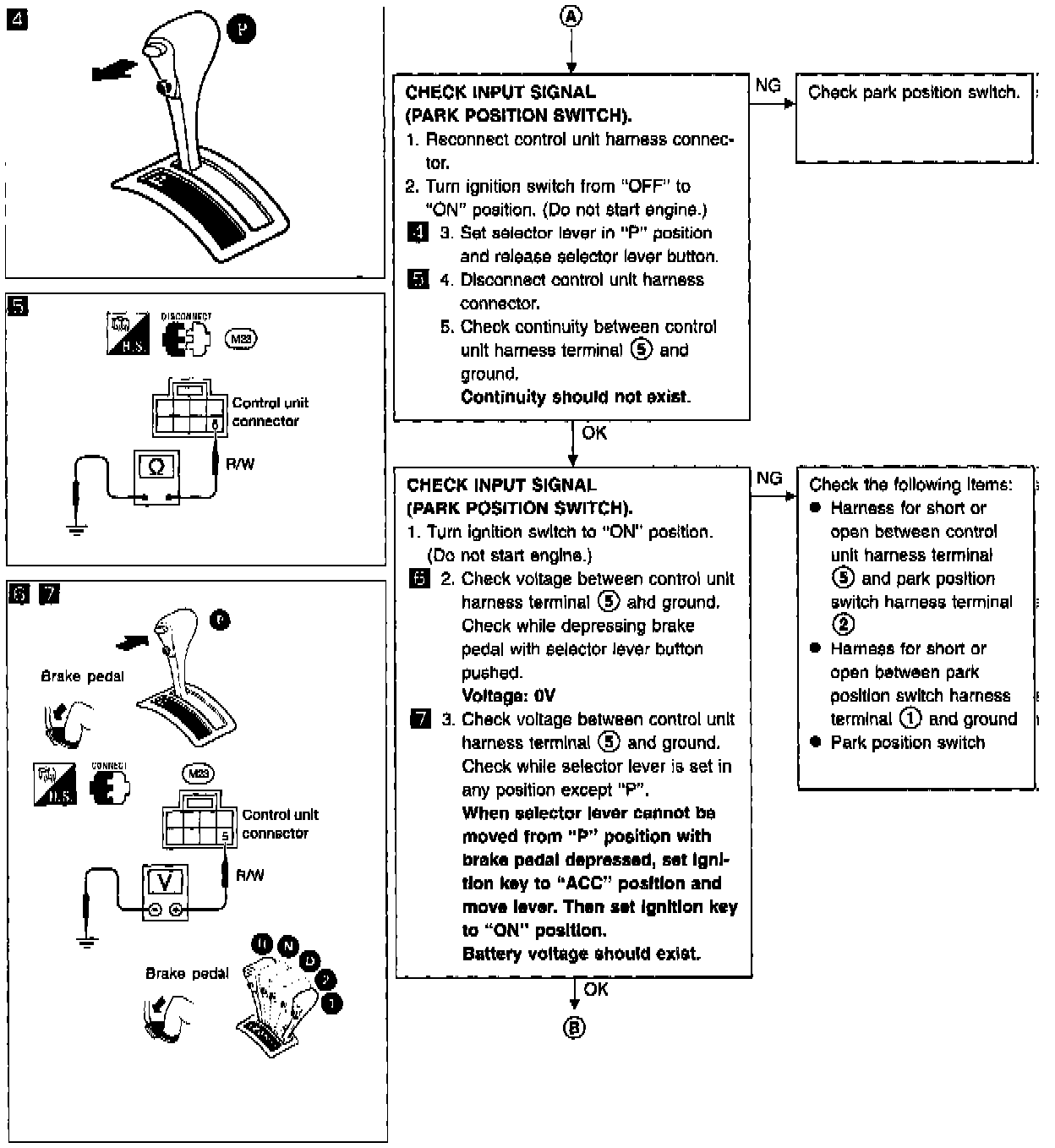

Fig. 4 BTSI Diagnostic Procedure (Part 2 Of 4):

PART 2 OF 4

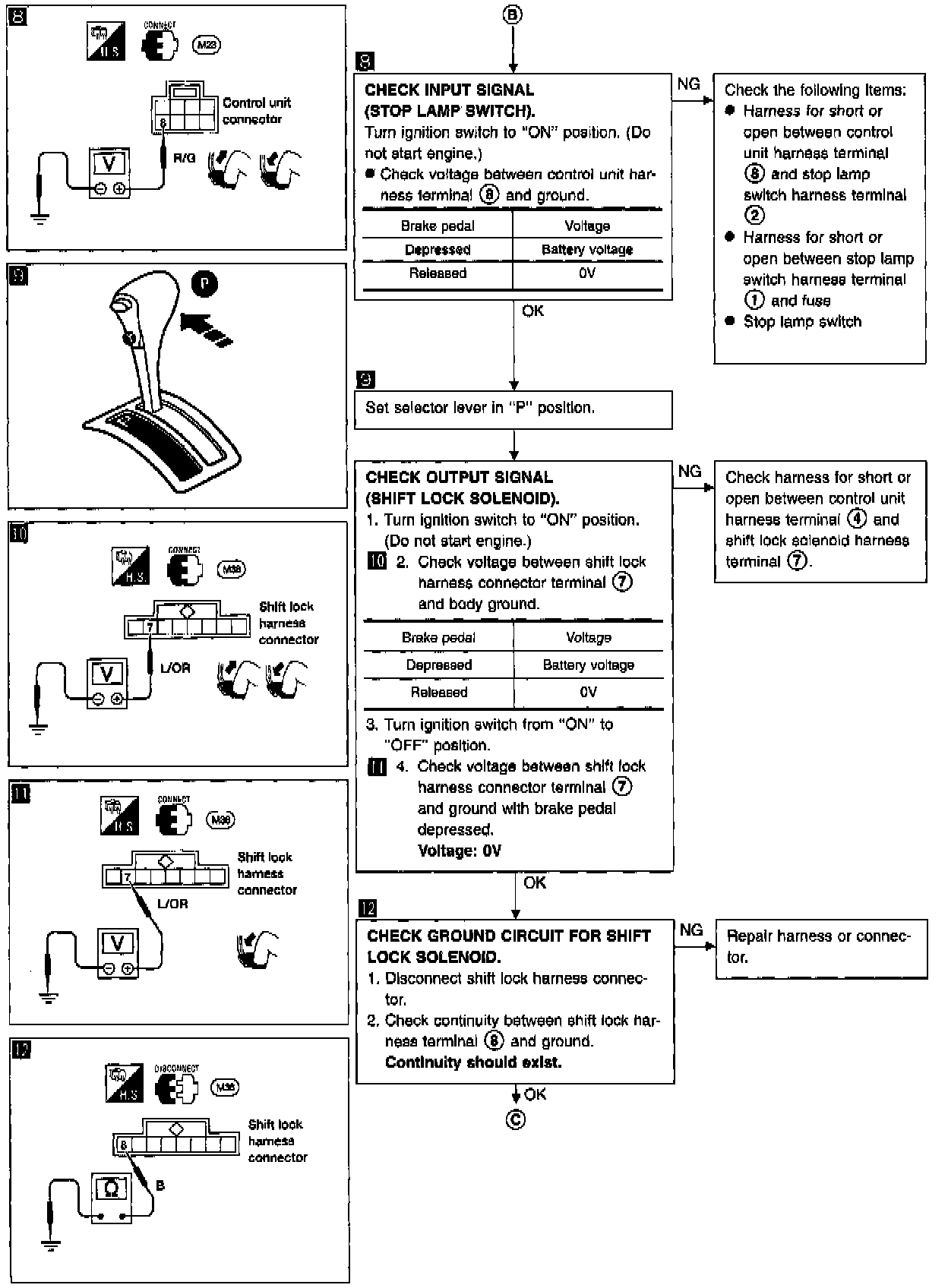

Fig. 4 BTSI Diagnostic Procedure (Part 3 Of 4):

PART 3 OF 4

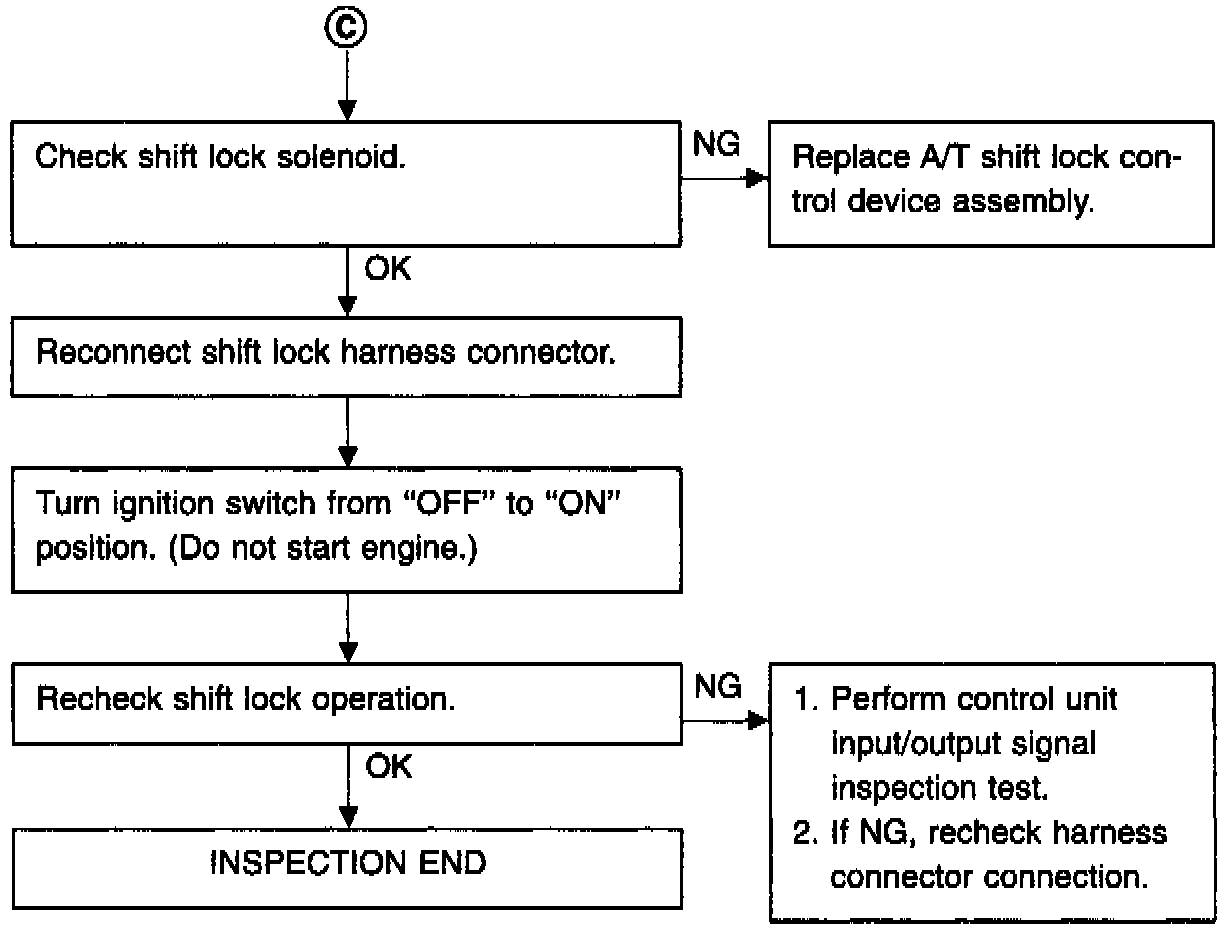

Fig. 4 BTSI Diagnostic Procedure (Part 4 Of 4):

PART 4 OF 4

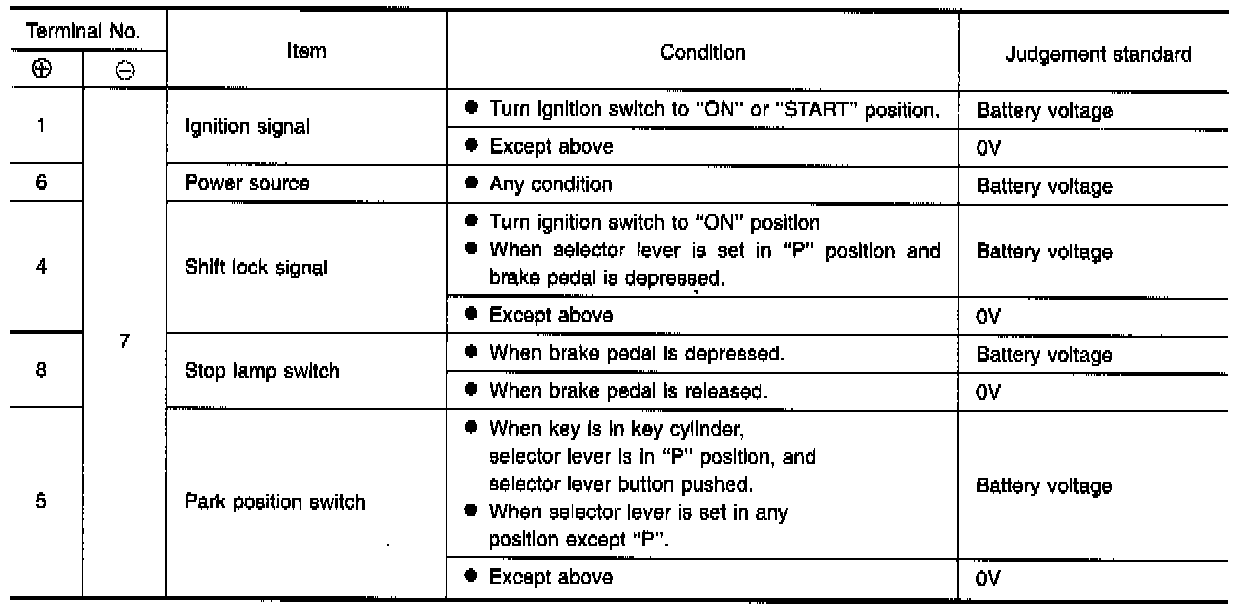

Fig. 5 Shift Lock Control Unit Inspection Table:

SHIFT LOCK CONTROL UNIT INSPECTION TABLE

Refer to Figs. 4 & 5. when troubleshooting the brake transmission shift interlock.
