Transaxle Side Seals, A/T

1. Remove drive shaft assemblies.

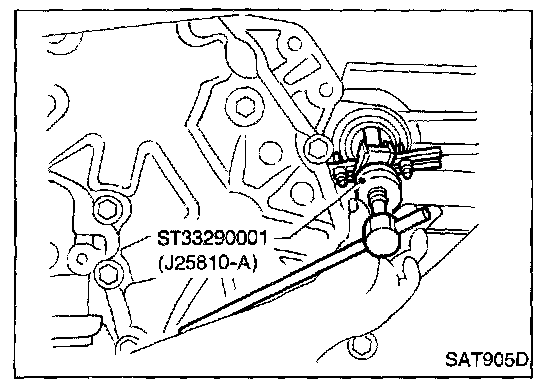

2. Remove oil seals.

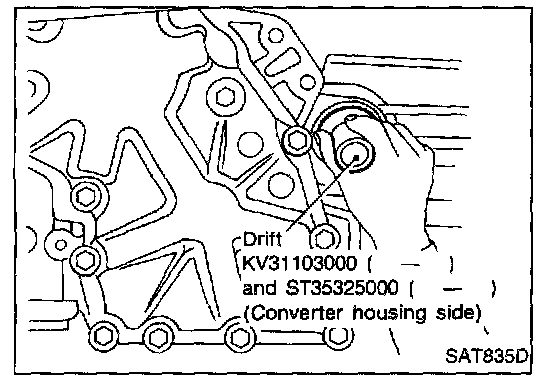

3. Install oil seals.
- Apply ATF to oil seal surface before installing.

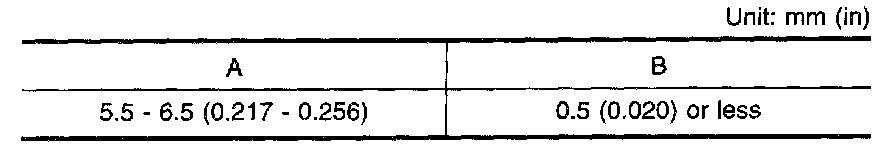

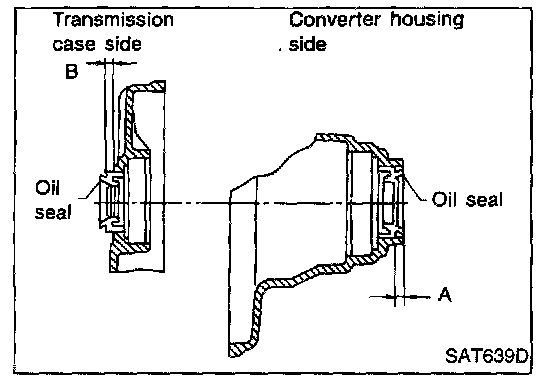

- Install oil seals so that dimensions "A" and "B" are within specifications.







4. Reinstall any part removed.
