A/T Cooler Hose - Revised parts

Classification:
AT97-005

Reference:
NTB97-038

Date:
May 28, 1997

1995-96 SENTRA/200SX A/T COOLER HOSE

APPLIED VEHICLES:
1995-96 Sentra (B14); USA-built only
1995-96 200SX (B14); USA-built only

APPLIED DATE:
Vehicles built from November 1994 - February 1996

APPLIED ENGINE # :
GA16DE

APPLIED TRANSMISSION # :
Vehicles with automatic transmission only

SERVICE INFORMATION

If service is required on a 1995-97 Sentra or 2OOSX to an A/T cooler hose or clamps, replace the hoses and clamps with the components in this bulletin.

SERVICE PROCEDURE

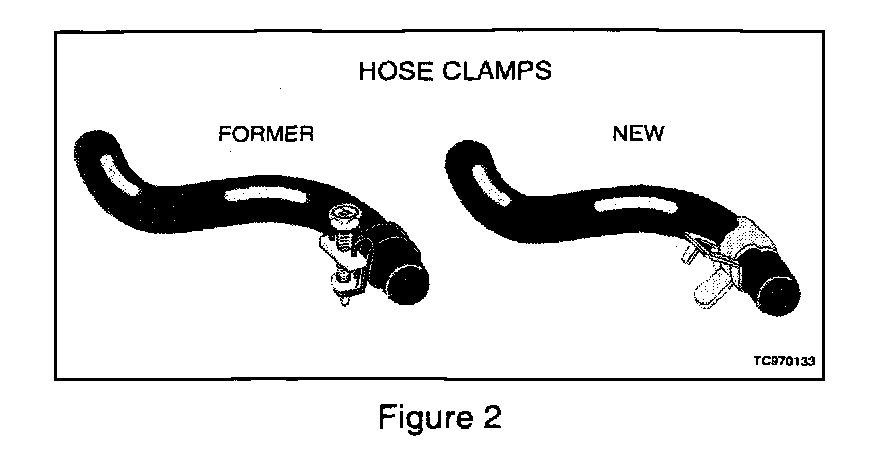

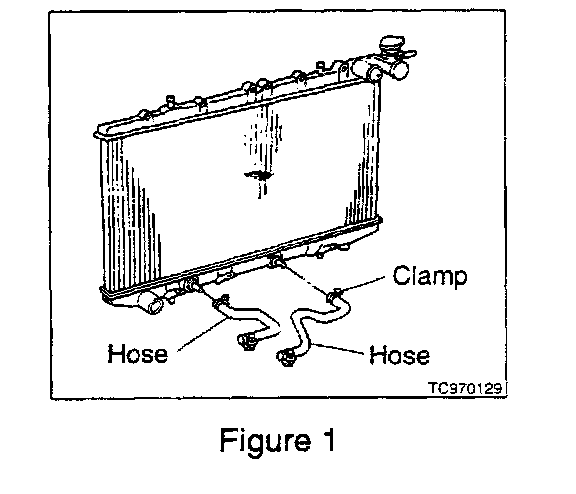

1. Replace both A/T cooler hoses and all clamps (see Figures 1 and 2) with the parts from the table.

NOTE:
You must replace these components as sets. Do not use the new hoses with the former clamps. Do not use the former hoses with the new clamps.

2. Make sure the ATF level on the dipstick is correct.

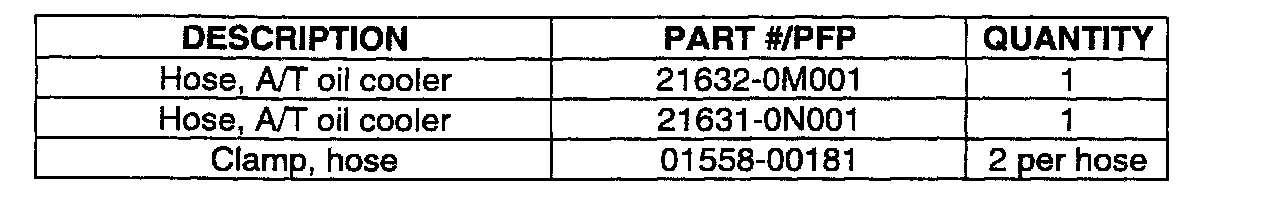

PARTS INFORMATION

CLAIMS INFORMATION

When applicable standard claims coding applies.
