Sun Visor - Contacting Inside Rear View Mirror

REFERENCE: PI95-011

DATE: May 17, 1995

1995 SENTRA/200SX SUN VISOR CONTACTING INSIDE REAR VIEW MIRROR

APPLIED VEHICLES: 1995 Sentra/200SX

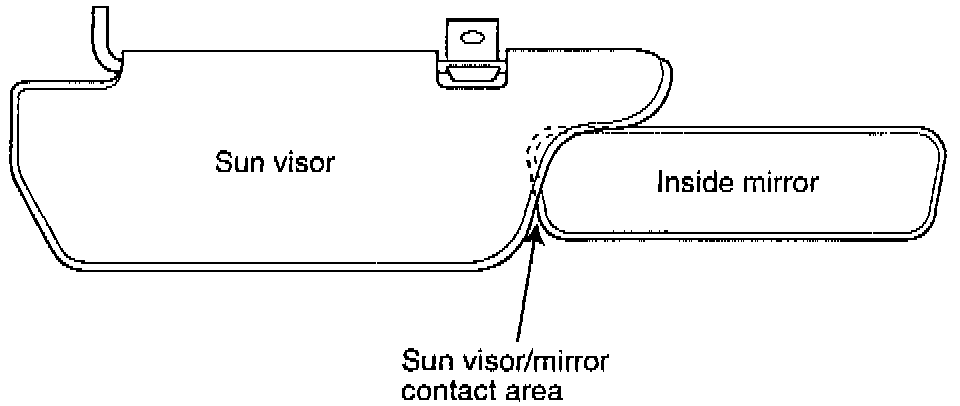

If a sun visor on a 1995 Sentra/200SX vehicle comes in contact with the inside rear view mirror when the sun visors are in use, follow the procedure below to readjust the rear view mirror.

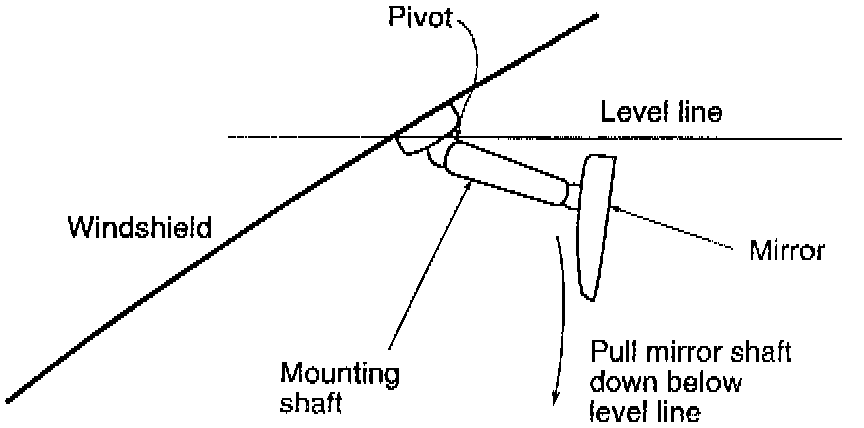

Grasp the inside mirror and carefully pull it down so that the mounting shaft is sloped downward from the windshield mounting (see illustration). Then readjust the mirror itself for proper viewing range.
