With Consult




OVERALL FUNCTION CHECK
This procedure can be used for checking the overall function of the park/neutral position switch circuit. During this check, a Diagnostic Trouble Code (DTC) might not be confirmed.
1. Turn ignition switch "ON".

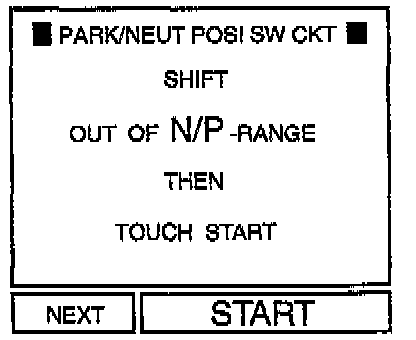

2. Perform "PARK/NEUT POSI SW CKT" in "FUNCTION TEST" mode with CONSULT.

OR

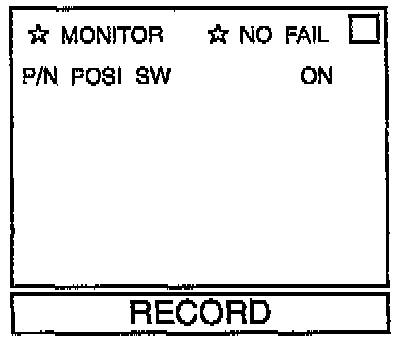

2. Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT.

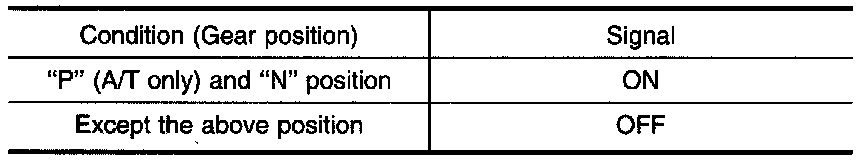

3. Check the "P/N POSI SW" signal in the these conditions.
