Without Scan Tool

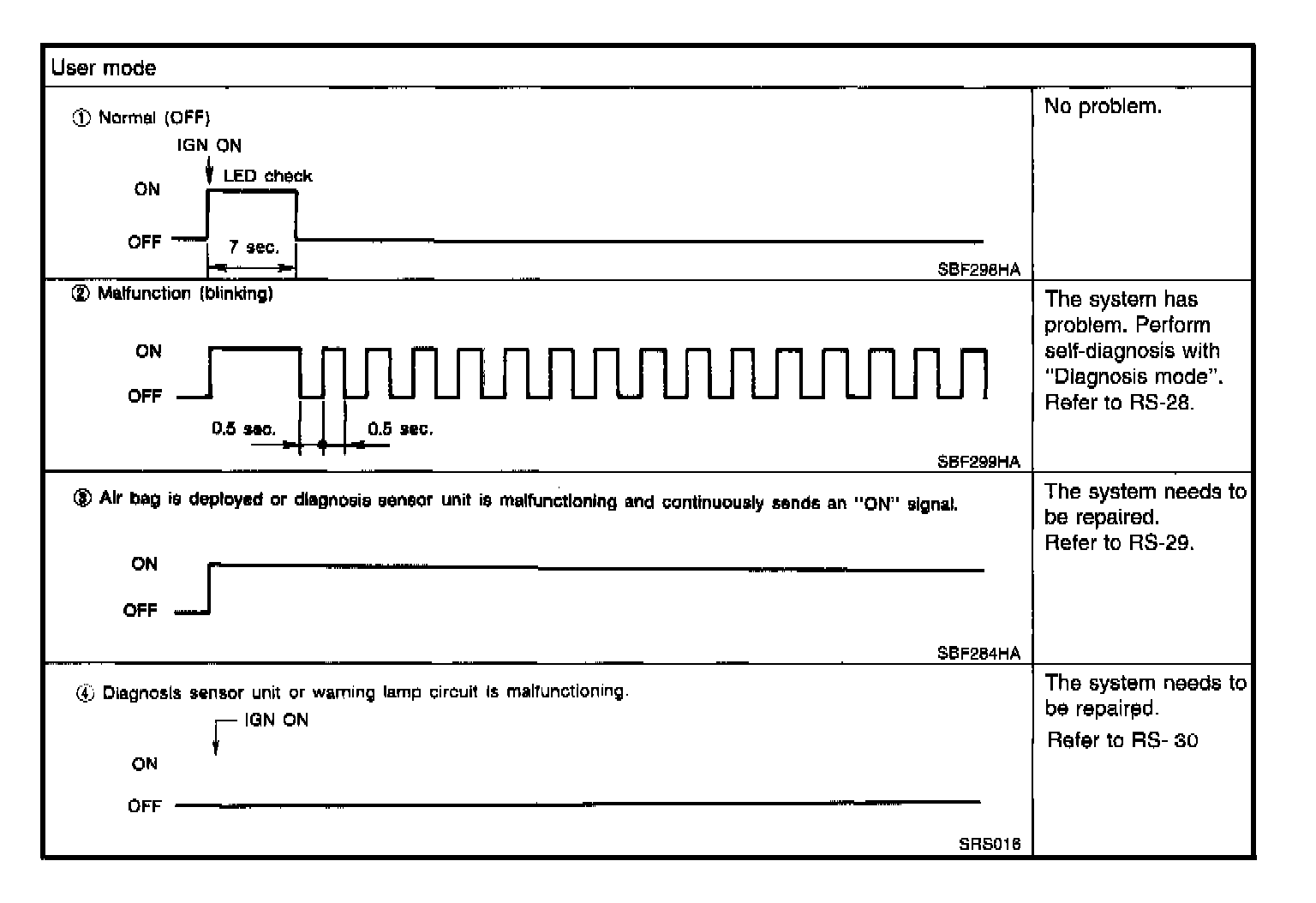

THE "AIR BAG" WARNING LAMP OPERATES AS SHOWN:






WARNING: When the "AIR BAG" warning lamp is flashing, compare the flash time to the chart.

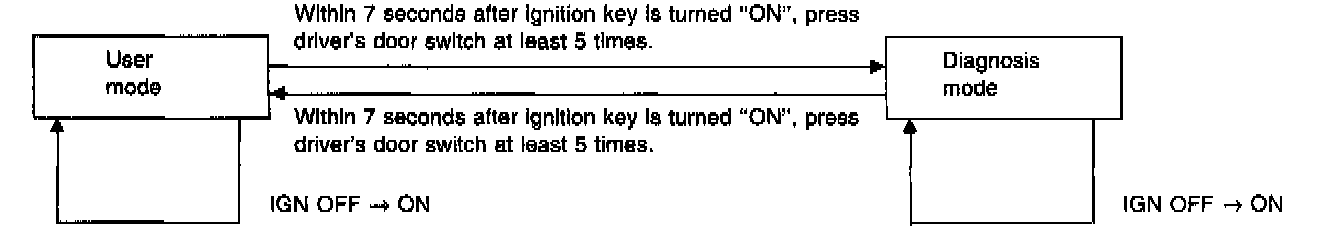

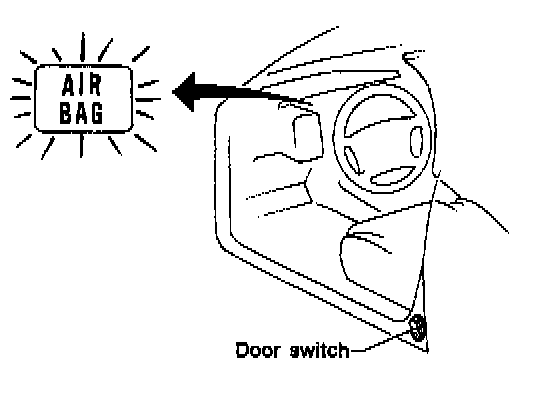

How to alternate self-diagnosis using the door switch.

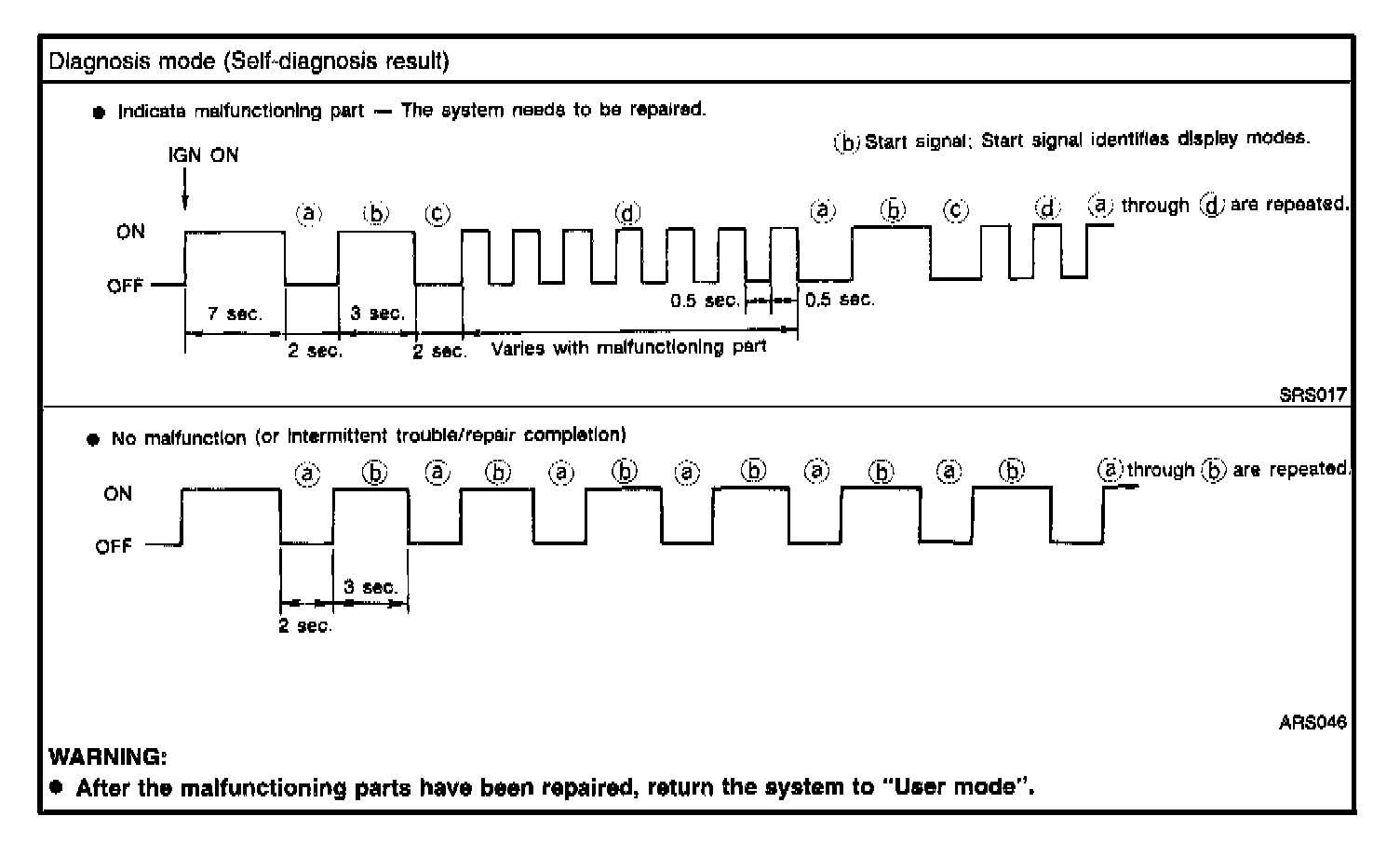

Problem codes are displayed in diagnosis mode (self-diagnosis results).

WARNING LAMP INDICATION

- After repairing malfunctioning part, use driver's door switch to return the system to user mode. This will clear self-diagnosis results from memory.
- If a malfunctioning part is not completely repaired, self-diagnosis results will not be cleared.





Self-diagnosis results in diagnosis mode can be identified by number of flashes. Refer to table for identifying the malfunctioning part.
